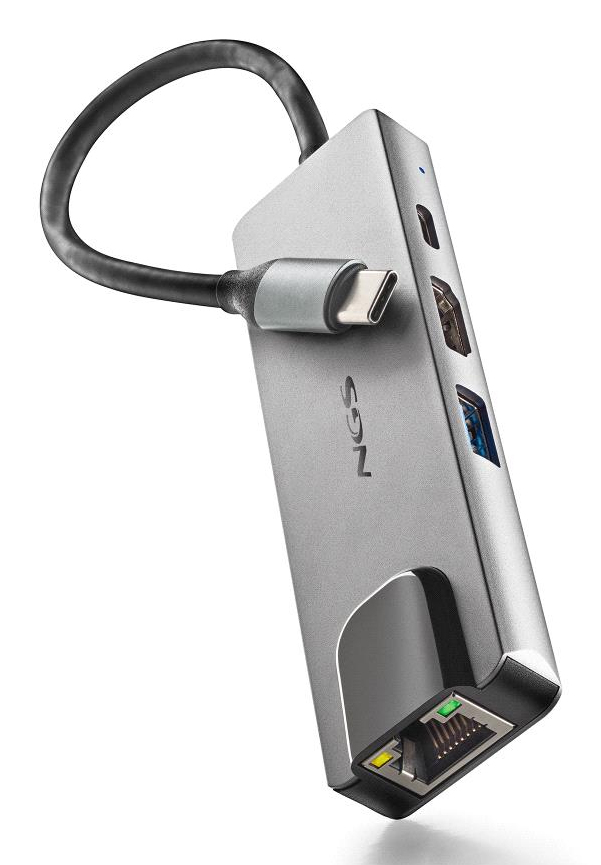

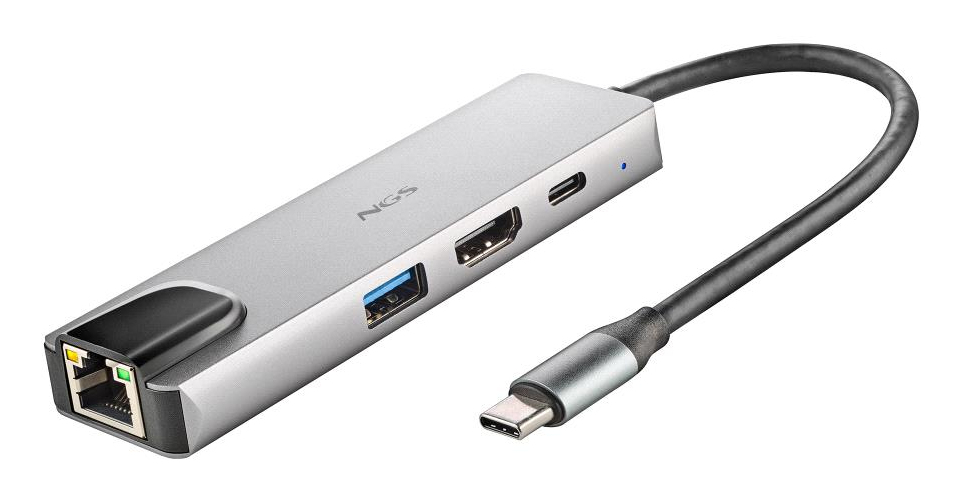

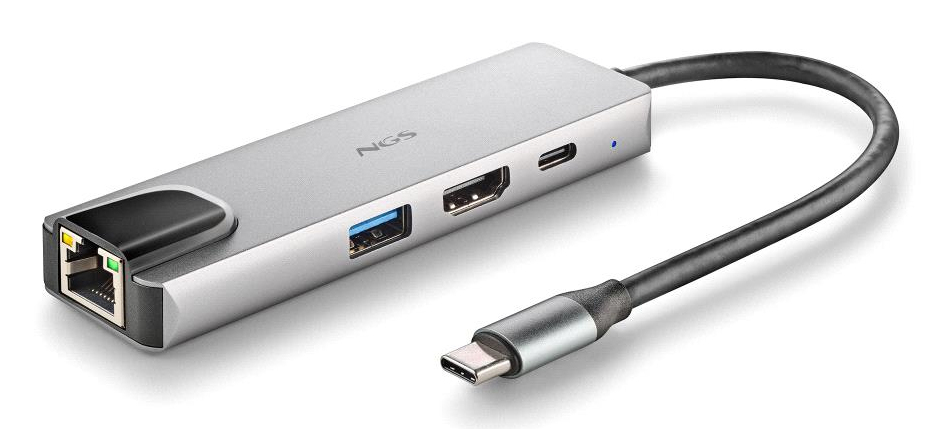

WONDER DOCK SUPRA
Model NGS-HUB-0140EAN 8435430625646
31 specifications
- Weight46 g
- ColourAluminium, Black
- Ports quantity4
- Data transfer rate5000 Mbit/s
- Ethernet interface typeGigabit Ethernet
- Mac operating systems supportedYes
Overview
- Weight
- 46 g
- Colour
- Aluminium, Black
- Ports quantity
- 4
- Data transfer rate
- 5000 Mbit/s
- Ethernet interface type
- Gigabit Ethernet
- Mac operating systems supported
- Yes
- Brand
- NGS
- Category
- Interface Hub
- Model
- NGS-HUB-0140
- Part number
- NGS-HUB-0140
- EAN / UPC
- 8435430625646
- Also known as
- NGS WONDER DOCK SUPRA
Specifications
31 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 4 |
| Host interface | USB 2.0 Type-C |

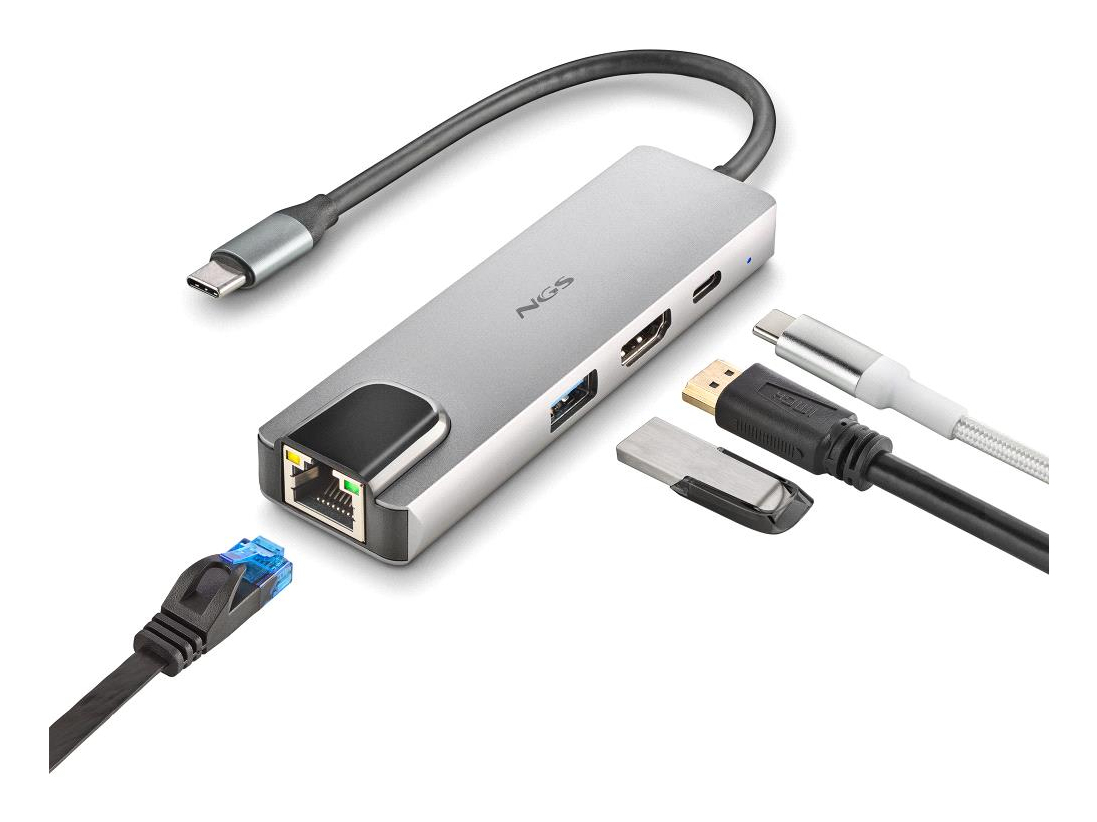

| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C |
| USB 2.0 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 5000 Mbit/s |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Housing material | Aluminium |
| Product colour | Aluminium, Black |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| LED indicators | Yes |
| Plug and Play | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 108 mm |
| Depth | 32 mm |
| Height | 14 mm |
| Weight | 46 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 68 mm |
| Package depth | 30 mm |
| Package height | 146 mm |

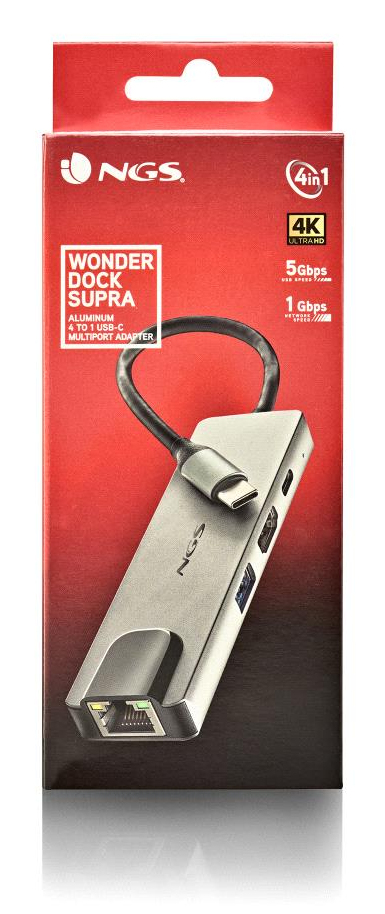

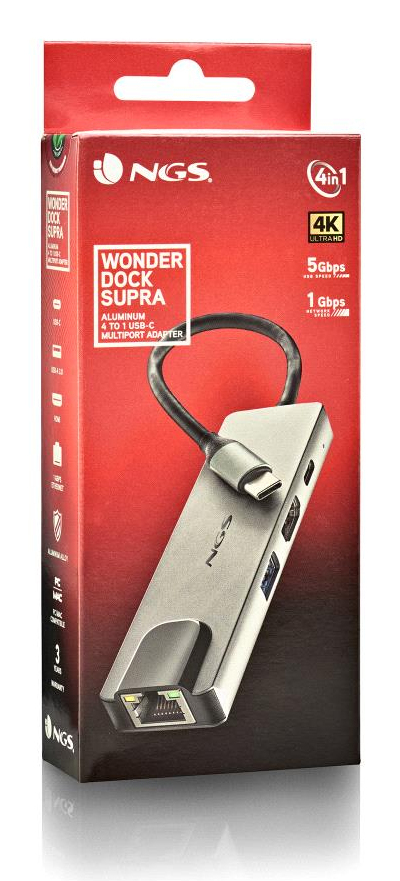

| Package type | Hanging box |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
