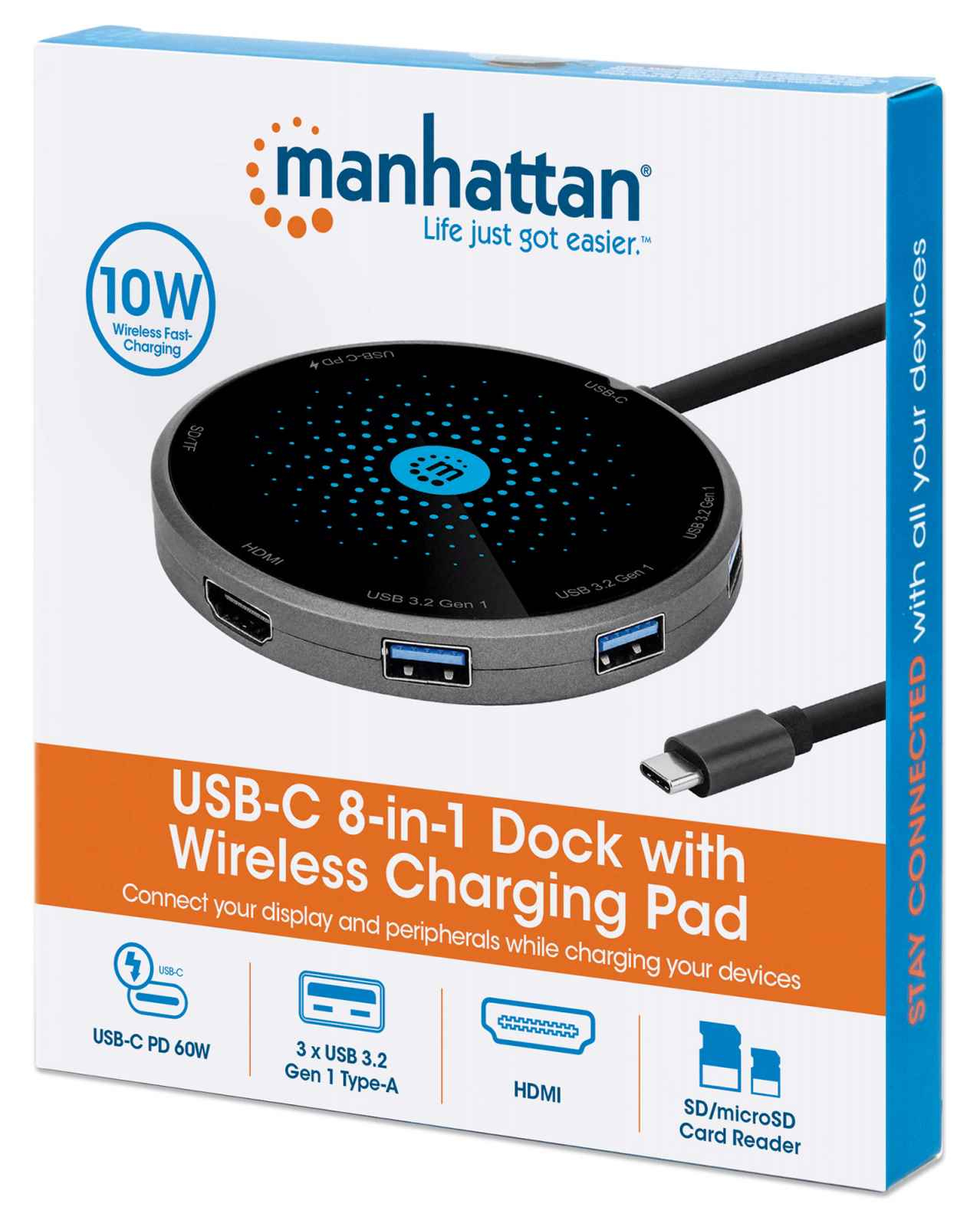

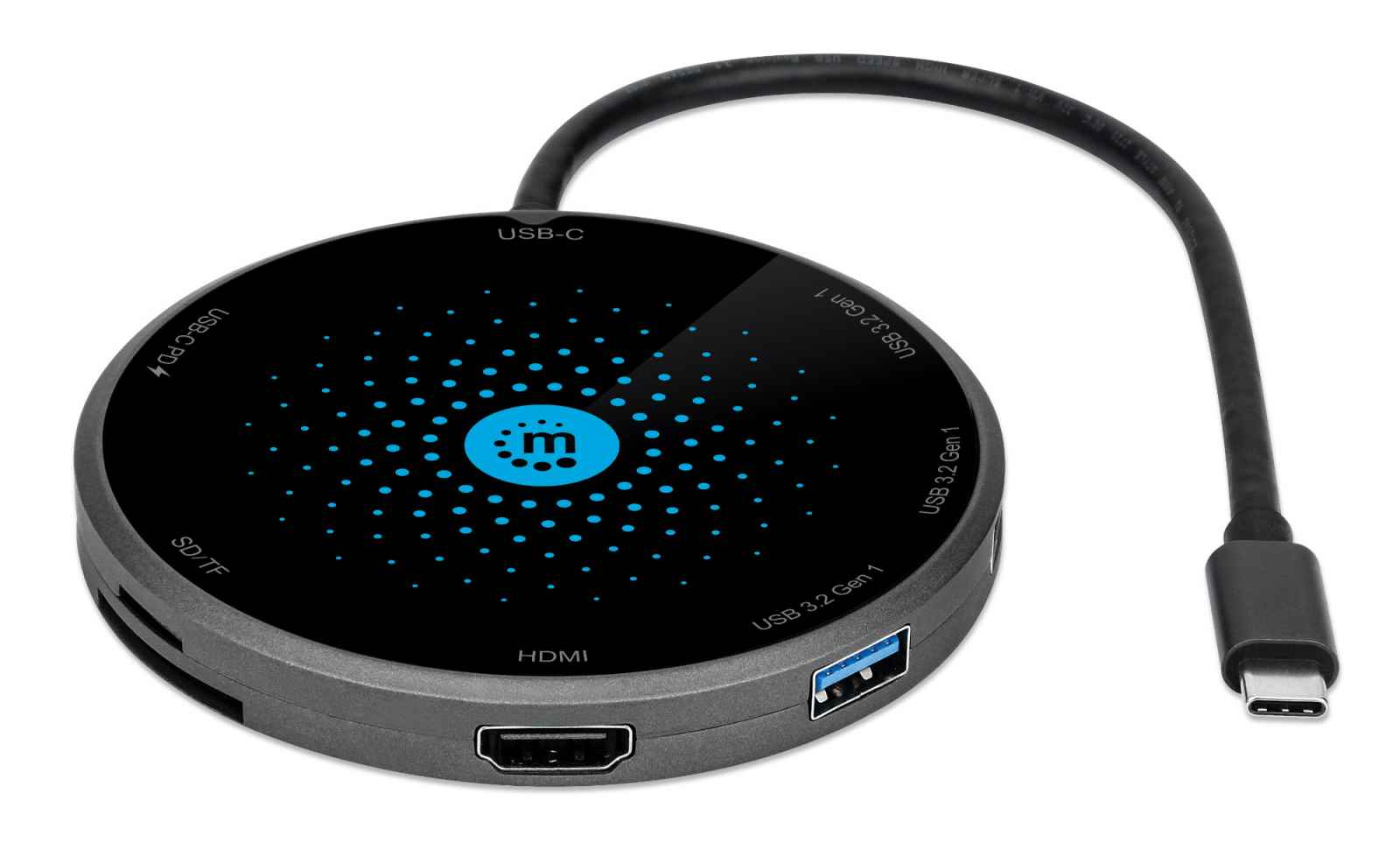

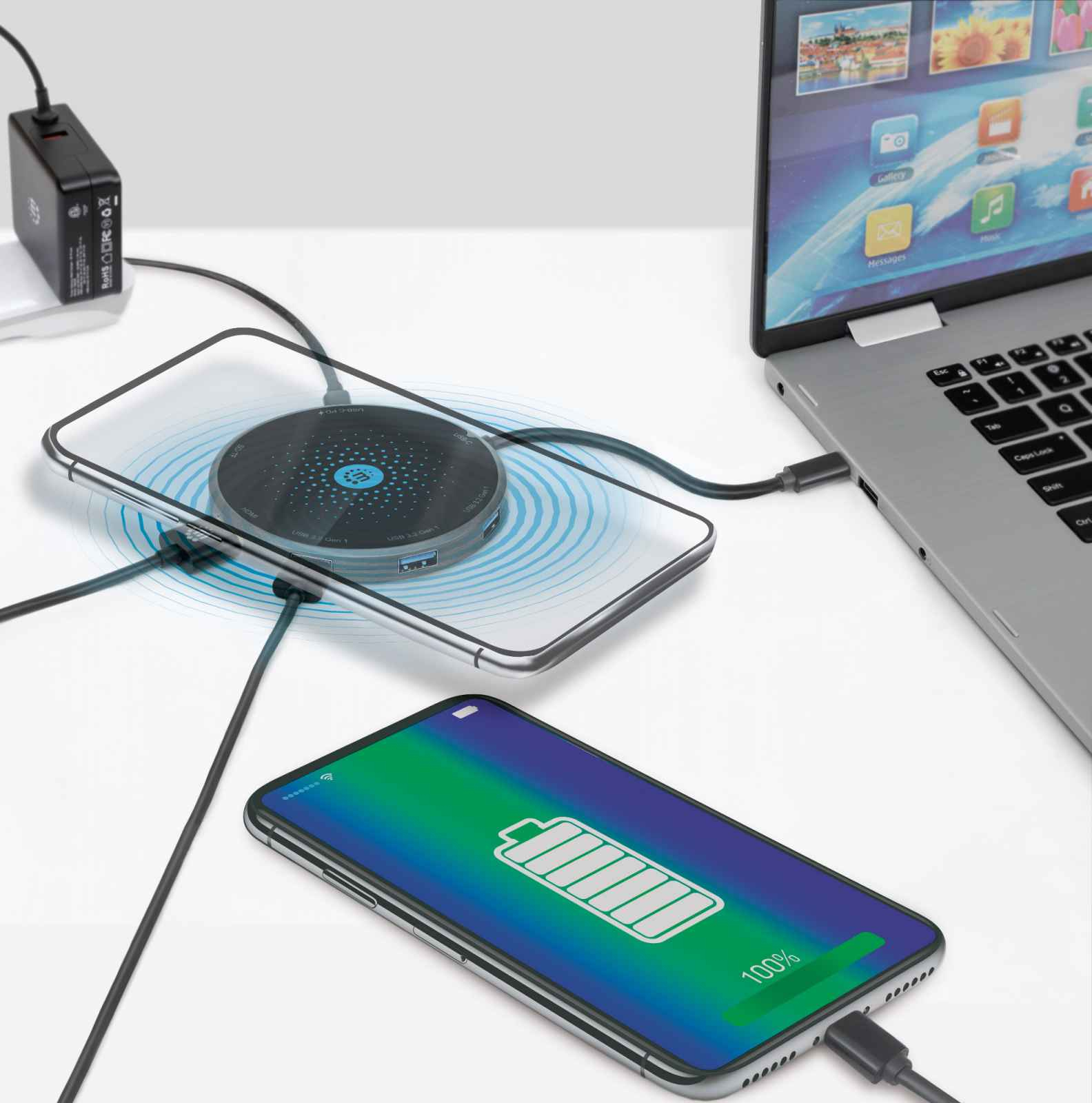

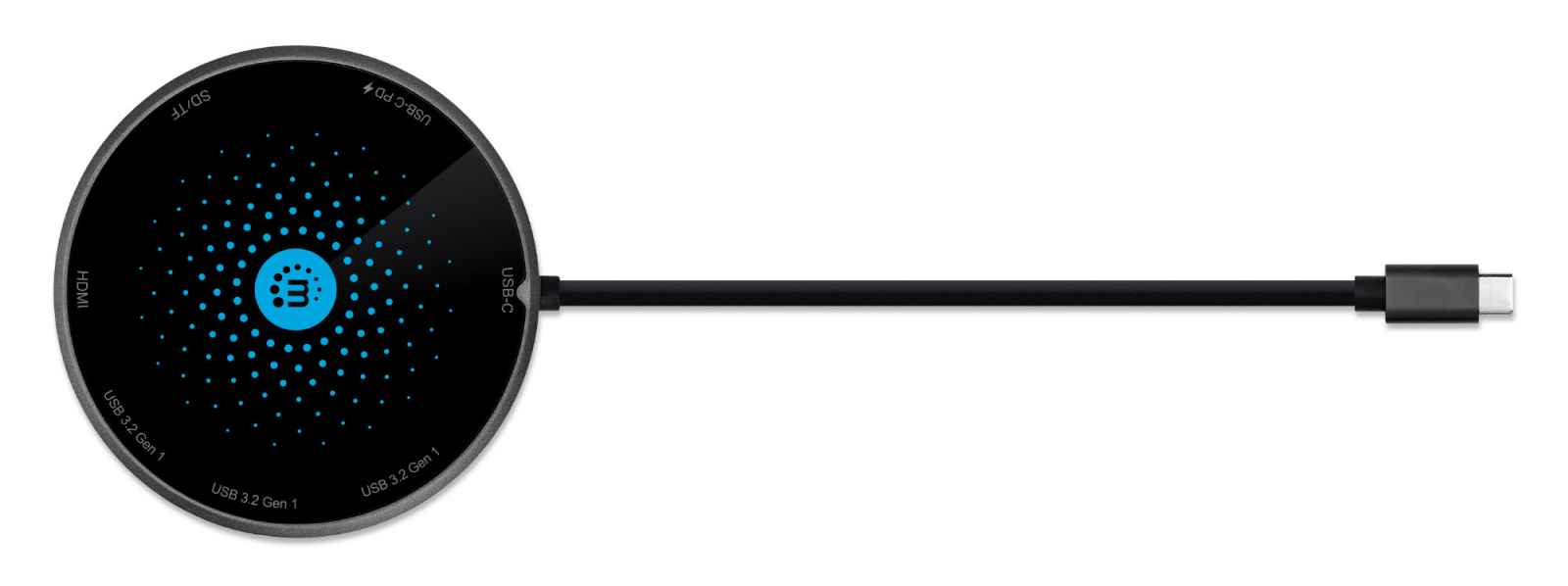

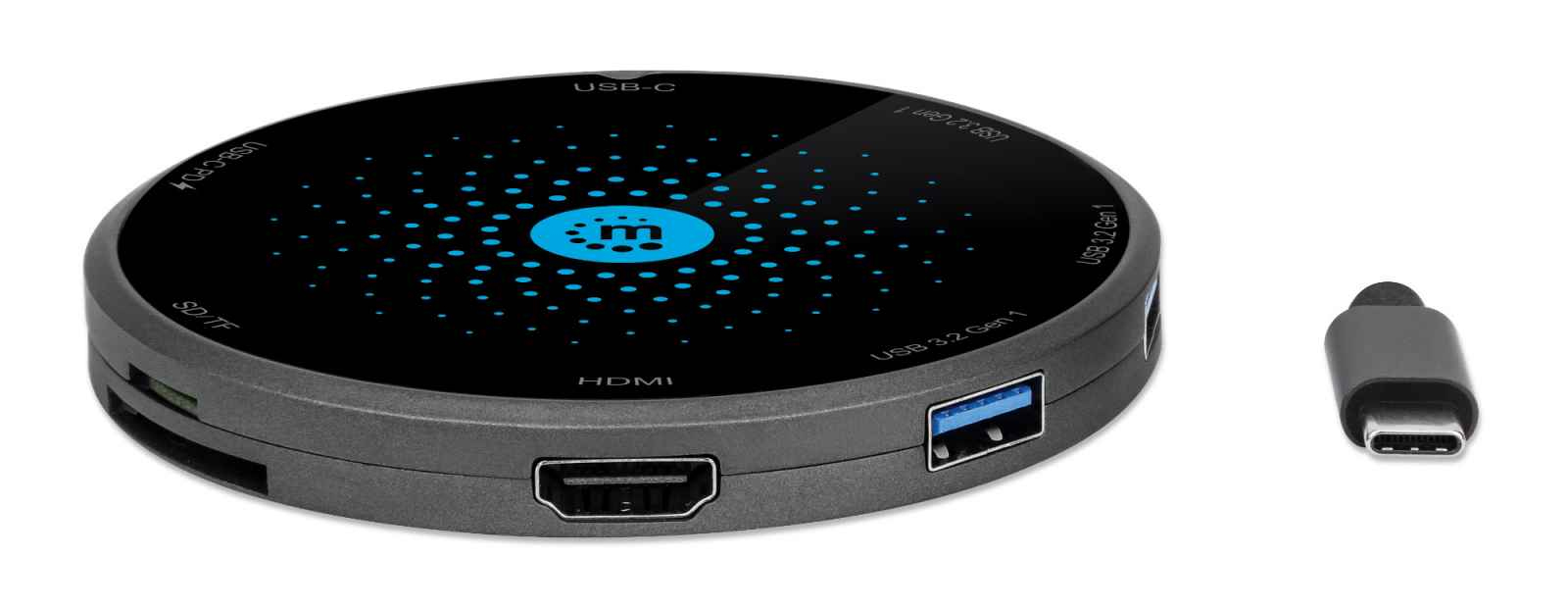

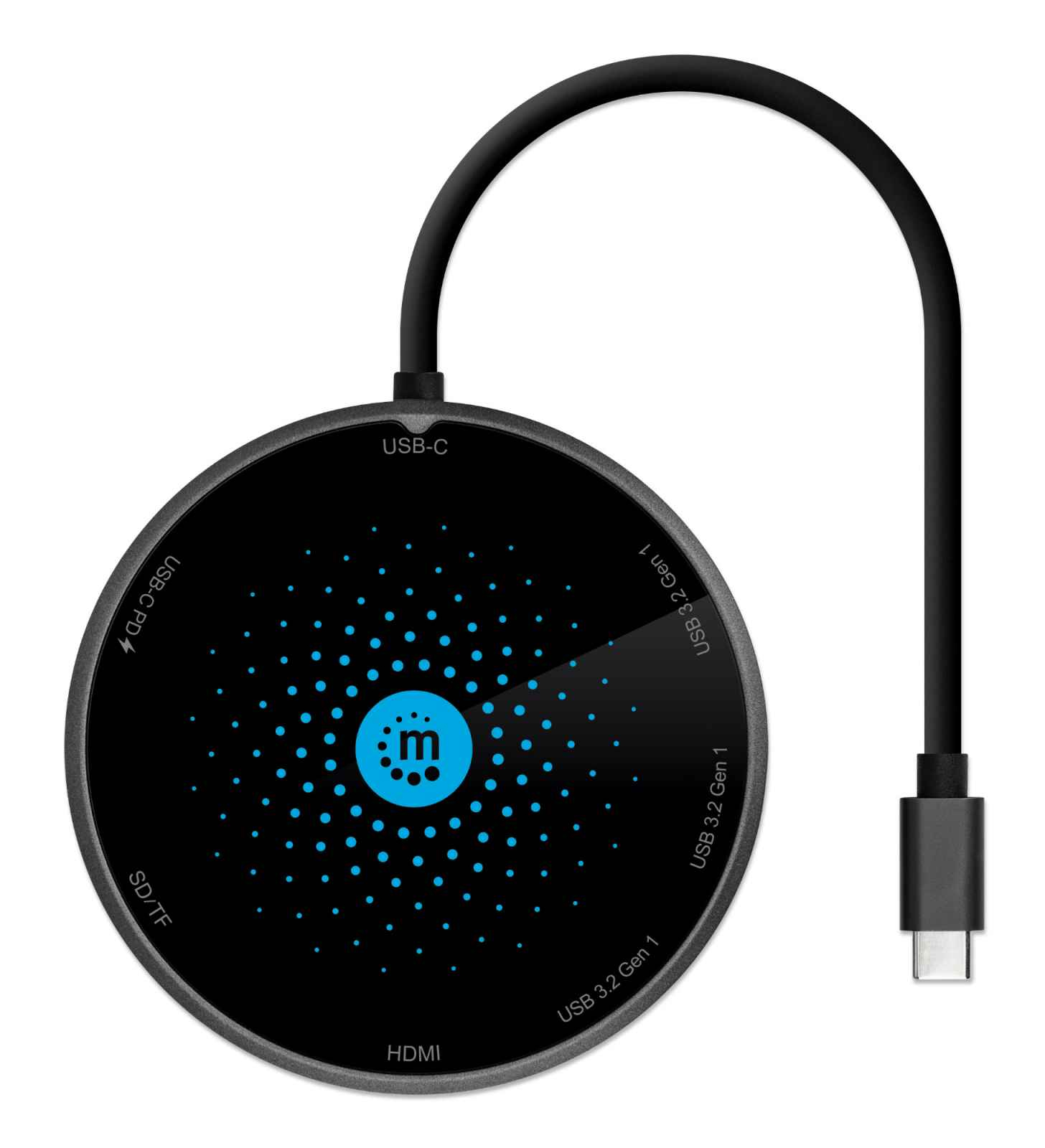

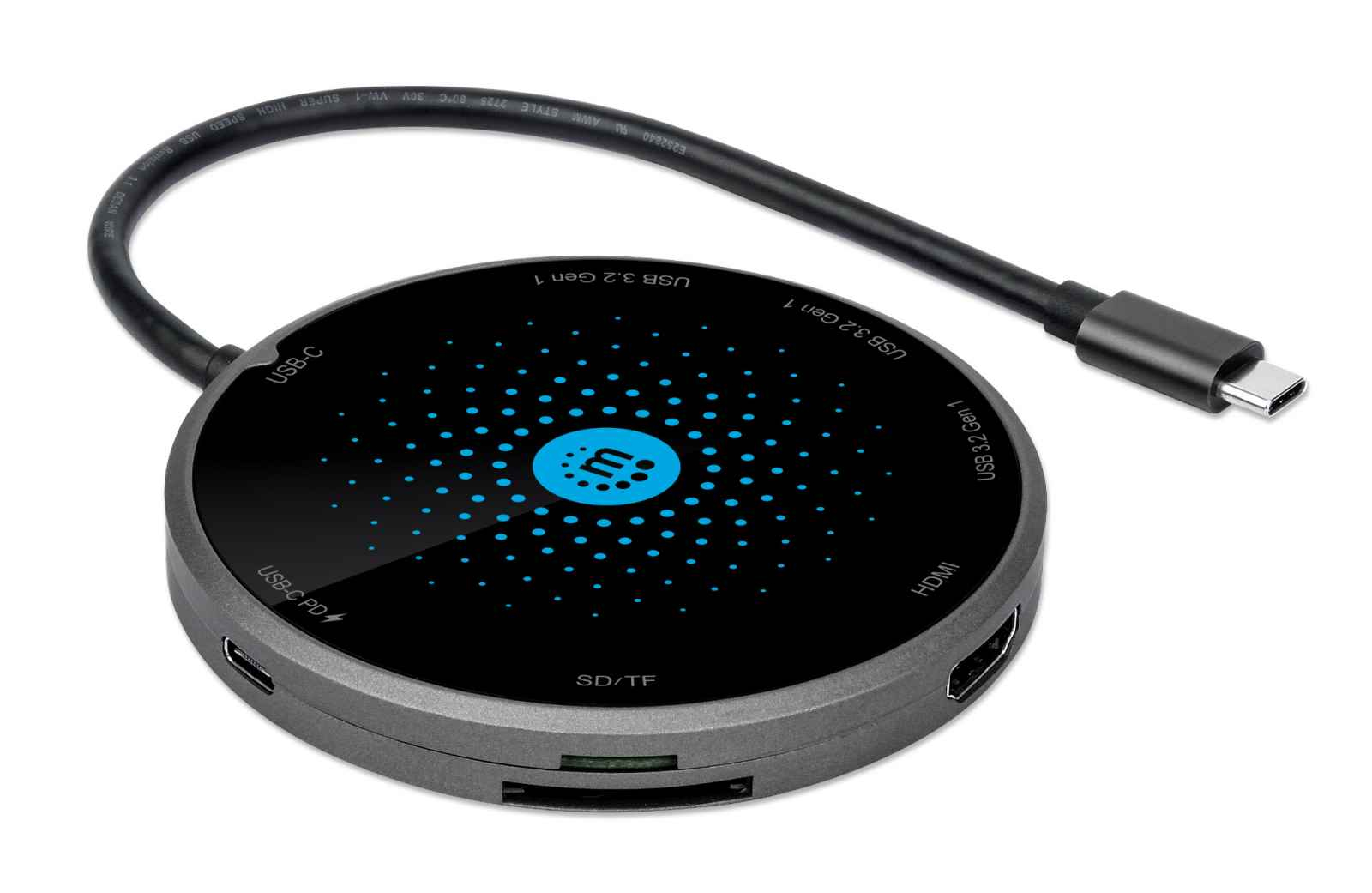

USB-C Dock/Hub with Card Reader and Wireless Charging Pad, Ports (x5): USB-C to HDMI, USB-A (x3) and USB-C, With Power Delivery (60W) to USB-C Port (N
Manhattan

USB-C Dock/Hub with Card Reader and Wireless Charging Pad, Ports (x5): USB-C to HDMI, USB-A (x3) and USB-C, With Power Delivery (60W) to USB-C Port (N

Model 166560EAN 766623166560

46 specifications
  • Weight154 g
  • ColourBlack
  • Ports quantity7
  • Data transfer rate5000 Mbit/s
  • Power supply typeUSB
  • Mac operating systems supportedYes
See all specifications

Overview

Weight
154 g
Colour
Black
Ports quantity
7
Data transfer rate
5000 Mbit/s
Power supply type
USB
Mac operating systems supported
Yes
Brand
Manhattan
Model
166560
Part number
166560
EAN / UPC
766623166560
Also known as
Manhattan USB-C Dock/Hub with Card Reader and Wireless Charging Pad, Ports (x5): USB-C to HDMI, USB-A (x3) and USB-C, With Power Delivery (60W) to USB-C Port (N

Specifications

46 specifications in 10 groups

Ports & interfaces

Ports quantity7
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfacesHDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version1.4
Card reader slot2
Compatible memory cardsMMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, SD, SDHC, SDXC

Features

Data transfer rate5000 Mbit/s
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Maximum resolution (HDMI)3840 x 2160 pixels
Housing materialTempered glass, Thermoplastic, Zinc
Product colourBlack
HDCPYes
HDCP version2.2
USB Power Delivery (USB PD)Yes
USB Power Delivery up to60 W
Fast charging technologyQuick Charge 2.0, Quick Charge 3.0
Overcurrent protectionYes
Overload protectionYes
Overheat protectionYes
HD type4K Ultra HD
Cable length0.2 m
Plug and PlayYes
CertificationEC FCC RoHS

Power

Power supply typeUSB
Output voltage5/9/12/15/19/20 V
Output current3 A

System requirements

Windows operating systems supportedWindows 10, Windows 7, Windows 8.1
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedChromeOS

Weight & dimensions

Width94 mm
Depth94 mm
Height12 mm
Weight154 g

Packaging data

Quantity per pack1 pc(s)
Package typeBox

Packaging content

ManualYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 90%

Logistics data

Harmonized System (HS) code84719000

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Warranty period3 year(s)
