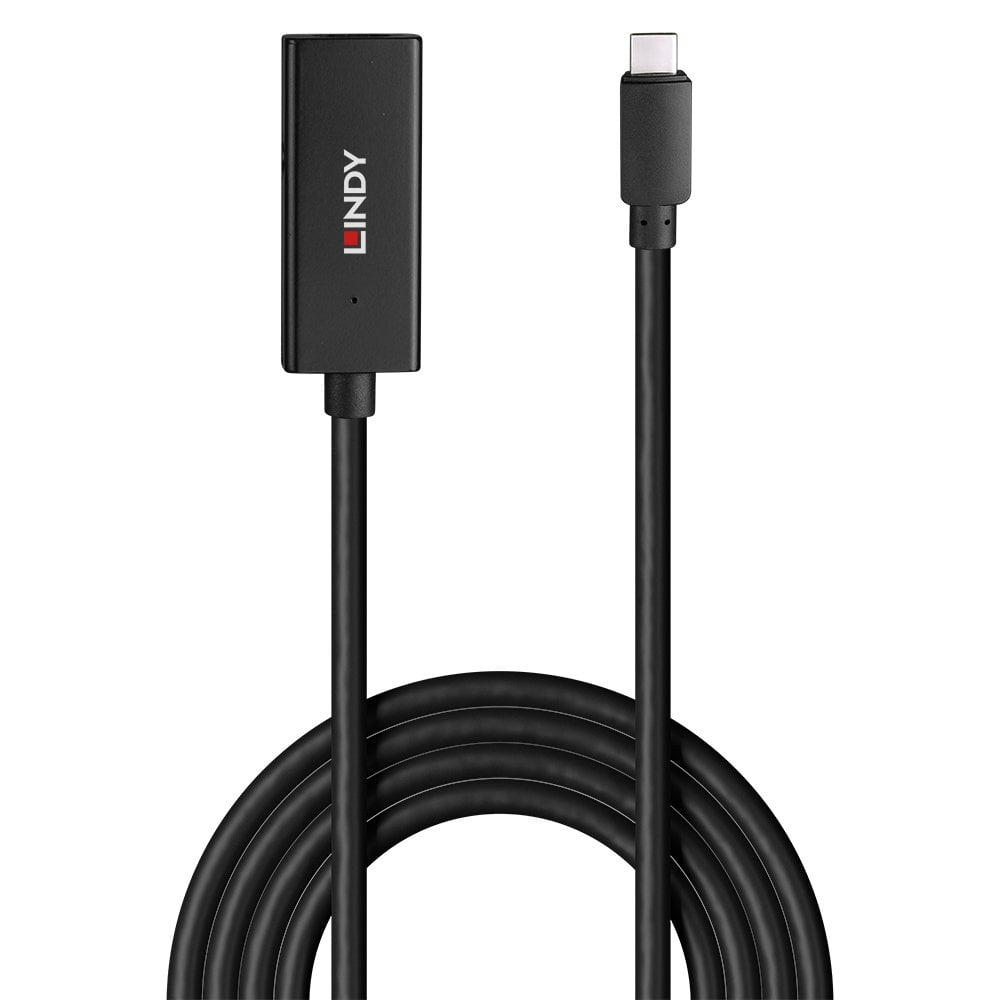

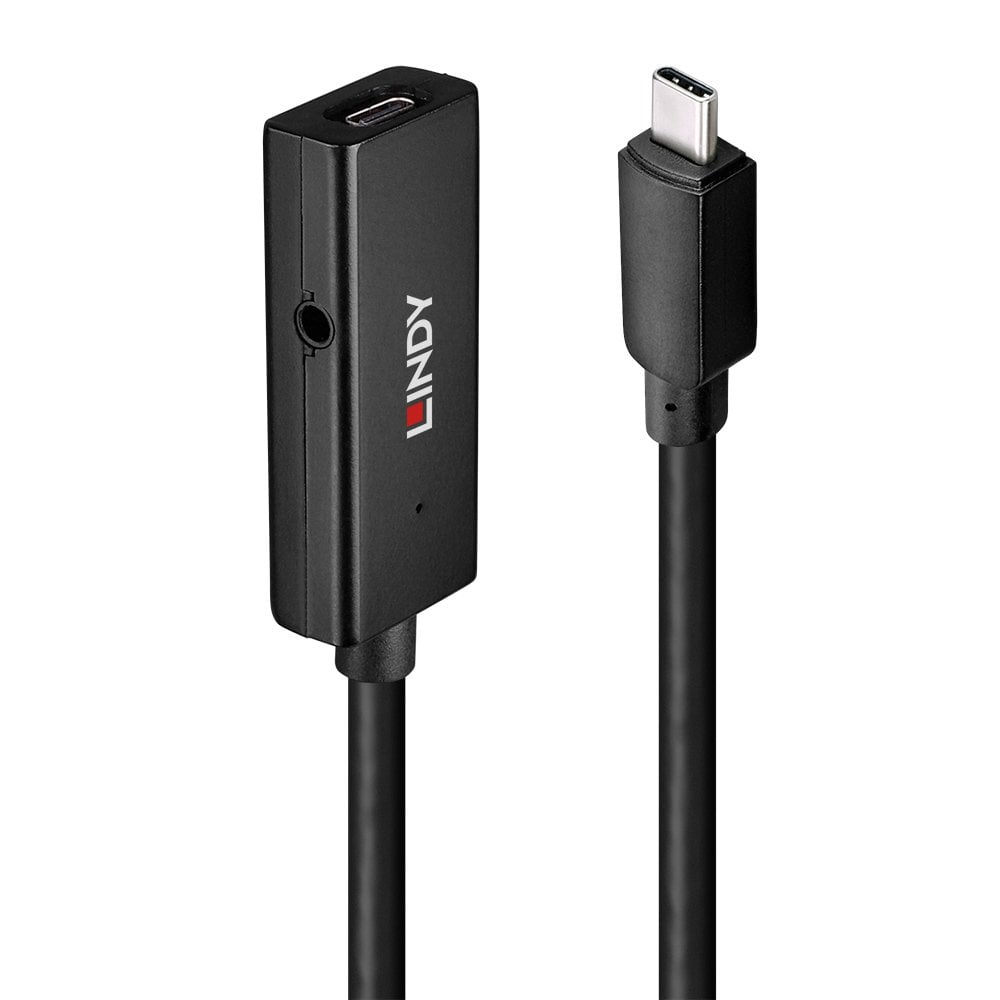

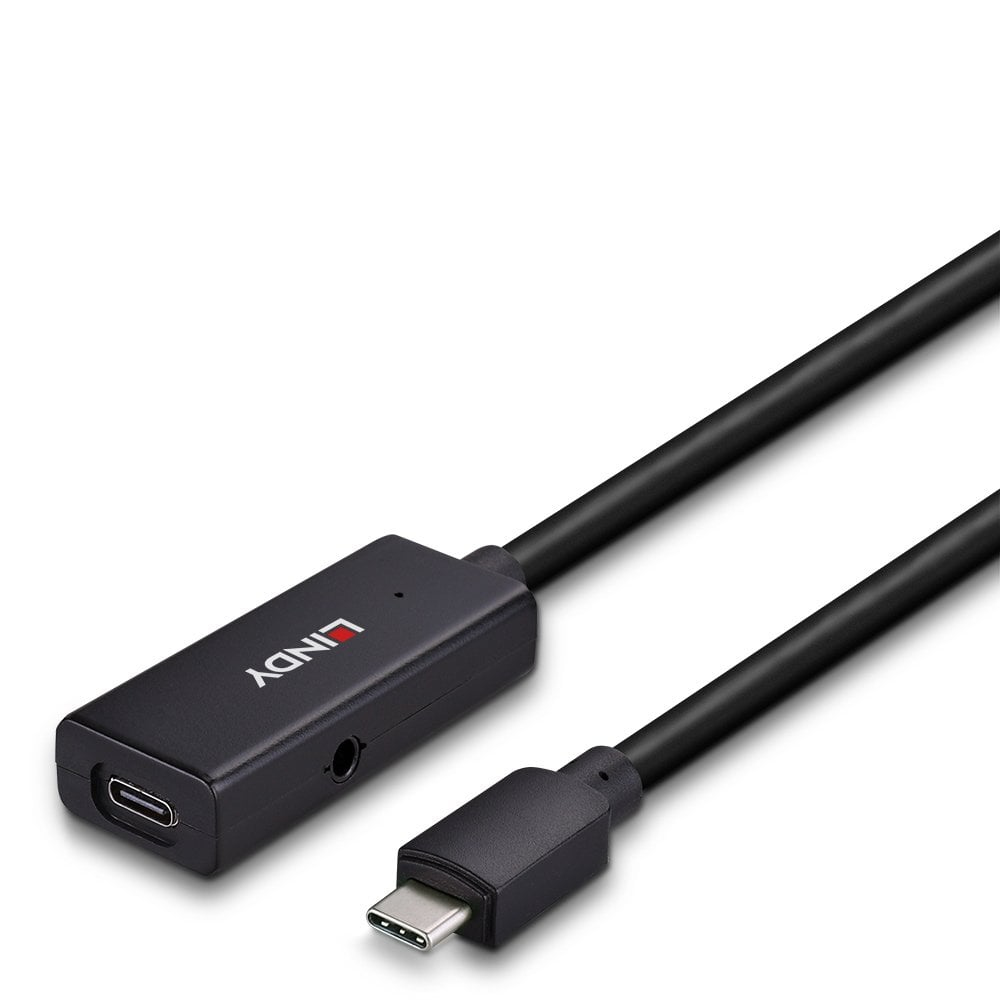

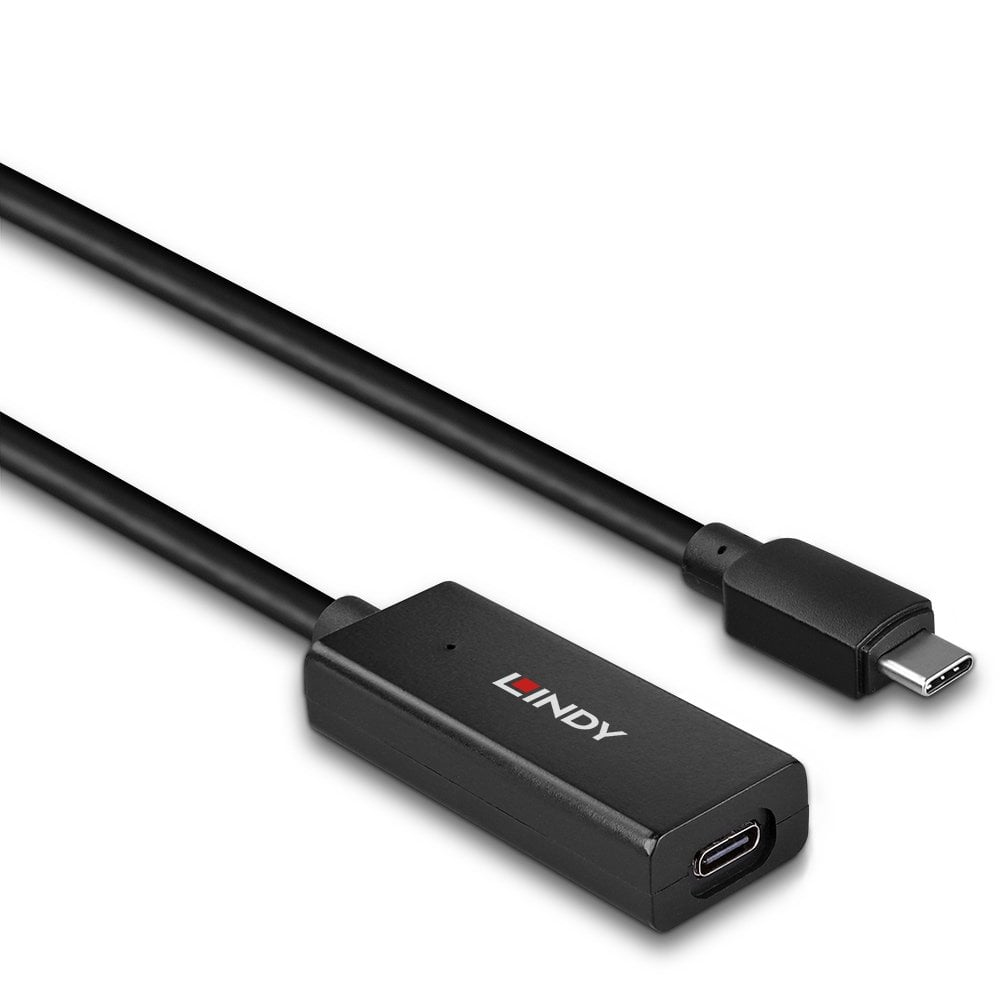

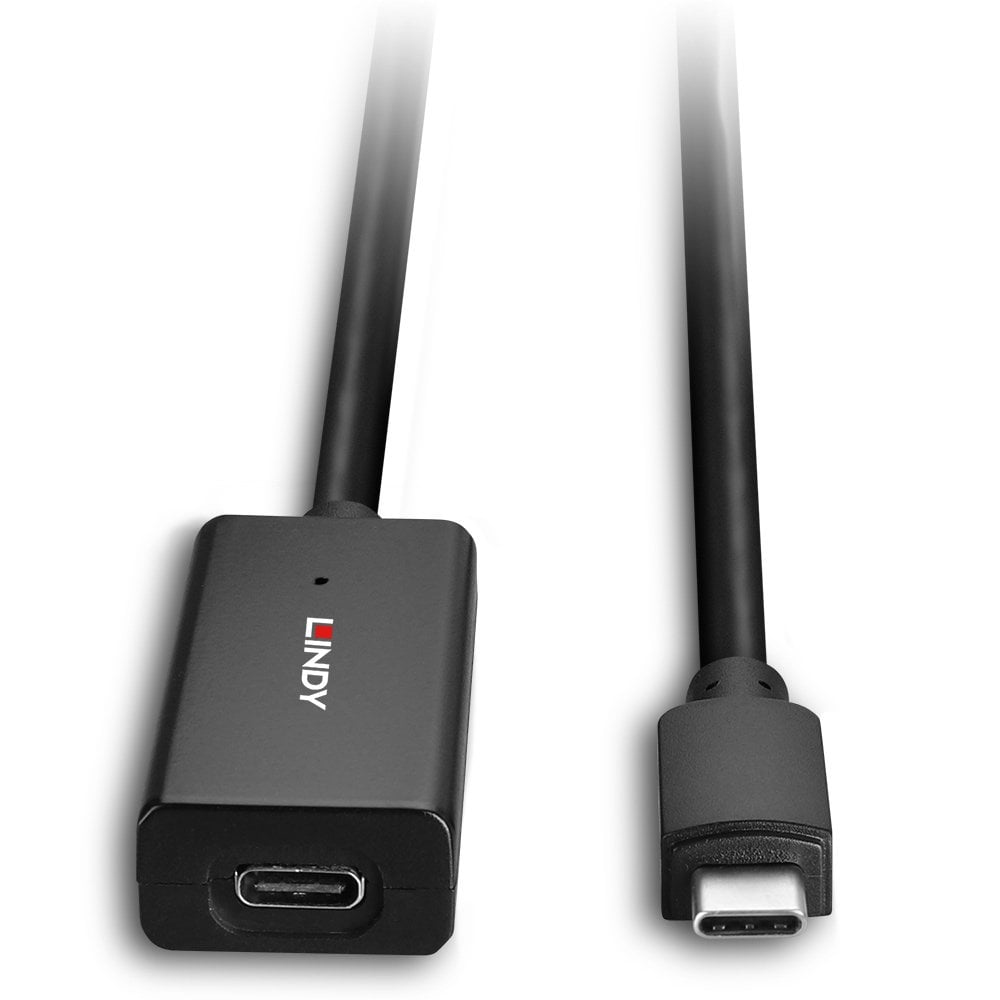

5m USB 3.2 Gen 1 C/C Active Extension
Model 43356EAN 4002888433563
37 specifications
- Weight198 g
- ColourBlack
- Ports quantity2
- Data transfer rate5000 Mbit/s
- Power supply typeDC
- Minimum operating temperature0 °C
Overview
- Weight
- 198 g
- Colour
- Black
- Ports quantity
- 2
- Data transfer rate
- 5000 Mbit/s
- Power supply type
- DC
- Minimum operating temperature
- 0 °C
- Brand
- Lindy
- Category
- Interface Hub
- Model
- 43356
- Part number
- 43356
- EAN / UPC
- 4002888433563
- Also known as
- Lindy 5m USB 3.2 Gen 1 C/C Active Extension
Specifications
37 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | No |
| Card reader integrated | No |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 5000 Mbit/s |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | Black |
| Cable type | Round cable |
| LED indicators | No |
| AWG wire size | 22/28 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable diameter | 5.5 mm |
| Cable length | 5 m |
| Conductor material | Tinned copper |
| Connector contacts plating | Nickel |
| Bend radius (min) | 3.6 cm |
| Plug and Play | Yes |
| Transmission medium | Twisted pair |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 198 g |
| Connector 1 dimensions (WxDxH) | 30.2 x 12.4 x 8 mm |
| Connector 2 dimensions (WxDxH) | 62 x 23.1 x 12.3 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 236 mm |
| Package depth | 255 mm |
| Package weight | 253 g |
| Package type | Polybag |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Storage temperature (T-T) | -10 - 60 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
