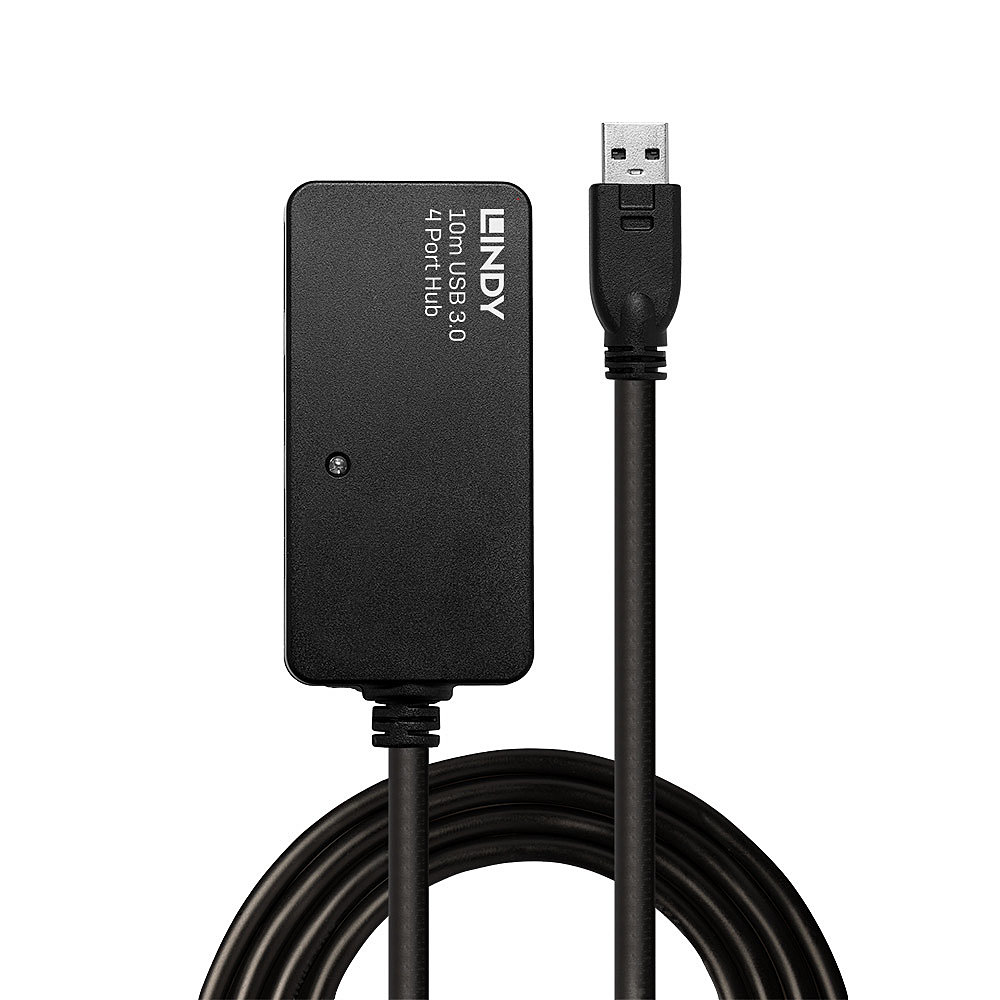

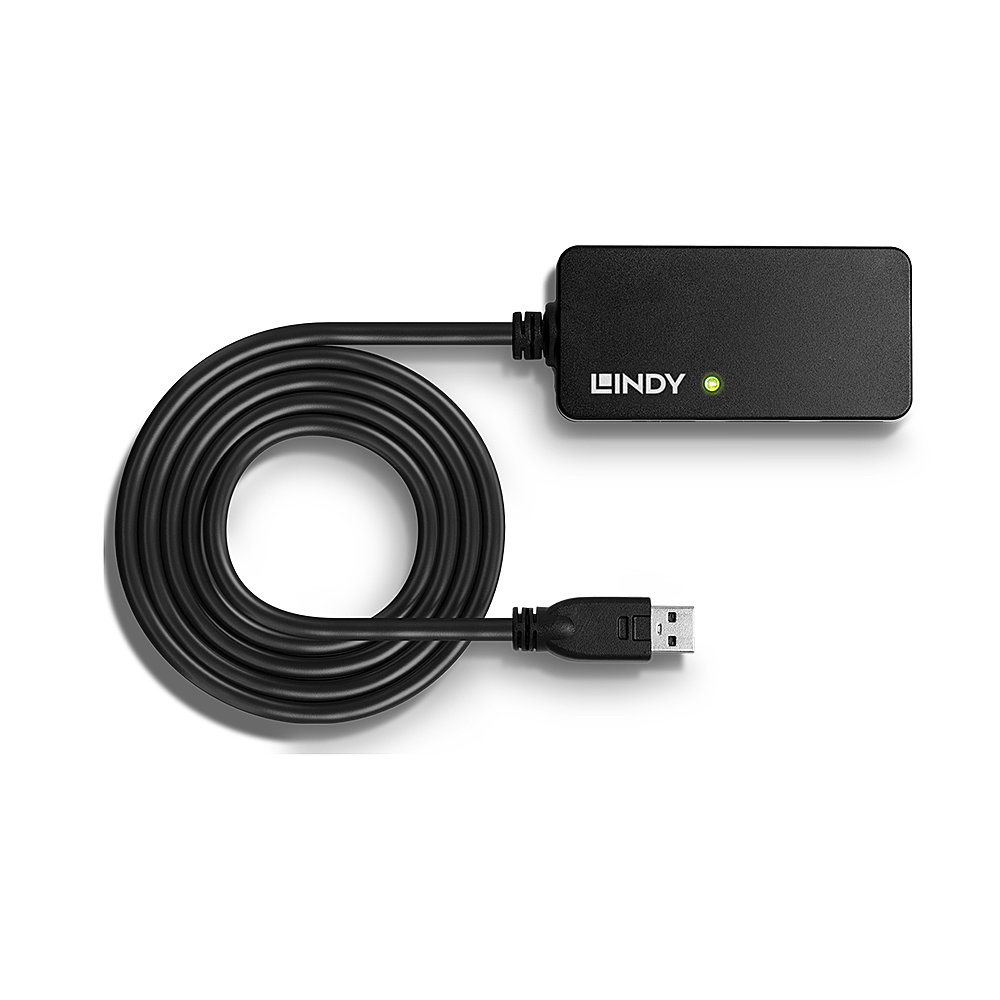

10m USB 3.0 Active Extension Pro Hub
Model 43159EAN 4002888431590
40 specifications
- Weight790 g
- ColourBlack
- Ports quantity4
- Data transfer rate5000 Mbit/s
- Power note3.5/1.35mm DC
- Width80 mm
Overview
- Weight
- 790 g
- Colour
- Black
- Ports quantity
- 4
- Data transfer rate
- 5000 Mbit/s
- Power note
- 3.5/1.35mm DC
- Width
- 80 mm
- Brand
- Lindy
- Category
- Interface Hub
- Model
- 43159
- Part number
- 43159
- EAN / UPC
- 4002888431590, 5053866596458
- Also known as
- Lindy 10m USB 3.0 Active Extension Pro Hub
Specifications
40 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 4 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 5000 Mbit/s |
| Housing material | Plastic |
| Product colour | Black |
| Cable type | Round cable |
| LED indicators | Yes |
| Plating material | Nickel |
| AWG wire size | 24/24/20 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable diameter | 7 mm |
| Cable length | 10 m |
| Conductor material | Tinned copper |
| Connector contacts plating | Gold |
| Contact material | Brass |
| Bend radius (min) | 3.6 cm |
| Plug and Play | Yes |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
Power
| Specification | Value |
|---|---|
| Power note | 3.5/1.35mm DC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 38 mm |
| Height | 15 mm |
| Weight | 790 g |
| Connector 1 dimensions (WxDxH) | 15 x 42 x 8 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 240 mm |
| Package depth | 200 mm |
| Package height | 70 mm |
| Package weight | 900 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating temperature (T-T) | -20 - 60 °F |
Design
| Specification | Value |
|---|---|
| Cable shielding | Aluminum mylar foil |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84719000 |
