JCDP392-EN
j5create

JCDP392-EN

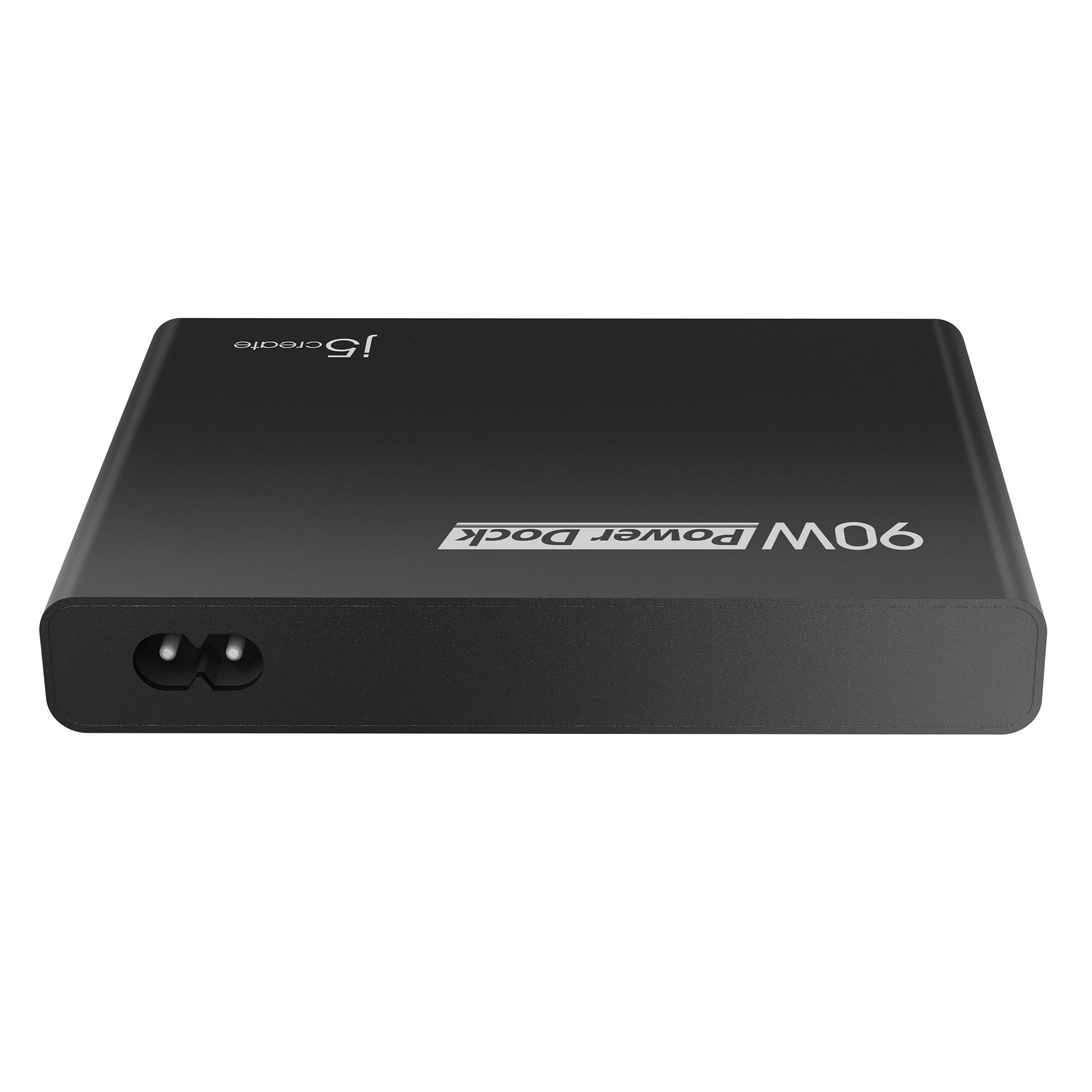

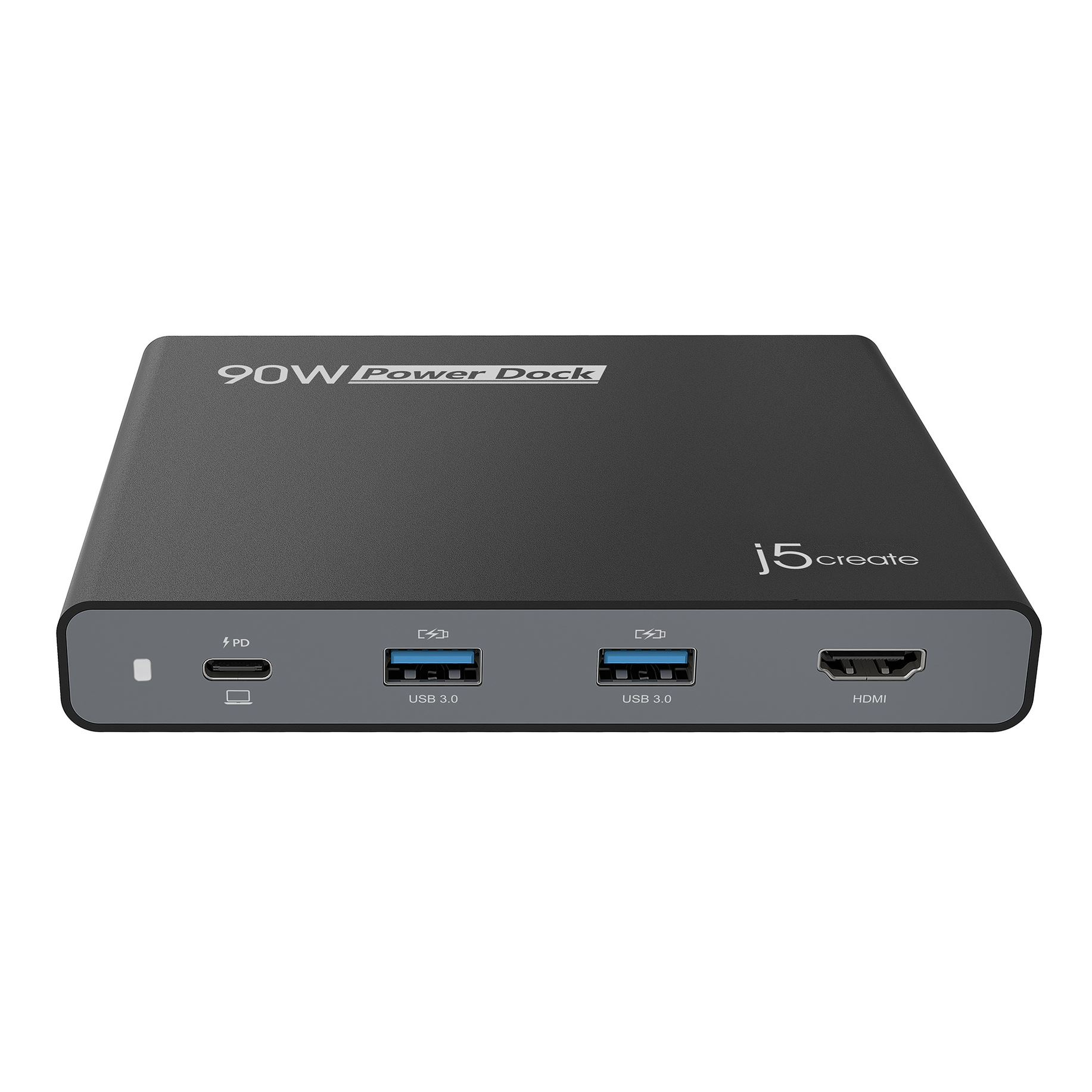

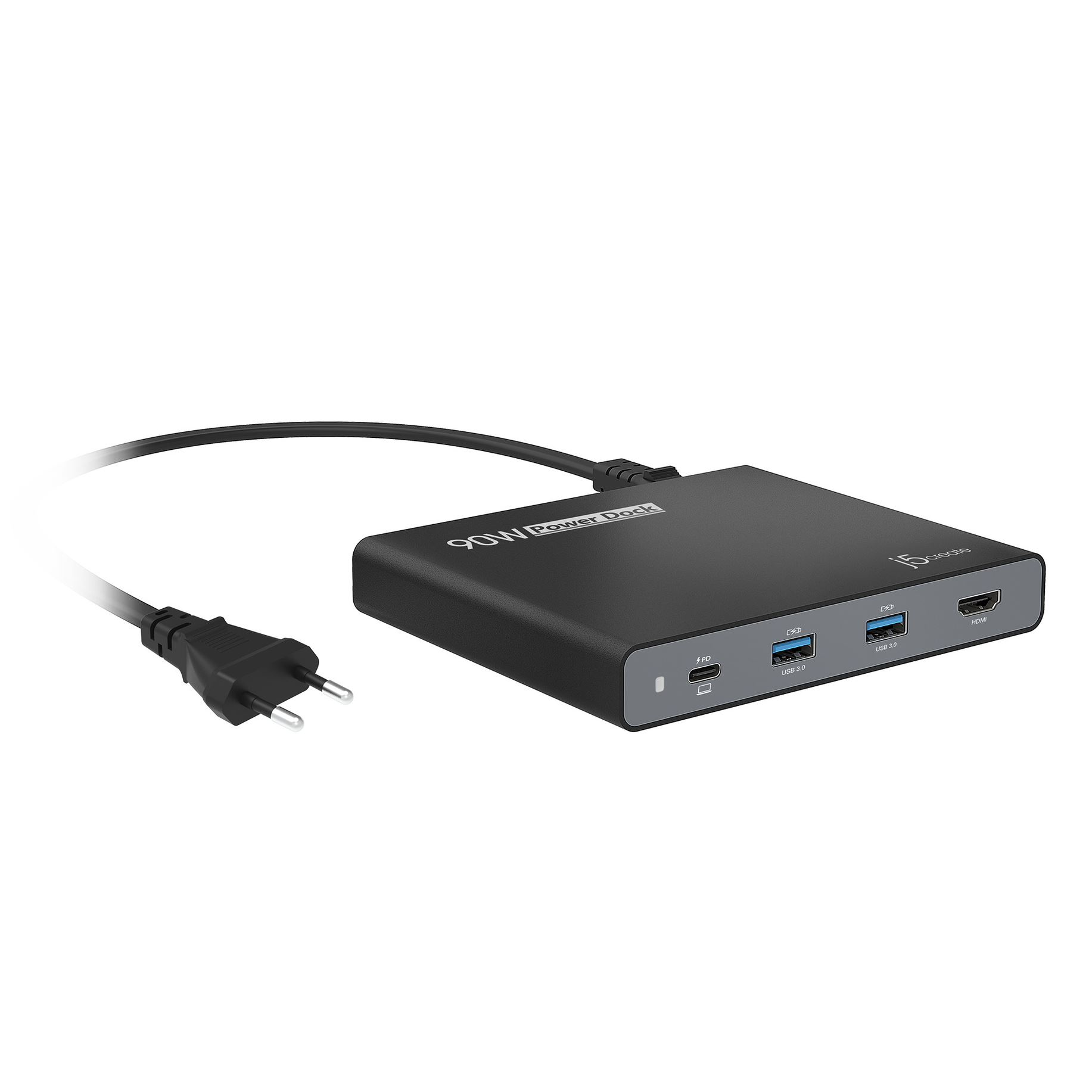

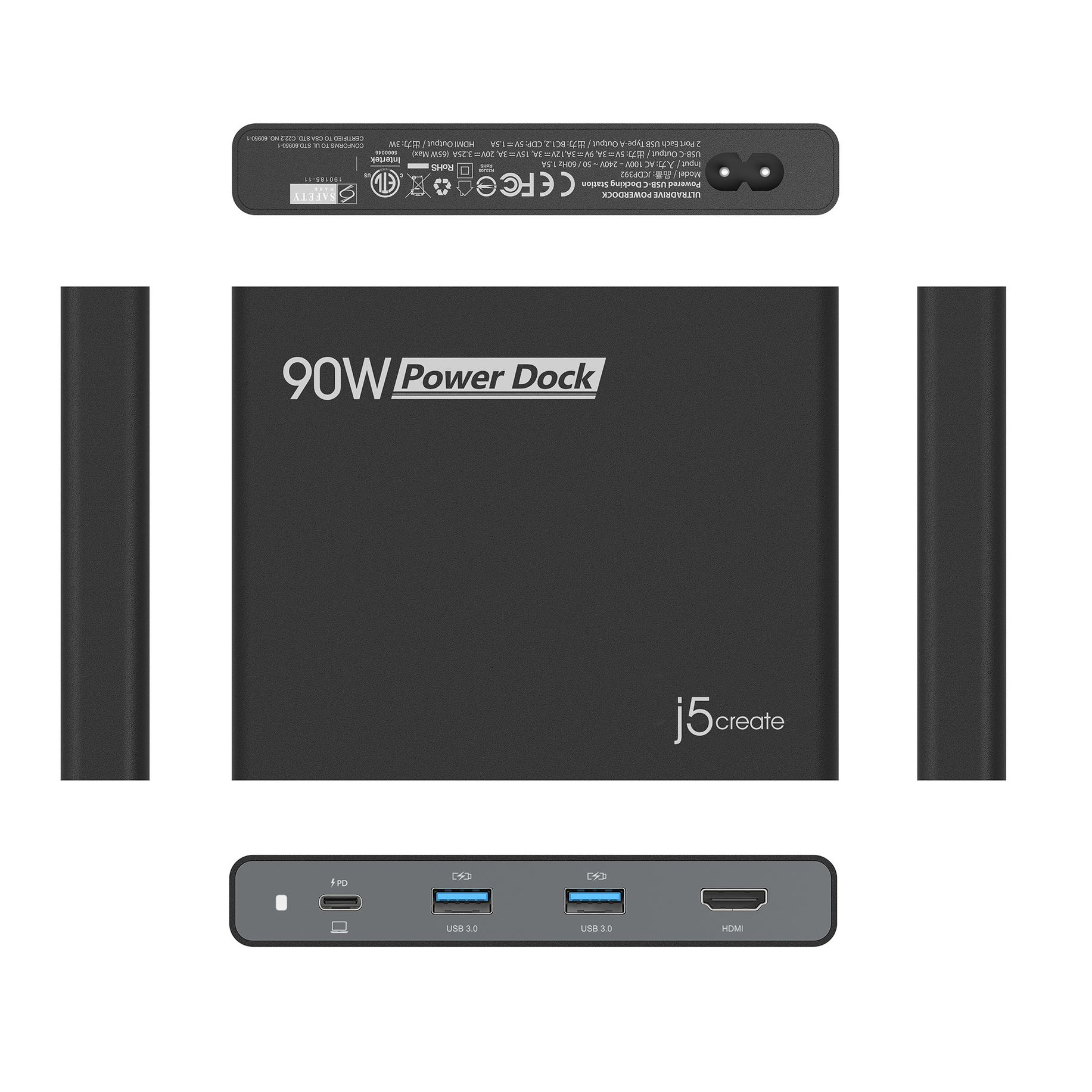

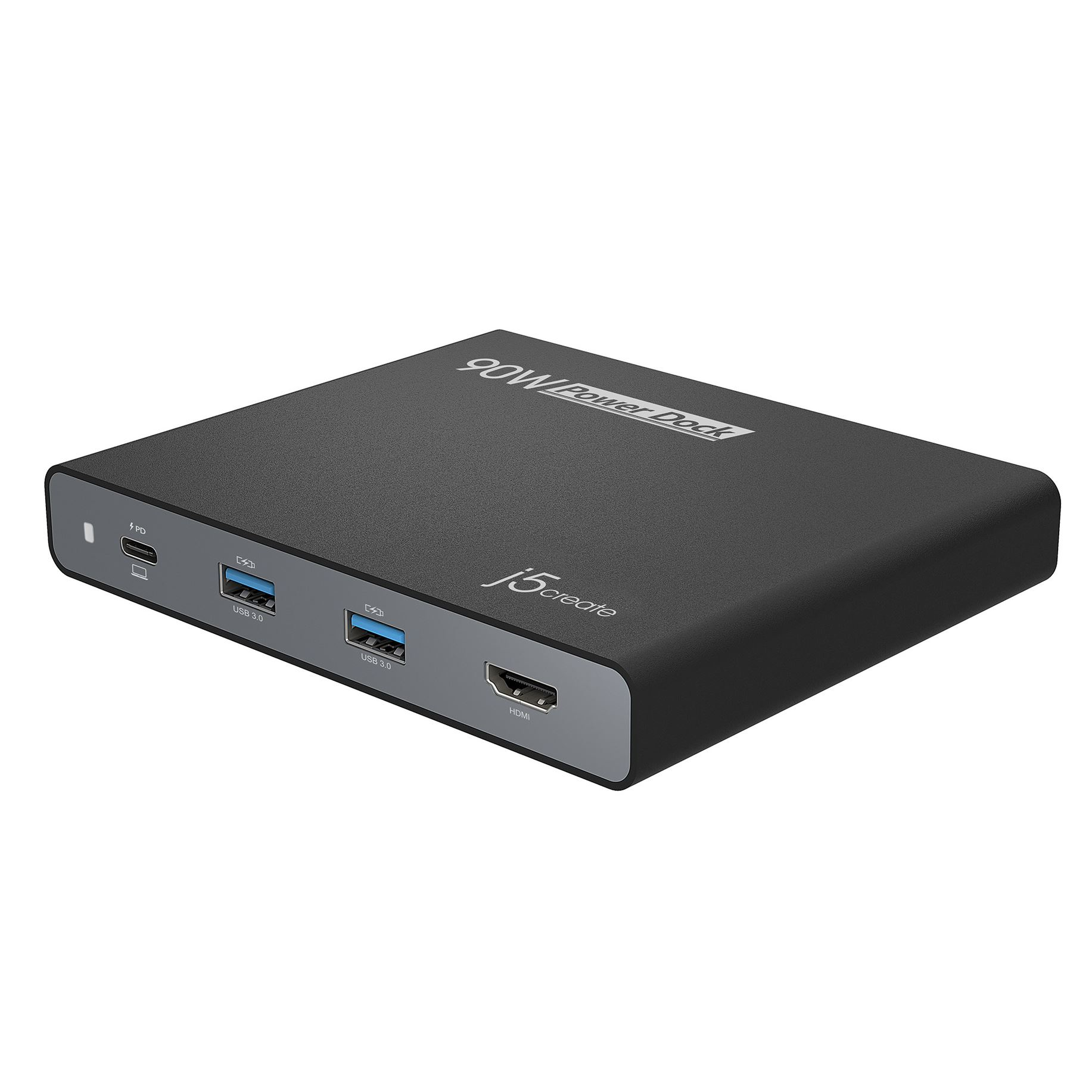

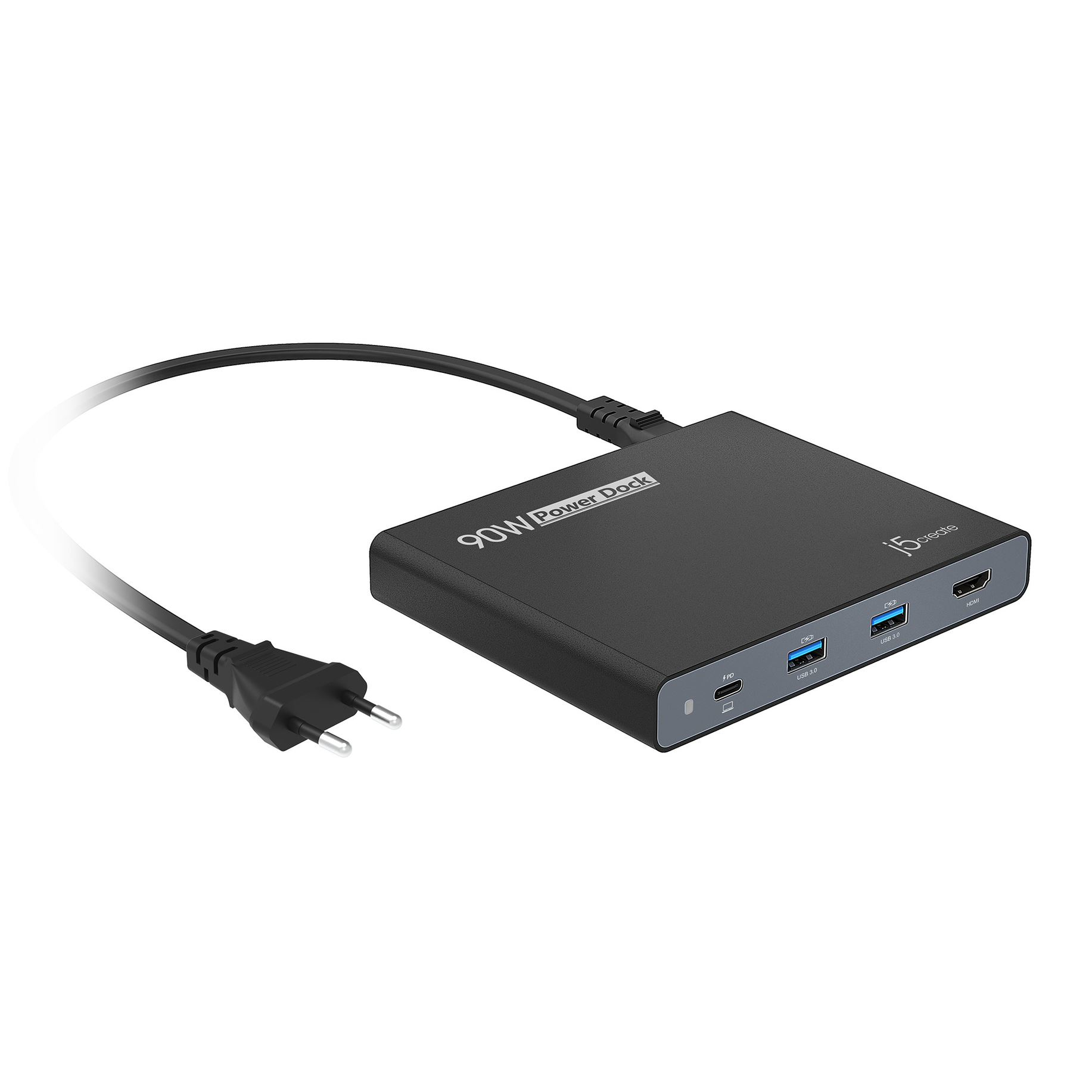

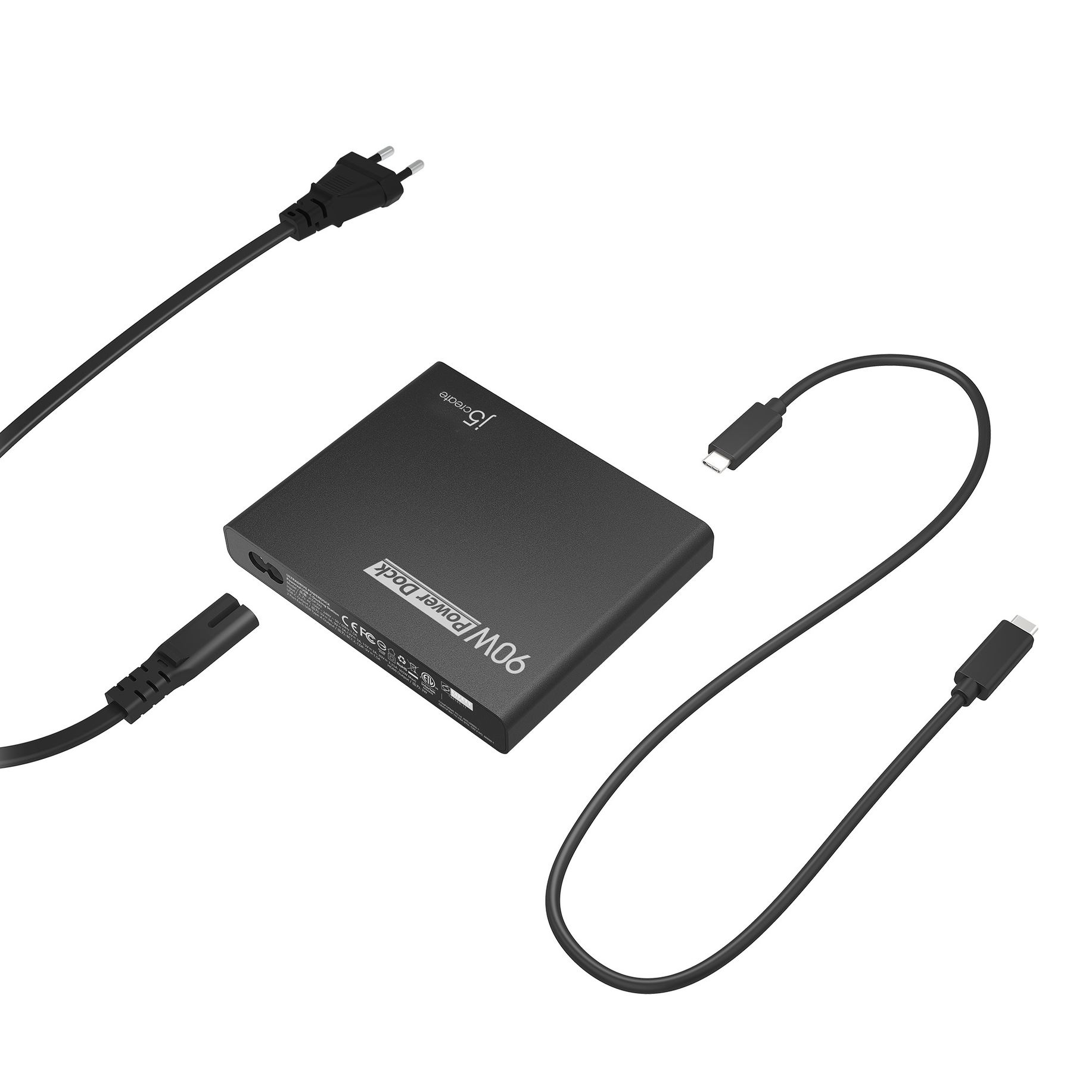

90W Built-in USB-C™ Travel Dock - EU

Model JCDP392-ENEAN 24712795083730

49 specifications
  • Weight276.5 g
  • ColourBlack
  • Ports quantity4
  • Data transfer rate5000 Mbit/s
  • AC input frequency50 - 60 Hz
  • Windows operating systems supportedYes
See all specifications

Overview

Weight
276.5 g
Colour
Black
Ports quantity
4
Data transfer rate
5000 Mbit/s
AC input frequency
50 - 60 Hz
Windows operating systems supported
Yes
Brand
j5create
Model
JCDP392-EN
Part number
JCDP392-EN
EAN / UPC
24712795083730, 4712795083736
Also known as
j5create JCDP392-EN - 90W Built-in USB-C™ Travel Dock - EU

Specifications

49 specifications in 10 groups

Ports & interfaces

Ports quantity4
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfacesHDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
USB Type-C DisplayPort Alternate ModeYes

Features

Data transfer rate5000 Mbit/s
Supported graphics resolutions1920 x 1080 (HD 1080), 3840 x 2160
Maximum resolution (HDMI)3840 x 2160 pixels
Housing materialAluminium
Product colourBlack
LED indicatorsYes
Country of originTaiwan
Plug and PlayYes
Compatible productsAvailable USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 / 3.0.

Power

AC input frequency50 - 60 Hz
Input current1.5 A
Input voltage100 - 240 V
Output voltage5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Width129 mm
Depth19.5 mm
Height105 mm
Weight276.5 g

Packaging data

Quantity per pack1 pc(s)
Package width193 mm
Package depth125 mm
Package height35 mm
Package weight486 g
Package typeBox

Packaging content

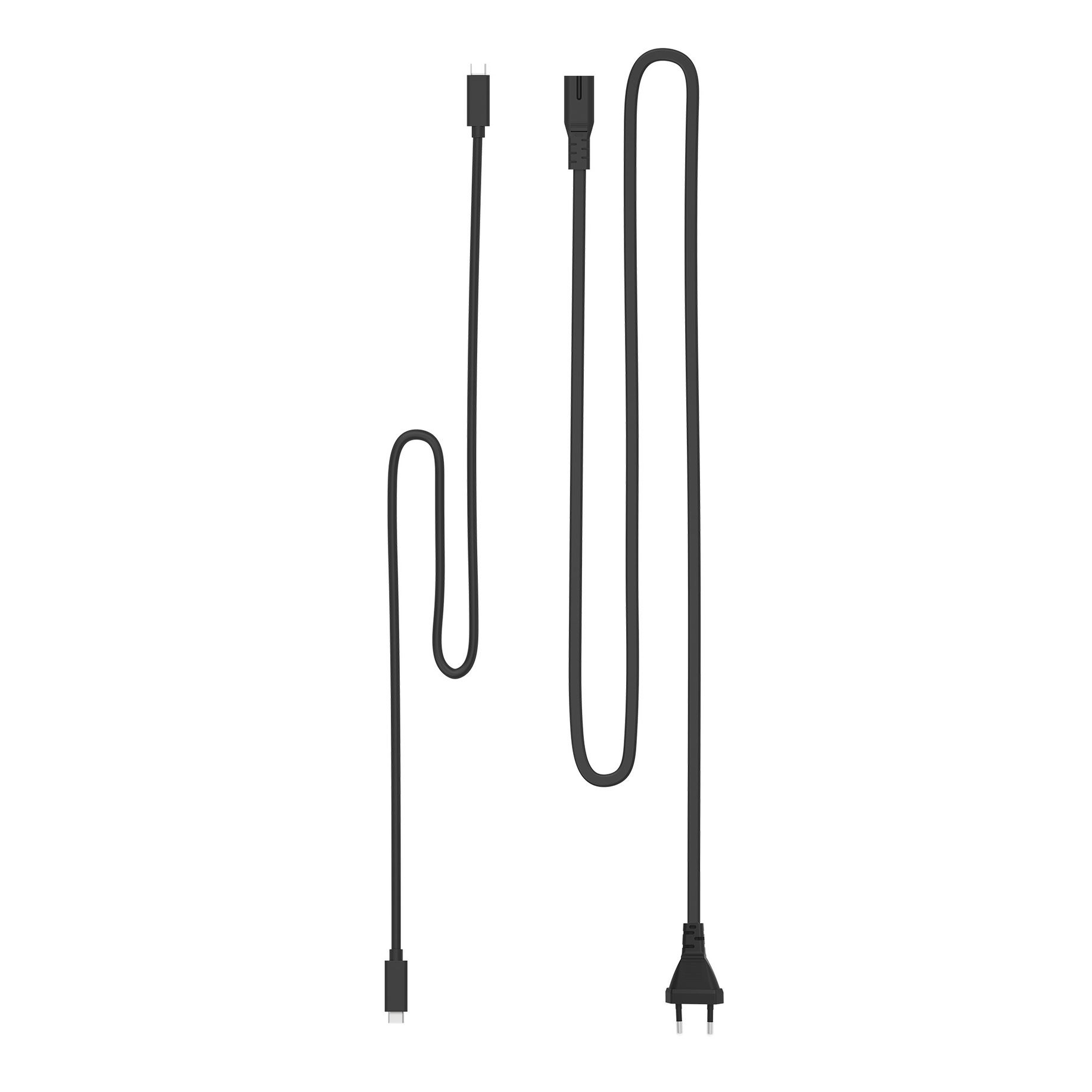

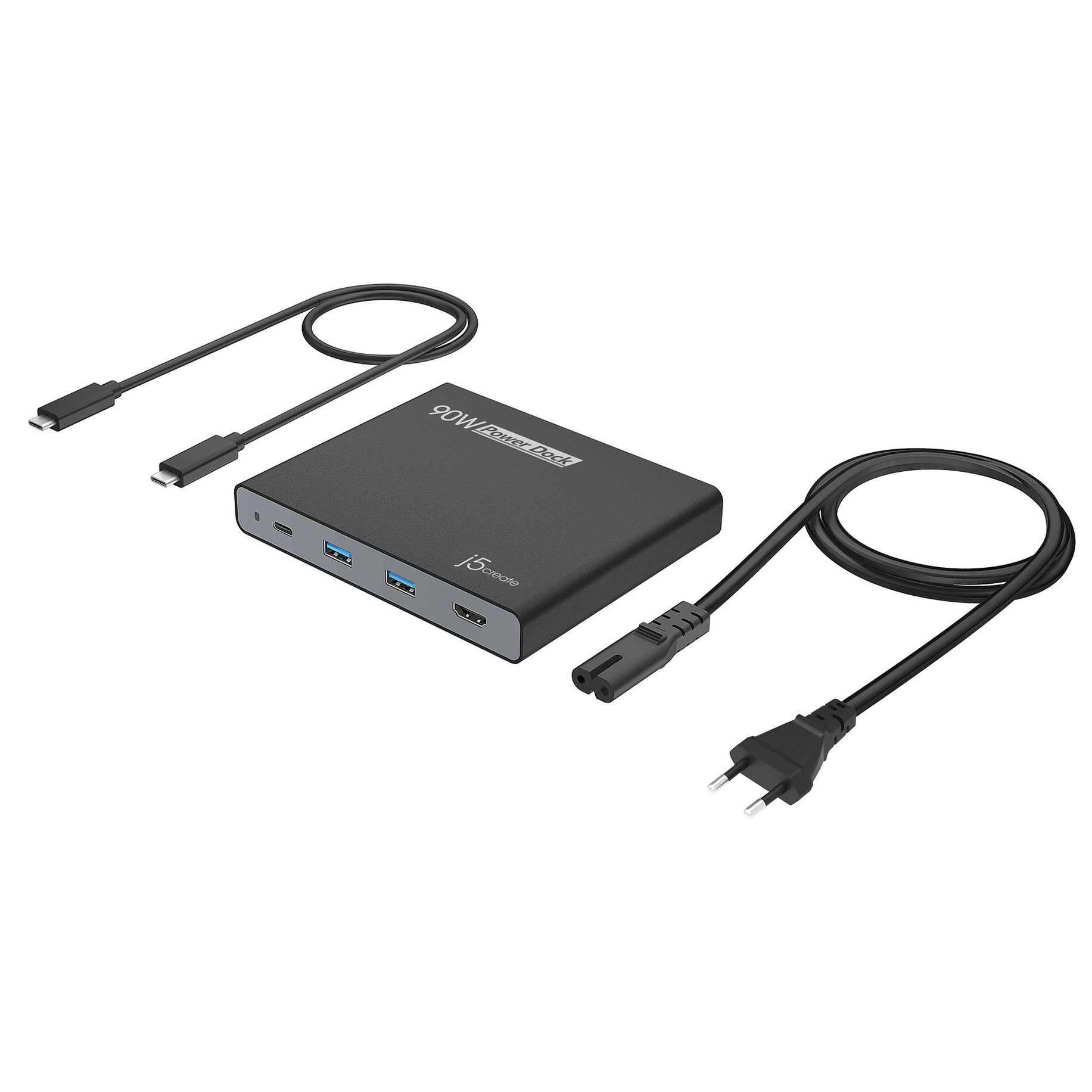

Packaging content1 - JCDP392 90W Built-in USB-C Travel Dock 1 - USB-C to USB-C 3.1 Cable (1.97 ft/60 cm) 1 - Detachable power cord length and plug type varies by region

Operational conditions

Minimum operating temperature0 °C
Maximum operating temperature25 °C
Storage temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Logistics data

Master (outer) case width280 mm
Master (outer) case length430 mm
Master (outer) case height235 mm
Master (outer) case gross weight9.8 kg
Products per master (outer) case18 pc(s)
Shipping (inner) case width21.2 cm
Shipping (inner) case length26.9 cm
Shipping (inner) case height13 cm
Shipping (inner) case gross weight3.1 kg
Products per shipping (inner) case6 pc(s)

Technical details

Warranty period2 year(s)
