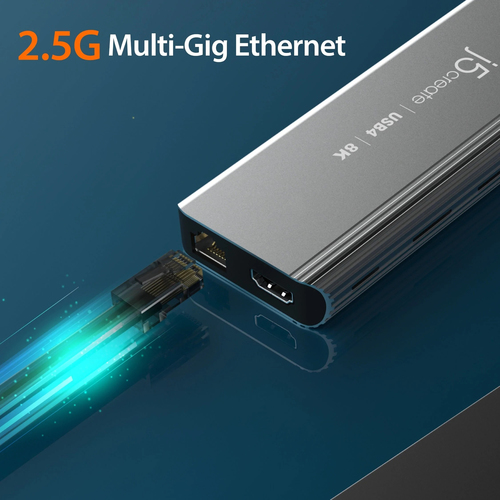

JCD403 USB4® 8K Multi-Port Hub
j5create

JCD403 USB4® 8K Multi-Port Hub

Model JCD403-NEAN 24712795086618

47 specifications
  • Weight109 g
  • ColourGrey
  • Ports quantity6
  • Data transfer rate10000 Mbit/s
  • Ethernet interface typeGigabit Ethernet
  • Power supply typeUSB/AC
See all specifications

Overview

Weight
109 g
Colour
Grey
Ports quantity
6
Data transfer rate
10000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Power supply type
USB/AC
Brand
j5create
Model
JCD403-N
Part number
JCD403-N
EAN / UPC
24712795086618, 4712795086614
Also known as
j5create JCD403 USB4® 8K Multi-Port Hub

Specifications

47 specifications in 9 groups

Ports & interfaces

Ports quantity6
Host interfaceUSB Type-C
Hub interfacesHDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
USB Type-C DisplayPort Alternate ModeYes

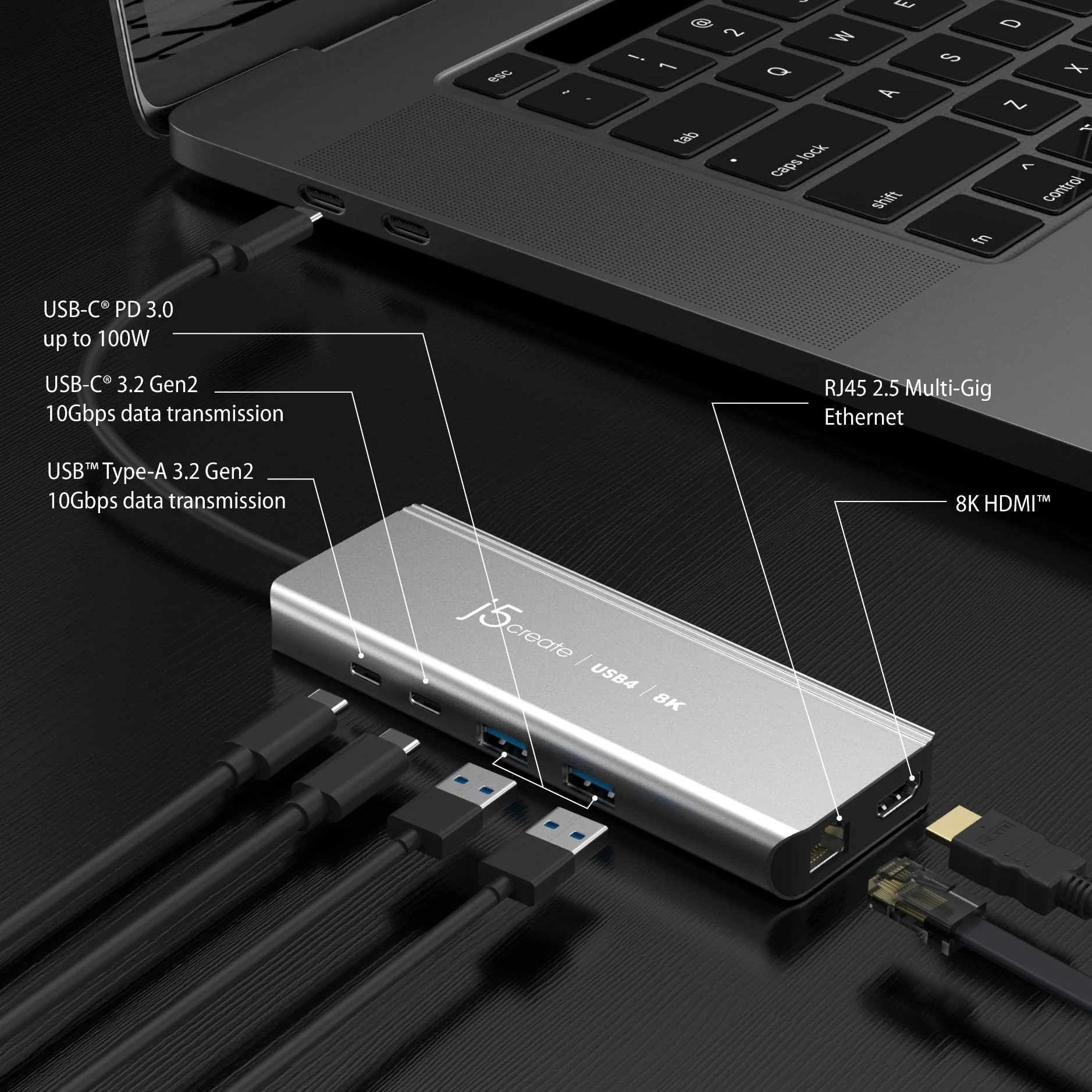

I/O ports1- USB-C 3.2 Gen2 10Gbps data transmission 1- USB-C power delivery 3.0 100W 2- USB Type-A 3.2 Gen2 10Gbps data transmission 1- 8K HDMI 1- RJ45 2.5 Gigabit Ethernet

Features

Data transfer rate10000 Mbit/s
Supported graphics resolutions3840 x 2160, 7680 x 4320

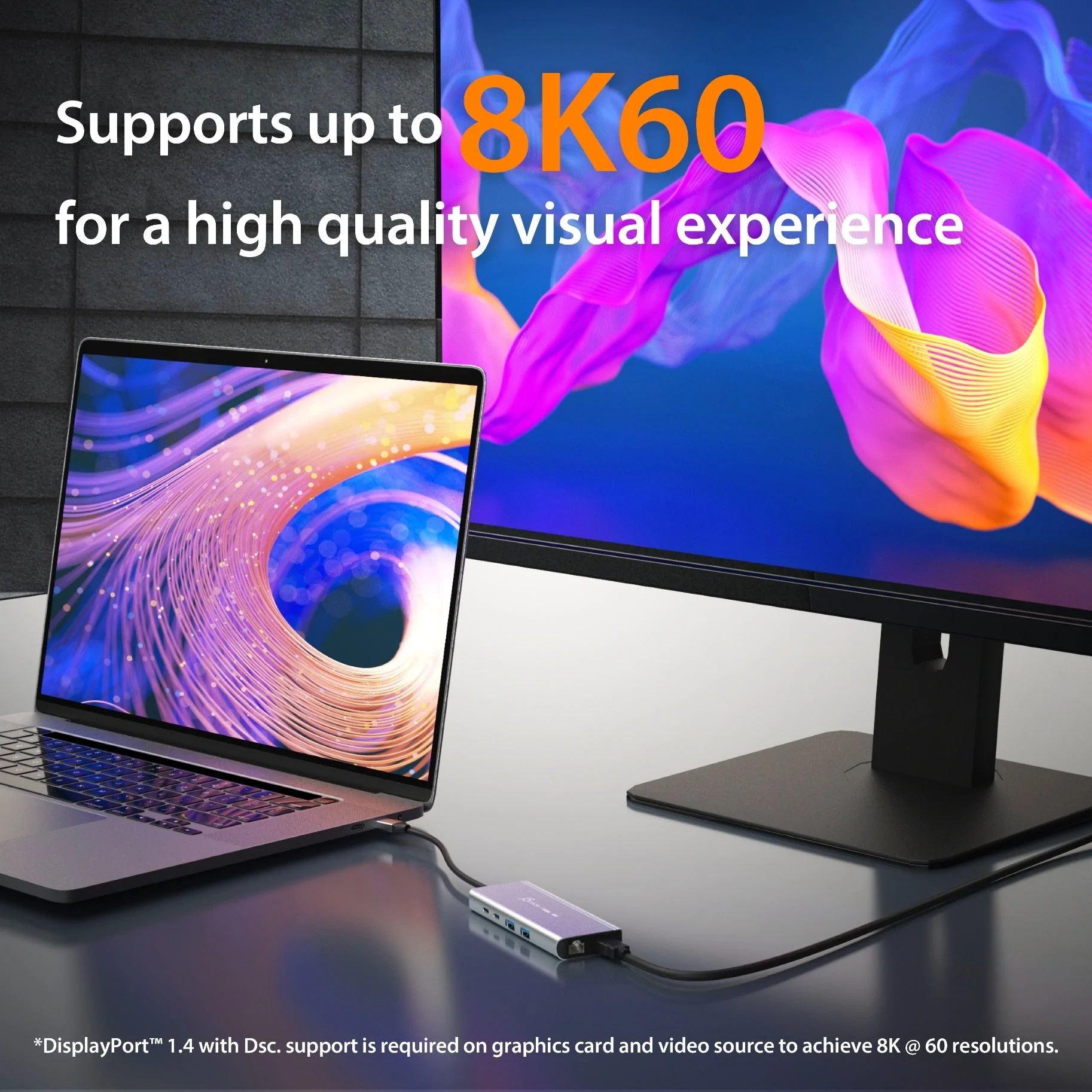

Maximum resolution (HDMI)7680 x 4320 pixels
Housing materialAluminium
Product colourGrey

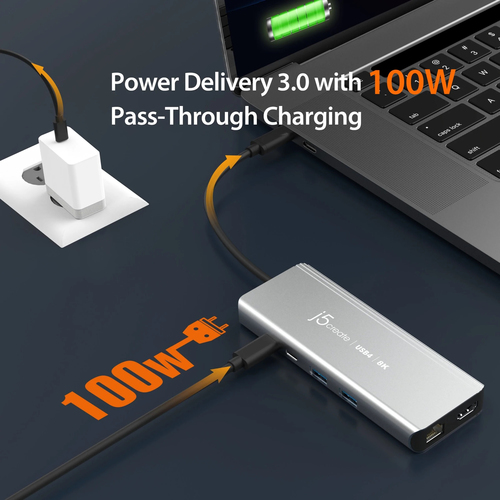

USB Power Delivery revision3.0
USB Power Delivery up to100 W
HD type8K Ultra HD
Number of displays supported1
Cable typeRound cable
Country of originTaiwan
Plug and PlayYes
Compatible productsAvailable Thunderbolt 4, Thunderbolt 3, USB4, and USB-C host laptops. GPU and video source: DisplayPort 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz. DisplayPort 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz. * DSC = VESA Display Stream Compression (DSC) Standard. Only available on

Network

Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000,2500 Mbit/s

Power

Power supply typeUSB/AC
Input current5 A
Input voltage20 V
Power supply100 W
Output voltage20 V
Output current4.75 A
Power plug typeType C

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Width51 mm
Depth15 mm
Height135 mm
Weight109 g

Packaging content

AC adapter includedNo
Quick start guideYes
Packaging content1 - JCD403 USB4 8K Multi-Port Hub 1 - Quick Installation Guide (QIG)

Operational conditions

Operating temperature (T-T)-1 - 41 °C
Operating temperature (T-T)30 - 116 °F
Storage temperature (T-T)-17 - 68 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Technical details

Warranty period2 year(s)
