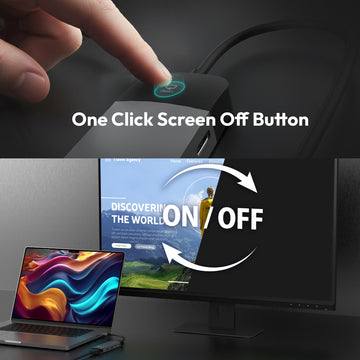

JCD3002 USB-C® 4K60 Hub with PD and Screen-Off Control, Black/Grey
Model JCD3002Part no. JCD3002-NEAN 4711704920100
33 specifications
- Weight51 g
- ColourGrey
- Ports quantity6
- Width34 mm
- Operating temperature (T-T)-1 - 41 °C
- Export Control Classification Number (ECCN)EAR99
Overview
- Weight
- 51 g
- Colour
- Grey
- Ports quantity
- 6
- Width
- 34 mm
- Operating temperature (T-T)
- -1 - 41 °C
- Export Control Classification Number (ECCN)
- EAR99
- Brand
- j5create
- Category
- Interface Hub
- Model
- JCD3002
- Part number
- JCD3002-N
- EAN / UPC
- 4711704920100
- Also known as
- j5create JCD3002 USB-C® 4K60 Hub with PD and Screen-Off Control, Black/Grey
Specifications
33 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 6 |

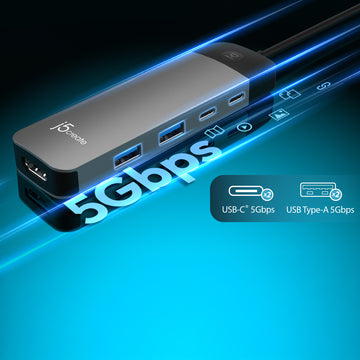

| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
Features
| Specification | Value |
|---|---|
| Housing material | Aluminium, Acrylonitrile butadiene styrene (ABS) |
| Product colour | Grey |

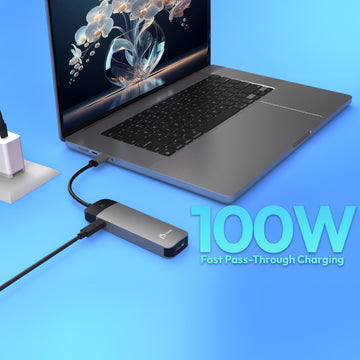

| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Cable length | 0.1 m |
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 34 mm |
| Depth | 15 mm |
| Height | 115 mm |
| Weight | 51 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 2 mm |
| Package depth | 890 mm |
| Package height | 95 mm |
| Package weight | 89 g |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | 1 - JCD3002 USB-C 7-in-1 4K Multi-Port Hub with Screen-Off Control (PD) 1 - Quick Installation Guide |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -1 - 41 °C |
| Storage temperature (T-T) | -17 - 68 °C |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Commodity Classification Automated Tracking System (CCATS) | 8471.80.0000 |
Logistics data
| Specification | Value |
|---|---|
| Commodity code | 8471.80.0000 |
| Master (outer) case net weight | 550 g |
| Master (outer) case width | 108 mm |
| Master (outer) case length | 153 mm |
| Master (outer) case height | 176 mm |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795080104 |
