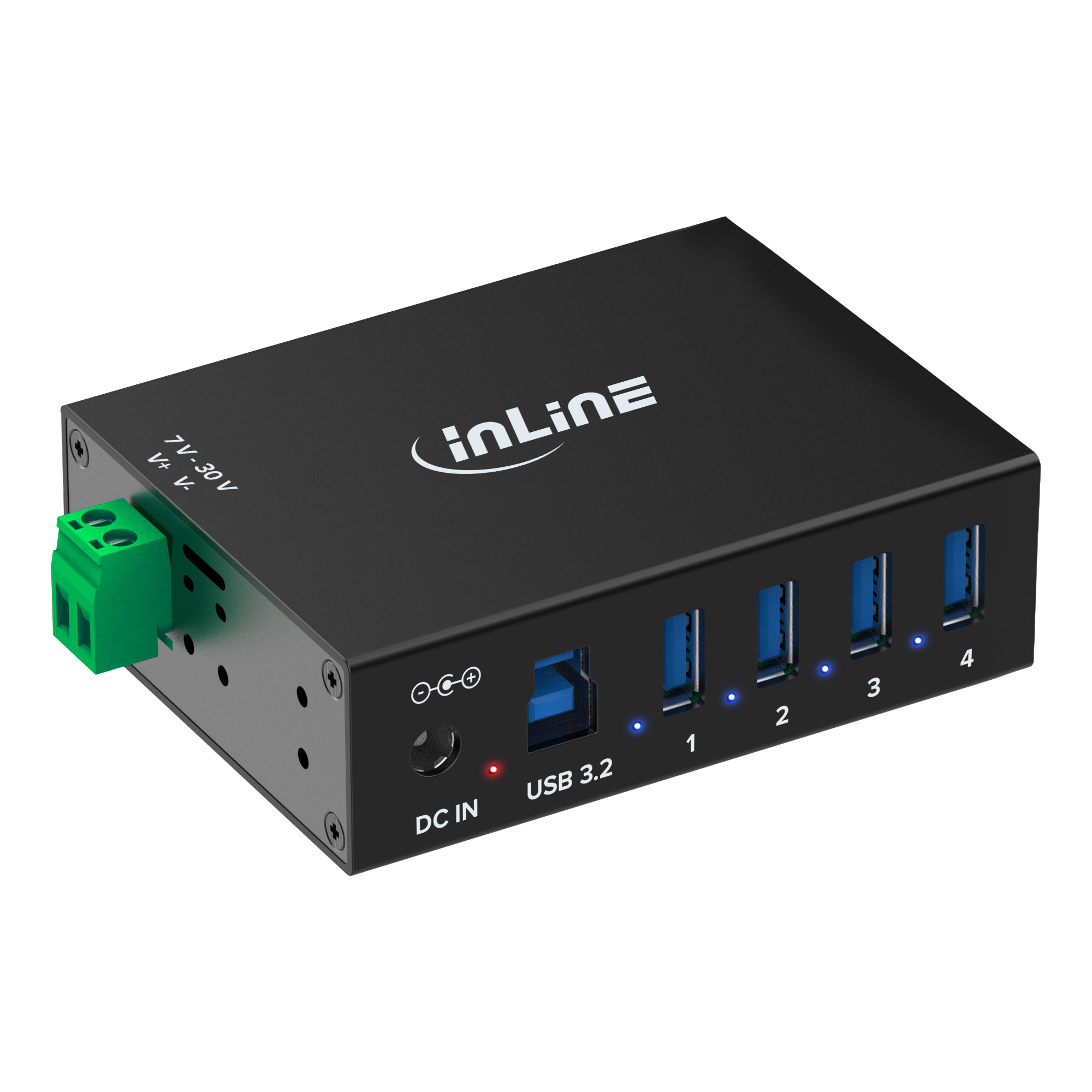

35396A interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Black
Model 35396AEAN 4043718345007
35 specifications
- Weight131 g
- ColourBlack
- Ports quantity5
- Data transfer rate5000 Mbit/s
- Power supply typeDC
- Windows operating systems supportedYes
Overview
- Weight
- 131 g
- Colour
- Black
- Ports quantity
- 5
- Data transfer rate
- 5000 Mbit/s
- Power supply type
- DC
- Windows operating systems supported
- Yes
- Brand
- InLine
- Category
- Interface Hub
- Model
- 35396A
- Part number
- 35396A
- EAN / UPC
- 4043718345007
- Also known as
- InLine 35396A interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Black
Specifications
35 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 5 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Terminal block port | Yes |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 5000 Mbit/s |
| Housing material | Aluminium |
| Product colour | Black |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Input current | 2 A |
| Input voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 91 mm |
| Height | 28 mm |
| Weight | 131 g |

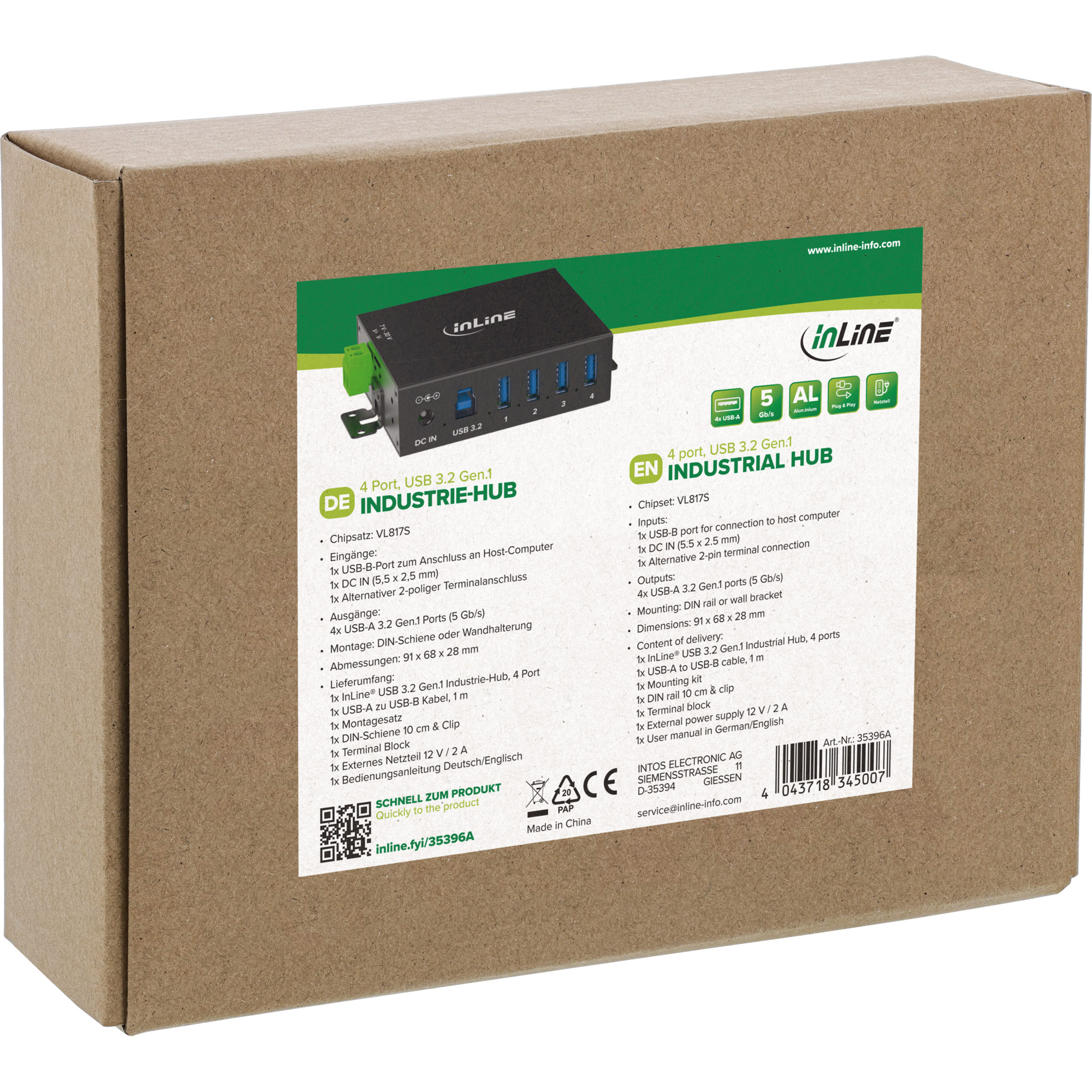

Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 185 mm |
| Package height | 55 mm |
| Package volume | 900 cm³ |
| Package weight | 468 g |
| Package type | Box |

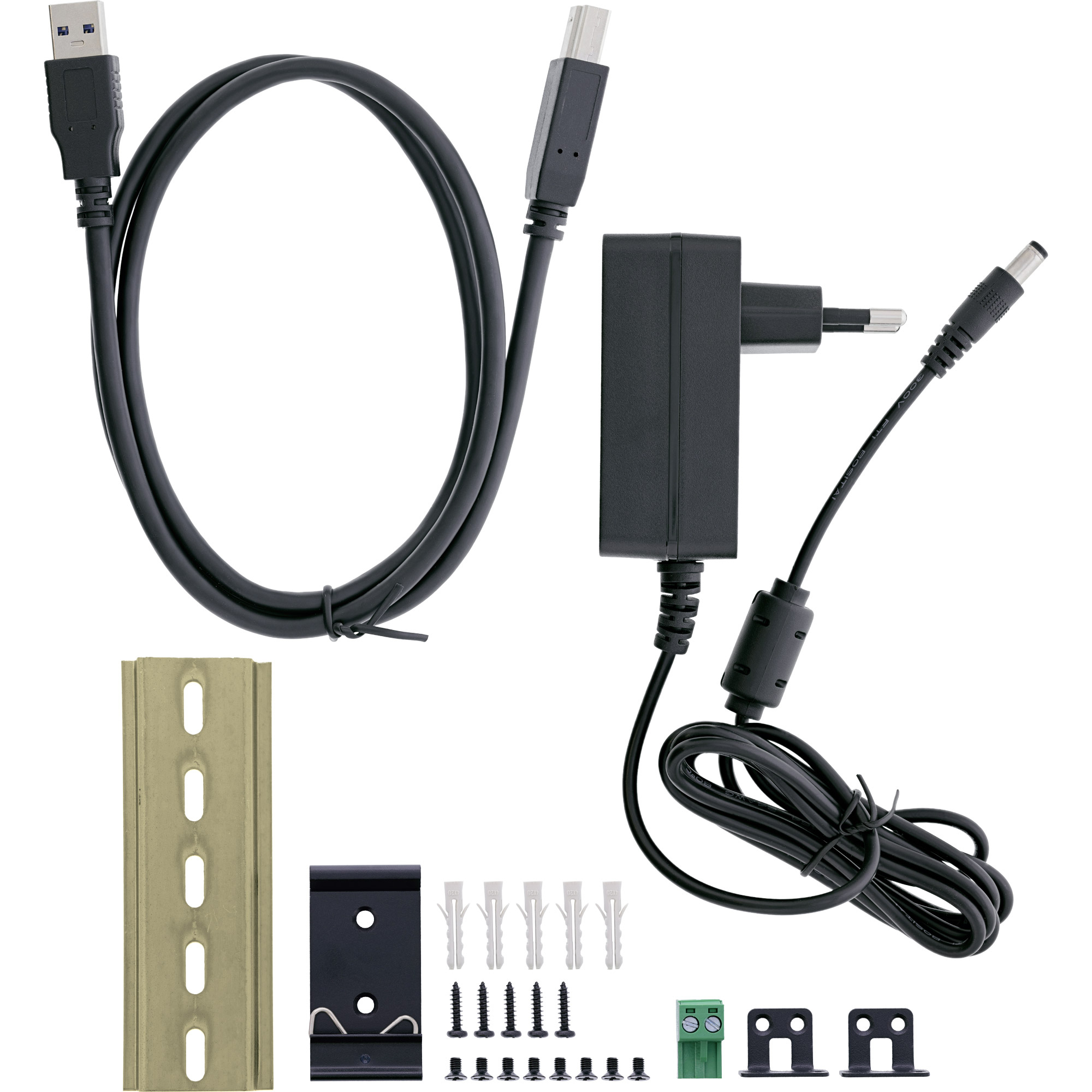

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-A to USB Type-B |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 125 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
Other features
| Specification | Value |
|---|---|
| Chipset | VL817S |
| Dimensions (WxDxH) | 68 x 91 x 28 mm |
