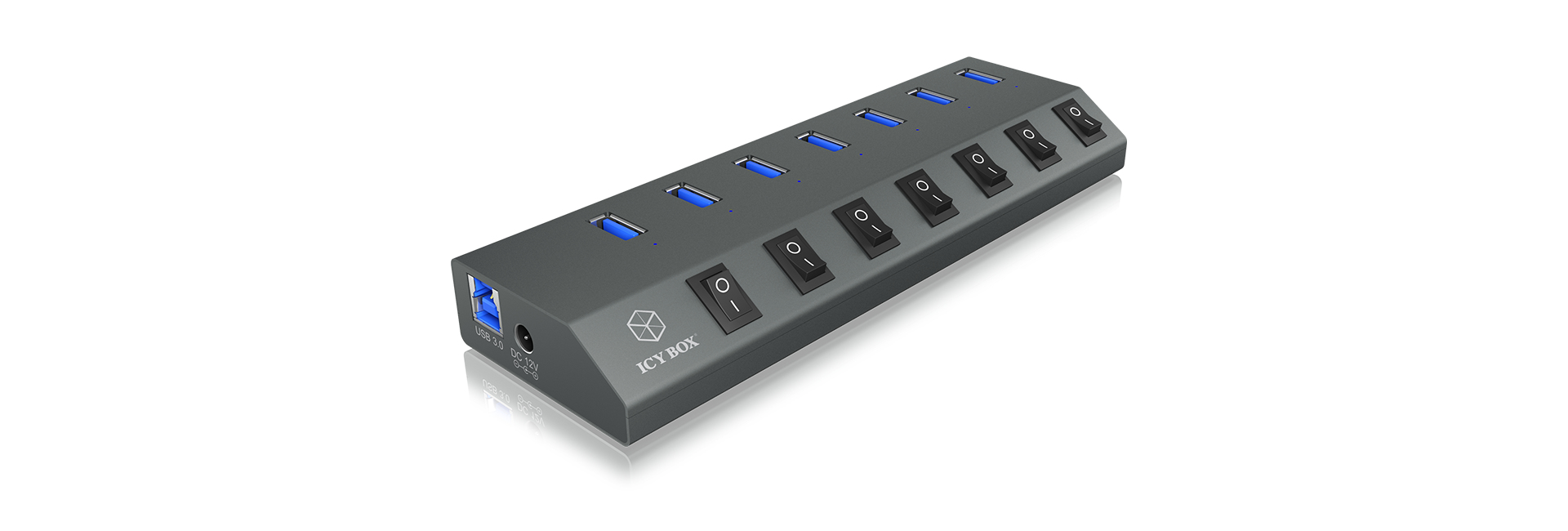

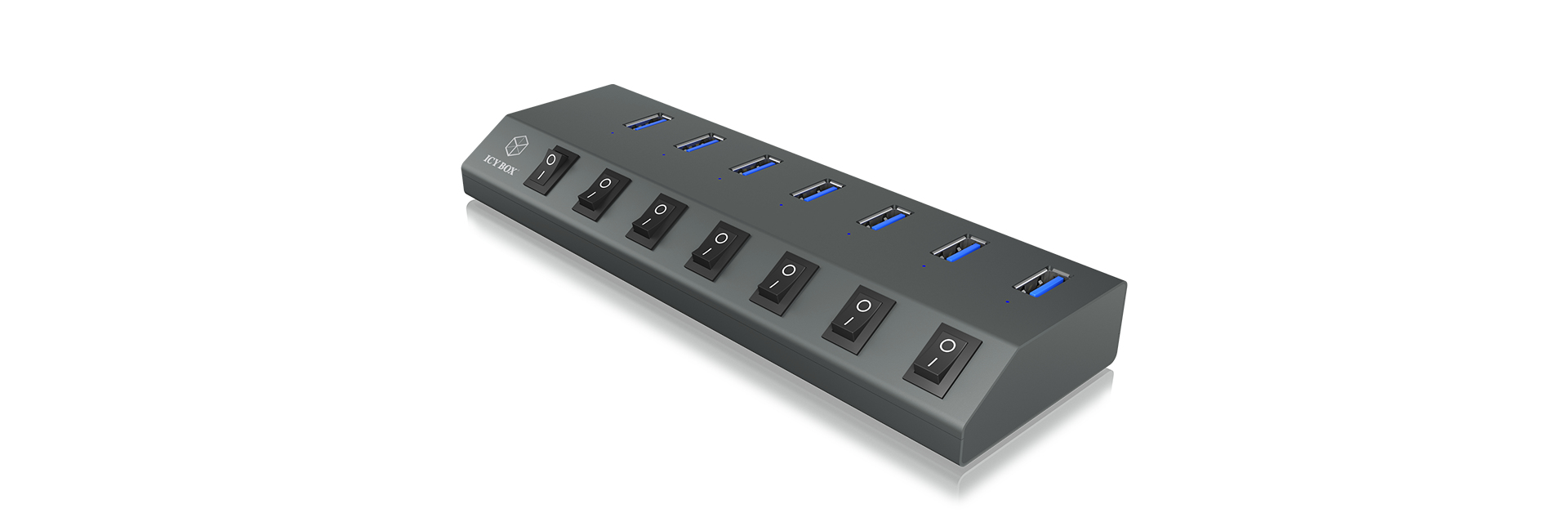

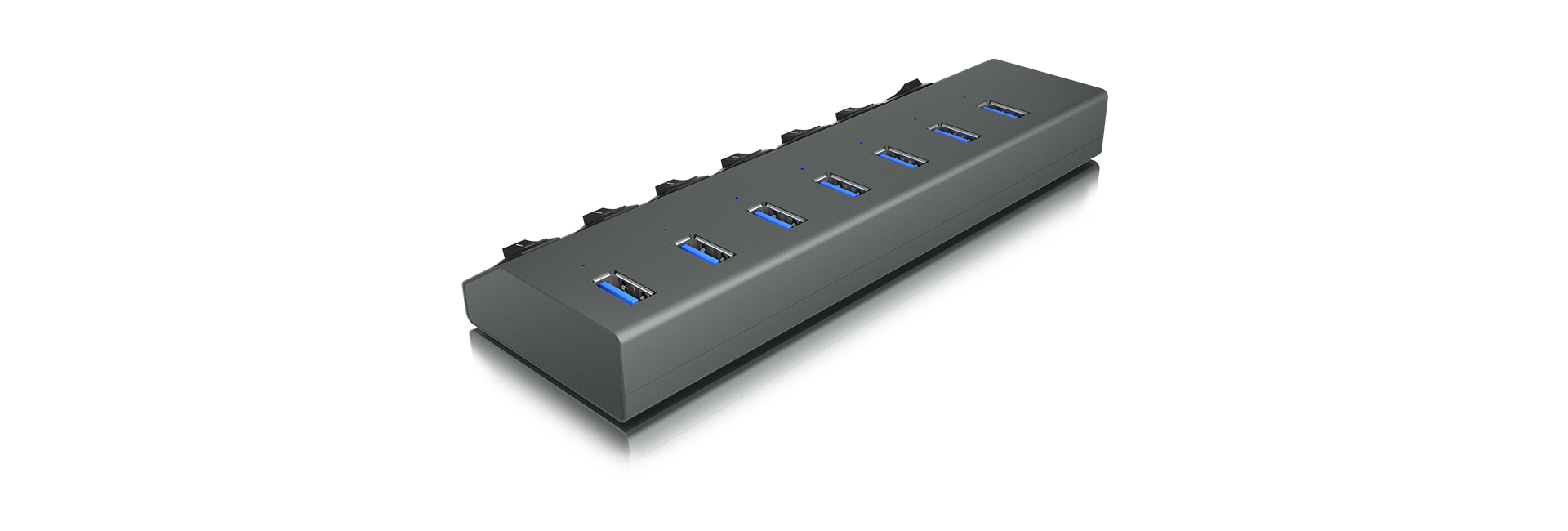

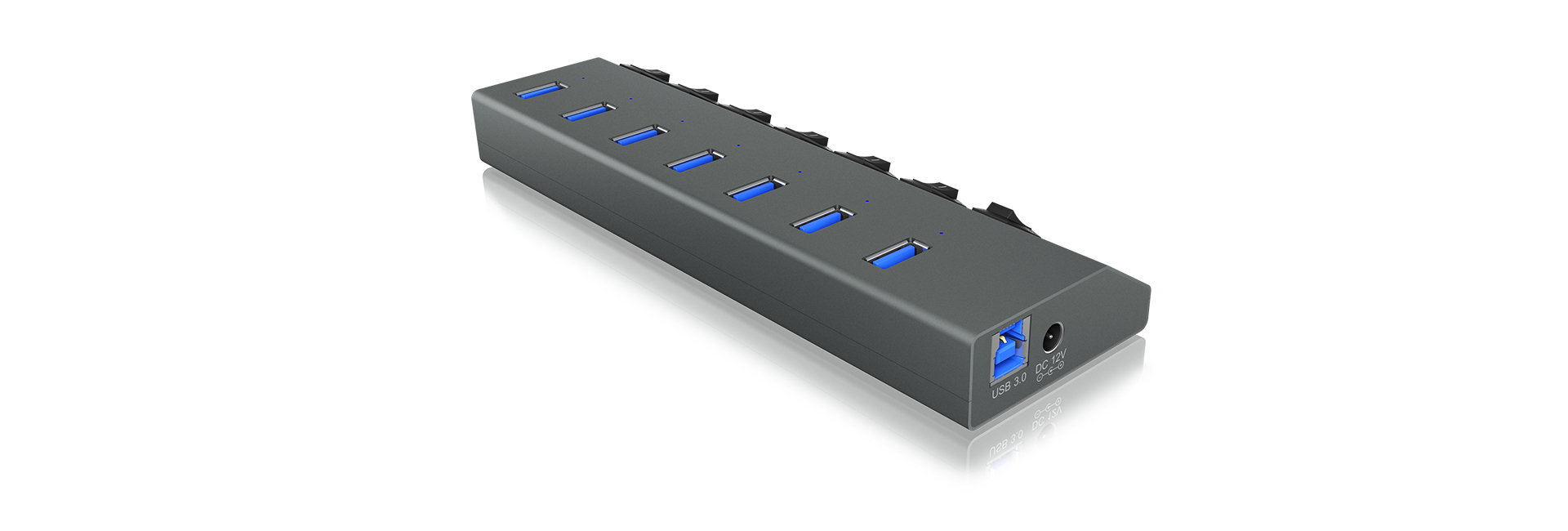

ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite
Model IB-HUB1701-U3Part no. 60262EAN 4250078165927
36 specifications
- Weight213 g
- ColourAnthracite
- Ports quantity8
- Data transfer rate5000 Mbit/s
- Power supply typeAC
- Windows operating systems supportedYes
Overview
- Weight
- 213 g
- Colour
- Anthracite
- Ports quantity
- 8
- Data transfer rate
- 5000 Mbit/s
- Power supply type
- AC
- Windows operating systems supported
- Yes
- Brand
- ICY BOX
- Category
- Interface Hub
- Model
- IB-HUB1701-U3
- Part number
- 60262
- EAN / UPC
- 4250078165927
- Also known as
- ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite
Specifications
36 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 8 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 5000 Mbit/s |
| Housing material | Aluminium |
| Product colour | Anthracite |
| Hot-swap | Yes |
| LED indicators | Activity, Power |
| Cable length | 0.75 m |
| Country of origin | China |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Input current | 2 A |
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 4 A |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 193 mm |
| Depth | 60 mm |
| Height | 22 mm |
| Weight | 213 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 100 mm |
| Package depth | 100 mm |
| Package height | 230 mm |
| Package weight | 789 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-A to USB Type-B |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 240 mm |
| Master (outer) case length | 525 mm |
| Master (outer) case height | 230 mm |
| Master (outer) case gross weight | 8.6 kg |
Compare ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite
Compare any products- ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite vsICY BOX IB-HUB1427-C31 USB 3.2 Gen 2 (3.1 Gen 2) Type-C 10000 Mbit/s BlackCompare specs
- ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite vsICY BOX IB-HUB1426-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-A 5000 Mbit/s BlackCompare specs
- ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite vsICY BOX IB-HUB1425-C3 USB 3.2 Gen 1 (3.1 Gen 1) Type-C 5000 Mbit/s SilverCompare specs
- ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite vsICY BOX IB-HUB1414-C3 USB 3.2 Gen 1 (3.1 Gen 1) Type-C 5000 Mbit/s BlackCompare specs
- ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite vsCoolBox COO-HU4ALU2 interface hub USB 2.0 480 Mbit/s SilverCompare specs
- ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite vsTechly IUSB-EXTEND604 interface hub USB 2.0 480 Mbit/s BlackCompare specs
- ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite vsCoolBox COO-HU7ALU2 interface hub USB 2.0 480 Mbit/s SilverCompare specs

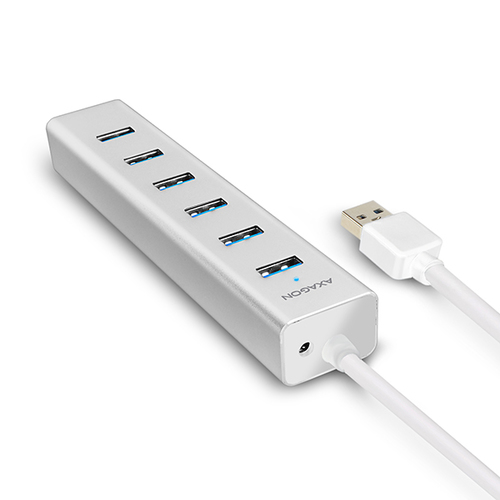

- ICY BOX IB-HUB1701-U3 USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Anthracite vsAxagon HUE-SA7SP interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-A 5000 Mbit/s SilverCompare specs
