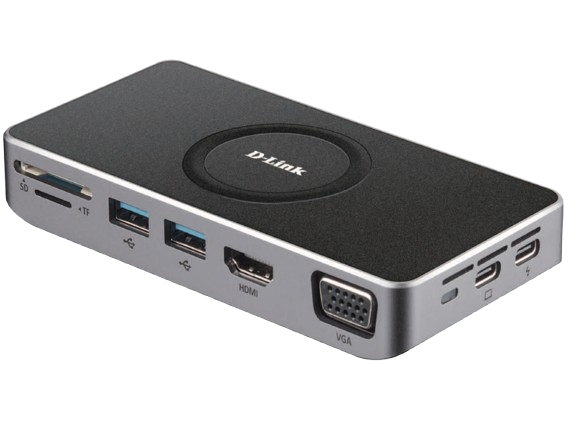

DUB-M820 interface hub USB Type-C 5000 Mbit/s Black, Metallic
Model DUB-M820EAN 790069474156
41 specifications
- Weight125 g
- ColourBlack, Metallic
- Ports quantity8
- Data transfer rate5000 Mbit/s
- Input current0.08 A
- Windows operating systems supportedYes
Overview
- Weight
- 125 g
- Colour
- Black, Metallic
- Ports quantity
- 8
- Data transfer rate
- 5000 Mbit/s
- Input current
- 0.08 A
- Windows operating systems supported
- Yes
- Brand
- D-Link
- Category
- Interface Hub
- Model
- DUB-M820
- Part number
- DUB-M820
- EAN / UPC
- 790069474156
- Also known as
- D-Link DUB-M820 interface hub USB Type-C 5000 Mbit/s Black, Metallic
Specifications
41 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 8 |
| Host interface | USB Type-C |
| Hub interfaces | HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Card reader integrated | Yes |
| Card reader slot | 2 |
| Compatible memory cards | MicroSD (TransFlash), SD |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 5000 Mbit/s |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 2160p |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Product colour | Black, Metallic |
| HDCP | Yes |
| HDCP version | 2.2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HD type | 4K Ultra HD |
| Battery charging capability | Yes |
| LED indicators | Yes |
| Cable length | 0.5 m |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| Input current | 0.08 A |
| Input voltage | 5 DC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 128 mm |
| Depth | 18 mm |
| Height | 63 mm |
| Weight | 125 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
