USB Gen2 Type-C PD Charging Hub to 2x Type-C
10G ports and 2x USB Type-A 10G ports
Model CSV-1543EAN 841615102297
36 specifications
- Weight60 g
- ColourBlack, Silver
- Ports quantity4
- Data transfer rate10000 Mbit/s
- Power supply typeUSB
- Windows operating systems supportedYes
Overview
- Weight
- 60 g
- Colour
- Black, Silver
- Ports quantity
- 4
- Data transfer rate
- 10000 Mbit/s
- Power supply type
- USB
- Windows operating systems supported
- Yes
- Brand
- CLUB3D
- Category
- Interface Hub
- Model
- CSV-1543
- Part number
- CSV-1543
- EAN / UPC
- 841615102297, 8719214472061
- Also known as
- CLUB3D USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports
Specifications
36 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 4 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Card reader integrated | No |
| DC-in jack | No |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 10000 Mbit/s |
| Product colour | Black, Silver |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Cable type | Round cable |
| Cable length | 0.254 m |
| Plug and Play | Yes |
| Certification | ROHS, FCC, CE EMI |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
| Output voltage | 5 - 20 V |
| Output current | 1.5 A |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 45 mm |
| Height | 12 mm |
| Weight | 60 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 70 mm |
| Package depth | 35 mm |
| Package height | 320 mm |
| Package weight | 105 g |
| Package type | Box |
Packaging composition
| Specification | Value |
|---|---|
| Paper/cardboard packaging weight | 42 g |
| Plastic packaging weight | 3 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8473 3020 |
Similar products
All interface hubs
Verbatim
USB-C Essentials Multiport Hub 7 ports: HDMI, USB-C, USB-C 3.2 Gen 1, 2 x USB-A 3.2 Gen 1, SD & microSD
Model 32158
- Weight
- 60 g
- Colour
- Grey
- Ports quantity
- 7
Verbatim
USB-C Essentials Multiport Hub 6 ports: HDMI, USB-C PD, USB-A 3.2 Gen 1, USB-A, SD & microSD
Model 32156
- Weight
- 56 g
- Colour
- Grey
- Ports quantity
- 6
Verbatim
USB-C Essentials Multiport Hub 6 ports: RJ45, HDMI, USB-C PD, 3 x USB-A 3.2 Gen 1
Model 32157
- Weight
- 80 g
- Colour
- Grey
- Ports quantity
- 6
j5create
JCA399 USB-C® to HDMI™ 4K144Hz & USB™ 3.2 with Power Delivery
Model JCA399-N
- Weight
- 31.5 g
- Colour
- White
- Ports quantity
- 3
Verbatim
USB-C Essentials Multiport Hub 4 ports: HDMI, USB-C PD, USB-A 3.2 Gen 1, USB-A
Model 32155
- Weight
- 51 g
- Colour
- Grey
- Ports quantity
- 4
j5create

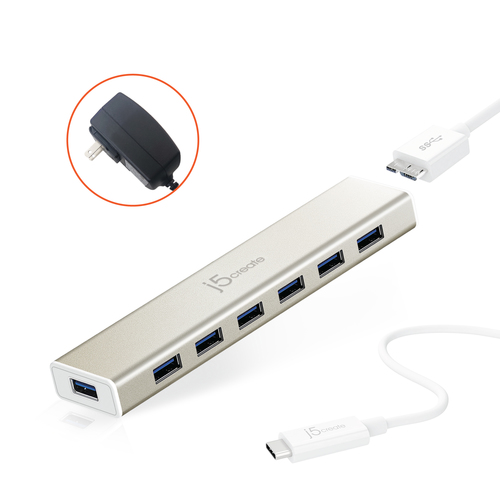

JCH377 USB-C® 7- Port Hub - EU/UK, Metallic Champagne
