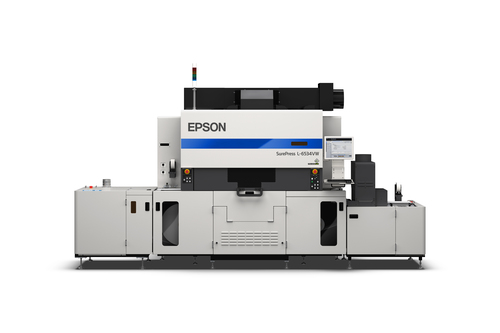

SurePress L-6534VW
Model L-6534VWPart no. C11CH31301EAN 8715946669168
41 specifications
- Weight2640 kg
- ColourYes
- Print technologyInkjet
- Product colourGrey
- AC input voltage200 - 240 V
- Operating temperature (T-T)20 - 28 °C
Overview
- Weight
- 2640 kg
- Colour
- Yes
- Print technology
- Inkjet
- Product colour
- Grey
- AC input voltage
- 200 - 240 V
- Operating temperature (T-T)
- 20 - 28 °C
- Brand
- Epson
- Category
- Industrial Printing Press
- Model
- L-6534VW
- Part number
- C11CH31301
- EAN / UPC
- 8715946669168
- Also known as
- Epson SurePress L-6534VW
Specifications
41 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 600 x 1200 DPI |
| Maximum image size | 330 x 1000 mm |
| Print speed | 30 m/min |
| Print speed (max) | 50 m/min |
| Print speed (high density mode) | 15 m/min |
| Print speed (reverse white mode) | 7.6 m/min |
| Printing colours | Black, Cyan, Magenta, White, Yellow |
| Printing media thickness | 80 - 340 µm |
| Gradation process | Variable-sized droplet technology |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Built-in display | Yes |
| Colour display | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 200 - 240 V |
| Input voltage (corona treater) | 200 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 20 - 28 °C |
| Operating relative humidity (H-H) | 35 - 55% |

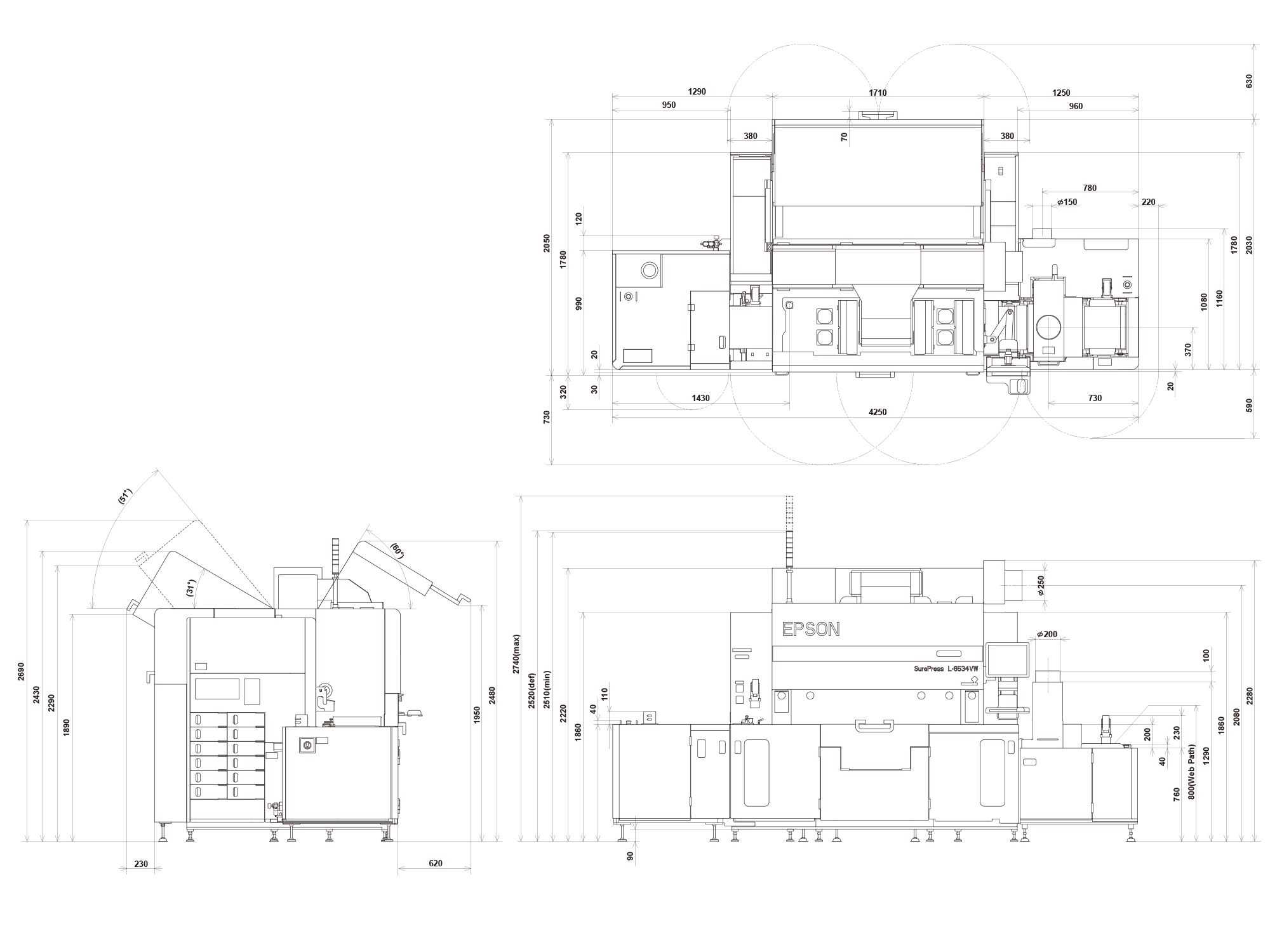

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 4250 mm |
| Depth | 2290 mm |
| Height | 2520 mm |

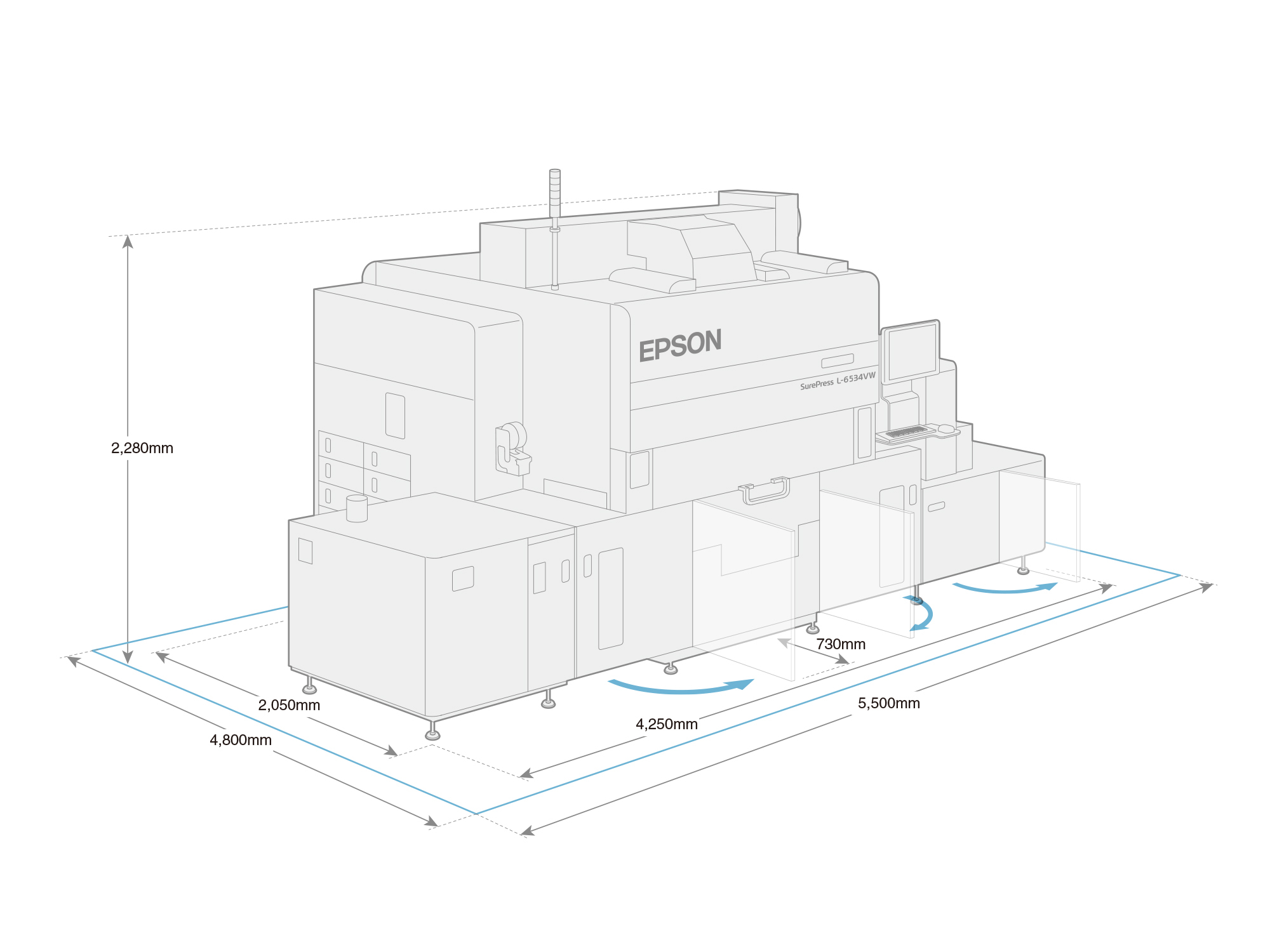

| Required space (W x D x H) | 5500 x 4800 x 2800 mm |
| Weight | 2640 kg |
| Package width | 2050 mm |
| Package depth | 6600 mm |
| Package height | 2300 mm |
| Package weight | 3176 kg |
Performance
| Specification | Value |
|---|---|
| Compressed air pressure | 0.5 - 1 MPa |
| Main unit exhaust diameter | 25 cm |
| Corona treater exhaust diameter | 10 cm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Japan |
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Maximum media width | 80 - 340 |
| Media types supported | Adhesive paper, adhesive film, single-layer paper, and single-layer film |
| Number of print cartridges | 7 |
| Print head | PrecisionCore TFP |
| Print resolution | 600 x 1200 DPI |
| Print speed | 833.3 mm/sec |
