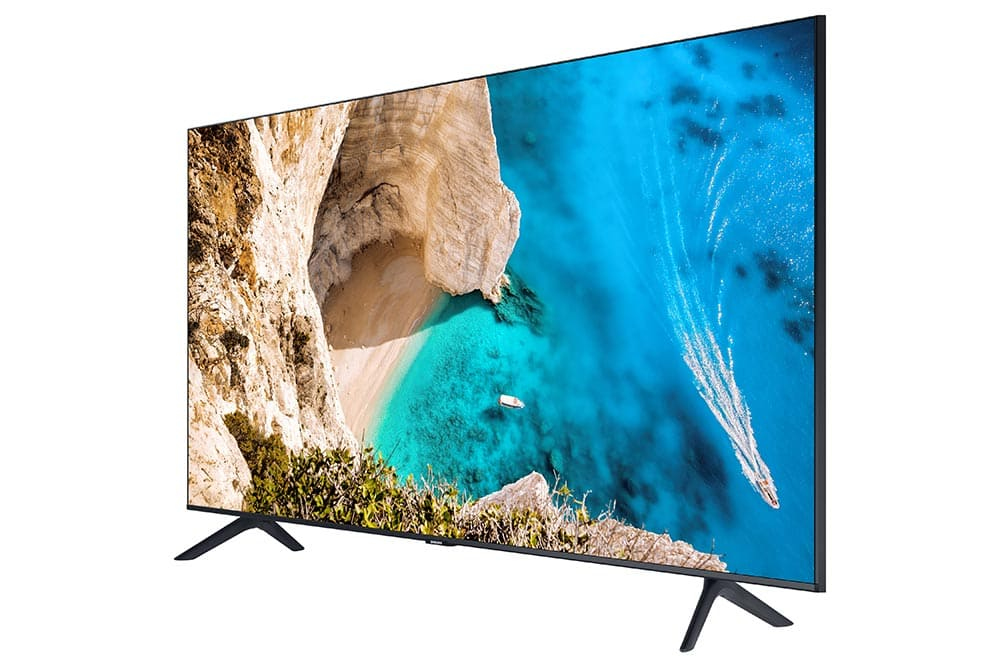

HG75ET690UB hospitality TV
190.5 cm (75") 4K Ultra HD Smart TV Black 20 W
Model HG75ET690UBEAN 8806090520792
81 specifications
- Display190.5 cm (75")
- Resolution3840 x 2160 pixels
- Energy classG
- OSTizen
- ColourBlack
- Smart TVYes
Overview
- Display
- 190.5 cm (75")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- OS
- Tizen
- Colour
- Black
- Smart TV
- Yes
- Brand
- Samsung
- Category
- Hospitality TV
- Model
- HG75ET690UB
- Part numbers
- HG75ET690UB, HG75ET690UBXXU, HG75ET690UBXEN
- EAN / UPC
- 8806090520792, 8806090527791
- Also known as
- Samsung HG75ET690UB hospitality TV 190.5 cm (75") 4K Ultra HD Smart TV Black 20 W
Specifications
81 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 190.5 cm (75") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| Screen shape | Flat |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 189 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
Performance
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Operating system installed | Tizen |
| Electronic Programme Guide (EPG) | Yes |
| Auto power off | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |
| Game mode | Yes |
| Teletext function | Yes |
Hospitality features
| Specification | Value |
|---|---|
| Hospitality home menu | Yes |
| Hotel channel list | Yes |
| Hospitality Plug and Play | Yes |
| Welcome message | Yes |
| Clock back up supply | Yes |
| My Channel function | Yes |
| Multi-code remote control | Yes |
| Screwed battery cover | Yes |
| Music mode backlight on/off | Yes |
| USB cloning | Yes |
| Smoovie compatibility | Yes |
| Subtitles function | Yes |
| Auto source mode | Yes |
| Soundbar compatibility | Yes |
| Logo display with time-out setting (BMP/movie) | Yes |
| Alarm clock | Yes |
| Content management solution | Samsung LYNK REACH |
| LYNK REACH version | 4.0 |
| Security mode | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| Composite video in | 1 |
| RF ports quantity | 1 |
| Consumer Electronics Control (CEC) | Anynet+ |
| Common interface Plus (CI+) | Yes |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Audio decoders | Dolby Digital Plus |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Web browser | Yes |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 154 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 250 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 185 kWh |
| Energy consumption (HDR) per 1000 hours | 230 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1673.2 mm |
| Depth (with stand) | 341.1 mm |
| Height (with stand) | 1074.9 mm |
| Weight (with stand) | 31.3 kg |
| Width (without stand) | 1673.2 mm |
| Depth (without stand) | 59.9 mm |
| Height (without stand) | 958.2 mm |
| Weight (without stand) | 30.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1840 mm |
| Package depth | 198 mm |
| Package height | 1118 mm |
| Package weight | 41.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | TM1240A |
| Mounting kit | Yes |
| Desktop stand | Yes |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
