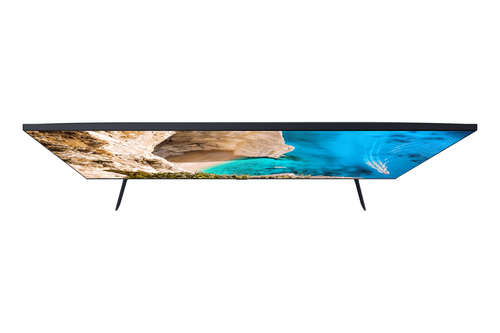

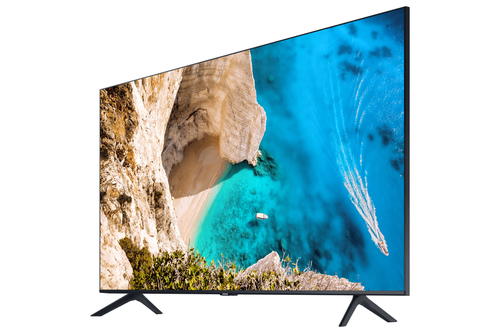

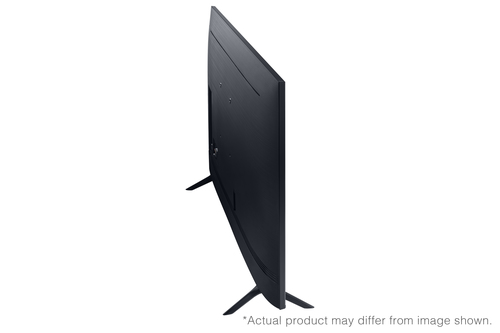

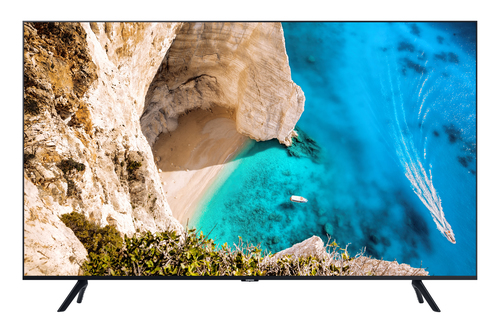

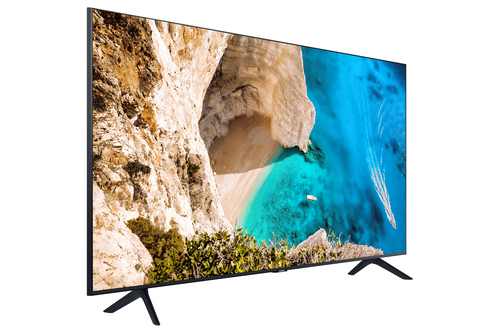

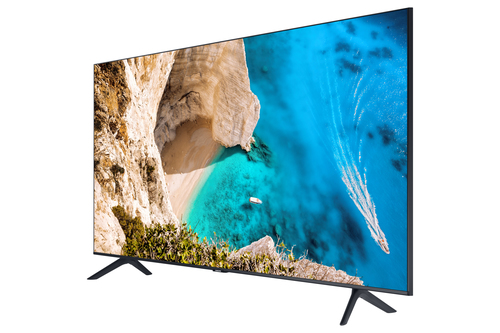

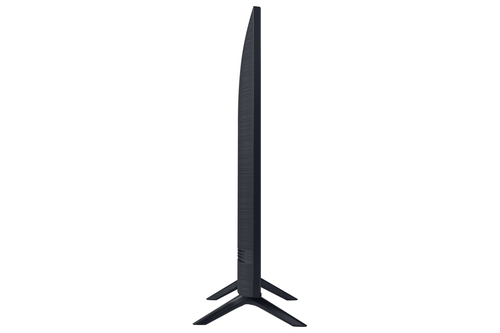

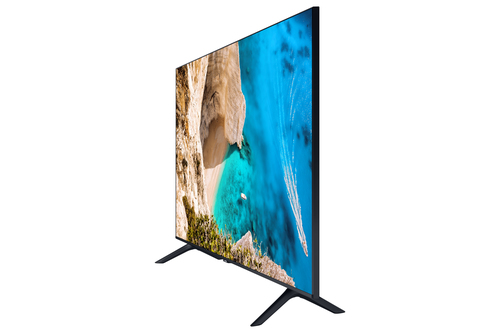

Samsung HG65EJ690YB 165.1 cm (65") 4K Ultra HD Smart TV Black 20 W

Samsung HG65EJ690YB 165.1 cm (65") 4K Ultra HD Smart TV Black 20 W

Model HG65EJ690YBPart no. HG65EJ690YBXENEAN 8806092892057

98 specifications

Display165.1 cm (65")
Resolution3840 x 2160 pixels
Energy classG
ColourBlack
High Dynamic Range (HDR) supportedYes
HDMI ports quantity3

See all specifications

Overview

Display: 165.1 cm (65")
Resolution: 3840 x 2160 pixels
Energy class: G
Colour: Black
High Dynamic Range (HDR) supported: Yes
HDMI ports quantity: 3

Brand: Samsung
Category: Hospitality TV
Model: HG65EJ690YB
Part number: HG65EJ690YBXEN
EAN / UPC: 8806092892057
Also known as: Samsung HG65EJ690YB 165.1 cm (65") 4K Ultra HD Smart TV Black 20 W

Specifications

98 specifications in 12 groups

Display

Specification	Value
Display diagonal	165.1 cm (65")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	LED
Screen shape	Flat
Native aspect ratio	16:9
Motion interpolation technology	PQI (Picture Quality Index) 1300
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	163 cm
Picture processing technology	Samsung Ultra Clean View, Samsung Auto Motion Plus, Samsung Contrast Enhancer
Smart modes	Game, Movie, Natural
Native refresh rate	120 Hz

Design

Specification	Value
Product colour	Black
VESA mounting	Yes
Panel mounting interface	400 x 300 mm

Performance

Specification	Value
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
Smart TV	Yes
On Screen Display (OSD)	Yes
Electronic Programme Guide (EPG)	No
Auto power off	Yes
Sleep timer	Yes
Hybrid Broadcast Broadband TV (HbbTV)	Yes
ConnectShare (HDD)	Yes
ConnectShare (USB)	Yes
Game mode	Yes
Energy saving mode	Yes
Plug and Play	Yes
Teletext function	Yes

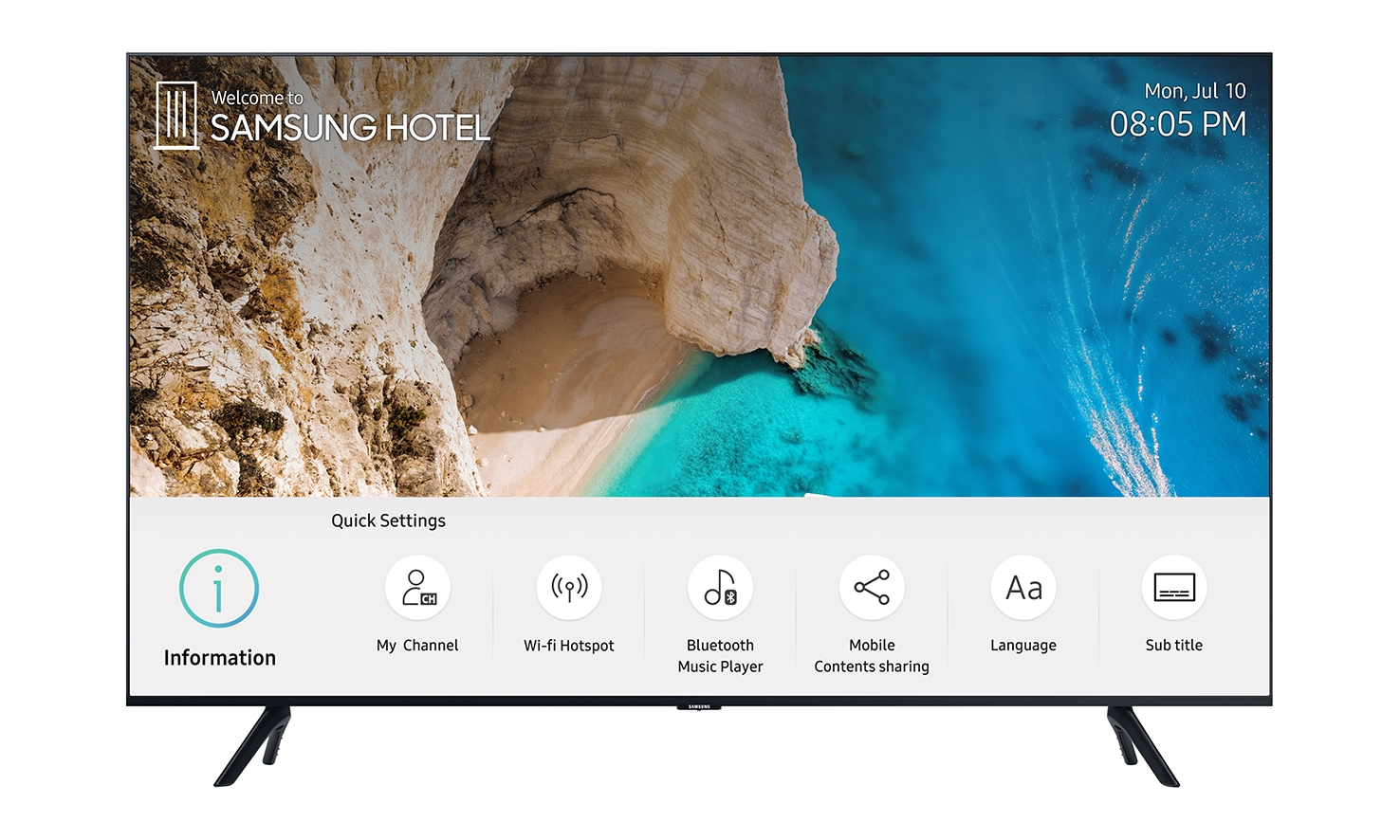

Hospitality features

Specification	Value
Hospitality home menu	Yes
Hotel channel list	Yes
Hospitality Plug and Play	Yes
Welcome message	Yes
Clock back up supply	Yes
My Channel function	Yes
Multi-code remote control	Yes
Music mode backlight on/off	Yes
USB cloning	Yes
Smoovie compatibility	Yes
Subtitles function	Yes
Auto source mode	Yes
Soundbar compatibility	Yes
Logo display with time-out setting (BMP/movie)	Yes
Alarm clock	Yes
Content management solution	Samsung LYNK REACH
LYNK REACH version	4.0
Security mode	Yes
Hotel mode	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	3
DVI port	No
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
Composite video in	1
Digital audio optical out	1
RF ports quantity	2
RJ-12 ports quantity	1
Consumer Electronics Control (CEC)	Anynet+
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Common interface Plus (CI+) version	1.4

Audio

Specification	Value
Number of speakers	2
RMS rated power	20 W
Audio decoders	Dolby Digital Plus

Network

Specification	Value
Wi-Fi	Yes
Bluetooth	Yes
Ethernet LAN	Yes

Power

Specification	Value
Power consumption (typical)	136 W
Power consumption (standby)	0.5 W
Power consumption (max)	195 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	136 kWh
Energy consumption (HDR) per 1000 hours	193 kWh
AC input voltage	220-240 V
AC input frequency	50-60 Hz
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	1449.4 mm
Depth (with stand)	282.1 mm
Height (with stand)	906.6 mm
Weight (with stand)	21.4 kg
Width (without stand)	1449.4 mm
Depth (without stand)	59.9 mm
Height (without stand)	830.3 mm
Weight (without stand)	21.1 kg

Packaging data

Specification	Value
Package width	1606 mm
Package depth	184 mm
Package height	963 mm
Package weight	27.7 kg
Package type	Box

Packaging content

Specification	Value
Remote control included	Yes
Remote control type	TM1240A
Cables included	AC
Mounting kit	Yes

TV tuner

Specification	Value
Tuner type	Analog & digital
Digital signal format system	DVB-T2, DVB-C, DVB-S2
Auto channel search	Yes
