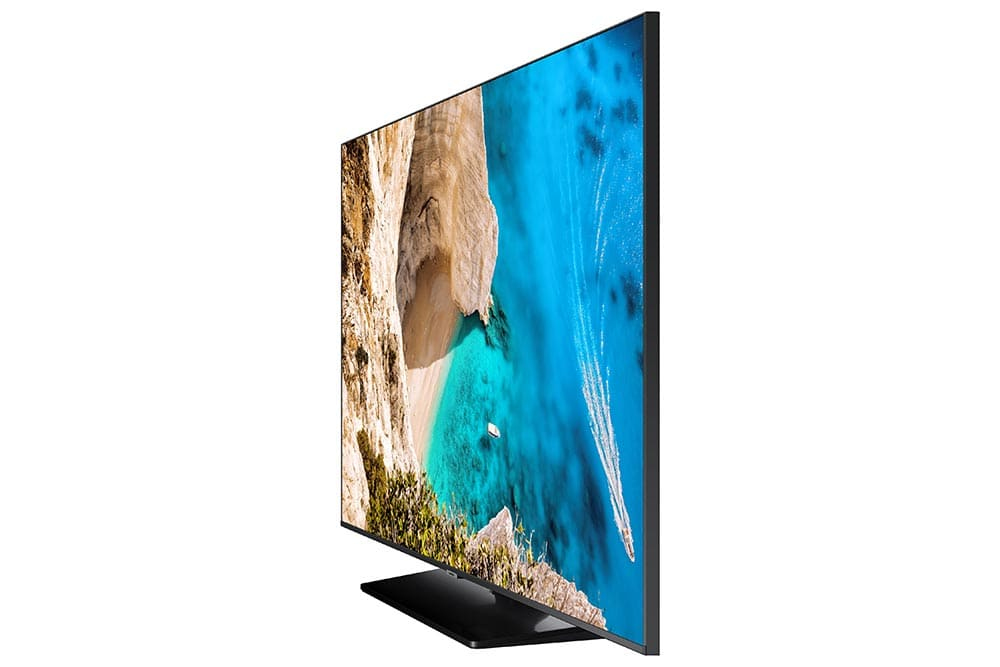

HG55ET690 139.7 cm (55") 4K Ultra HD Smart TV Black 20 W
Model HG55ET690Part no. HG55ET690UAXXU
86 specifications
- Display139.7 cm (55")
- Resolution3840 x 2160 pixels
- Energy classG
- OSTizen
- ColourBlack
- Smart TVYes
Overview
- Display
- 139.7 cm (55")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- OS
- Tizen
- Colour
- Black
- Smart TV
- Yes
- Brand
- Samsung
- Category
- Hospitality TV
- Model
- HG55ET690
- Part numbers
- HG55ET690UAXXU, HG55ET690UEXXU, HG55ET690UAXEN
- Also known as
- Samsung HG55ET690 139.7 cm (55") 4K Ultra HD Smart TV Black 20 W
Specifications
86 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 139.7 cm (55") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Motion interpolation technology | Motion Rate 120 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 138 cm |
| Picture processing technology | Samsung Auto Motion Plus |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
Performance
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Operating system installed | Tizen |
| On Screen Display (OSD) | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Auto power off | Yes |
| Sleep timer | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |
| Power on mode | Yes |
| Teletext function | Yes |
Hospitality features
| Specification | Value |
|---|---|
| Hospitality home menu | Yes |
| Hotel channel list | Yes |
| Hospitality Plug and Play | Yes |
| Welcome message | Yes |
| External clock compatibility | No |
| Clock back up supply | Yes |
| My Channel function | Yes |
| Screwed battery cover | Yes |
| Music mode backlight on/off | Yes |
| USB cloning | Yes |
| Smoovie compatibility | Yes |
| Subtitles function | Yes |
| Auto source mode | Yes |
| Soundbar compatibility | Yes |
| Logo display with time-out setting (BMP/movie) | Yes |
| LYNK REACH version | 4.0 |
| Security mode | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Composite video in | 1 |
| Audio (L/R) out | 1 |
| RF ports quantity | 1 |
| Consumer Electronics Control (CEC) | Anynet+ |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.4 |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 20 W |
| Audio decoders | Dolby Digital Plus |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Web browser | Yes |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 95 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 145 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 114 kWh |
| Energy consumption (HDR) per 1000 hours | 140 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1230.5 mm |
| Depth (with stand) | 226.5 mm |
| Height (with stand) | 759.8 mm |
| Weight (with stand) | 17.5 kg |
| Width (without stand) | 1230.5 mm |
| Depth (without stand) | 59.9 mm |
| Height (without stand) | 707.2 mm |
| Weight (without stand) | 14.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1467 mm |
| Package depth | 158 mm |
| Package height | 843 mm |
| Package weight | 22 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | TM1240A |
| Cables included | AC |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
