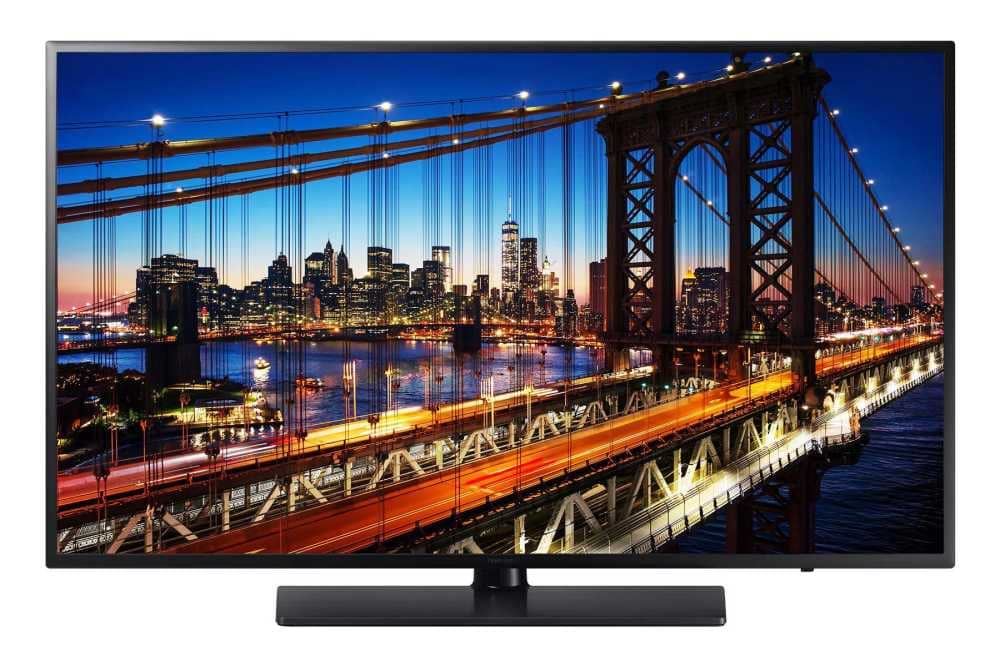

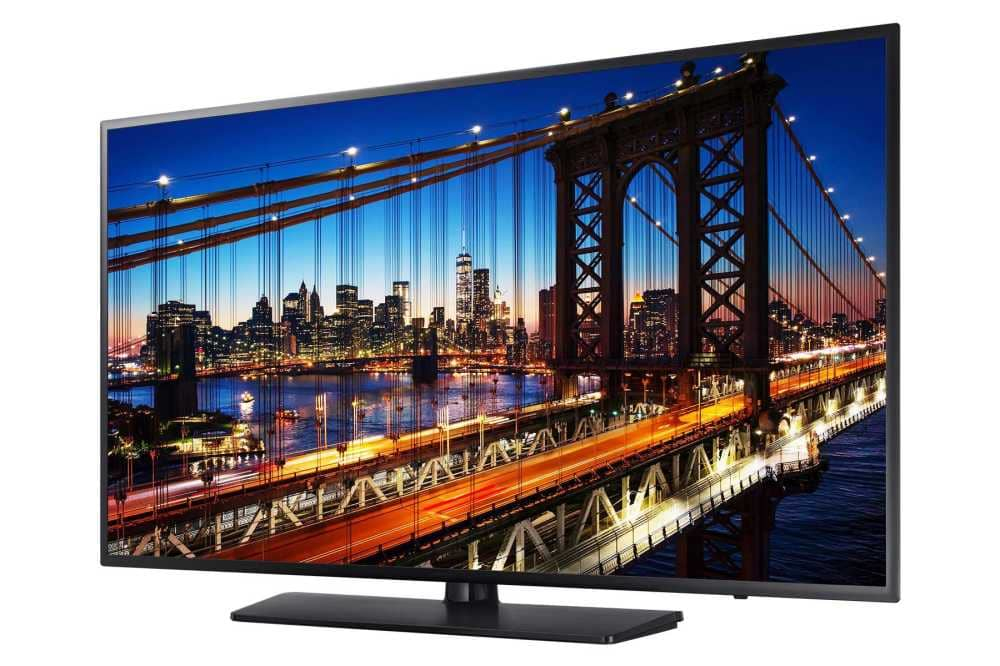

HG55EF690DBXCI hospitality TV
139.7 cm (55") Full HD Smart TV Titanium 20 W
Model HG55EF690DBXCI
80 specifications
- Display139.7 cm (55")
- Resolution1920 x 1080 pixels
- OSTizen
- ColourTitanium
- Smart TVYes
- HDMI ports quantity3
Overview
- Display
- 139.7 cm (55")
- Resolution
- 1920 x 1080 pixels
- OS
- Tizen
- Colour
- Titanium
- Smart TV
- Yes
- HDMI ports quantity
- 3
- Brand
- Samsung
- Category
- Hospitality TV
- Model
- HG55EF690DBXCI
- Part number
- HG55EF690DBXCI
- Also known as
- Samsung HG55EF690DBXCI hospitality TV 139.7 cm (55") Full HD Smart TV Titanium 20 W
Specifications
80 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 139.7 cm (55") |
| HD type | Full HD |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
Design
| Specification | Value |
|---|---|
| Product colour | Titanium |
| VESA mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Operating system installed | Tizen |
| On Screen Display (OSD) | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Auto power off | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |
| Game mode | Yes |
| Power on mode | Yes |
| Teletext function | Yes |
Hospitality features
| Specification | Value |
|---|---|
| Hospitality home menu | Yes |
| Hotel channel list | Yes |
| Hospitality Plug and Play | Yes |
| Welcome message | Yes |
| External clock compatibility | Yes |
| My Channel function | Yes |
| Multi-code remote control | Yes |
| Music mode backlight on/off | Yes |
| USB cloning | Yes |
| Smoovie compatibility | Yes |
| Subtitles function | Yes |
| Auto source mode | Yes |
| Soundbar compatibility | Yes |
| Logo display with time-out setting (BMP/movie) | Yes |
| Content management solution | Samsung LYNK REACH |
| LYNK REACH version | 4.0 |
| Security mode | Yes |
| Hotel mode | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Digital audio optical out | 1 |
| RF ports quantity | 1 |
| RJ-12 ports quantity | 1 |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.3 |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Audio decoders | Dolby Digital Plus |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Web browser | Yes |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 64 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 110 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1241.6 mm |
| Depth (with stand) | 226.5 mm |
| Height (with stand) | 774.3 mm |
| Weight (with stand) | 19.2 kg |
| Width (without stand) | 1241.6 mm |
| Depth (without stand) | 54.5 mm |
| Height (without stand) | 721.4 mm |
| Weight (without stand) | 16.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1424 mm |
| Package depth | 140 mm |
| Package height | 812 mm |
| Package weight | 24.7 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | TM1240A |
| Mounting kit | Yes |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
