HG49EE690 124.5 cm (49") Full HD Titanium 20 W
Model HG49EE690Part no. HG49EE690DBXEN
84 specifications
- Display124.5 cm (49")
- Resolution1920 x 1080 pixels
- Energy classG
- ColourTitanium
- On Screen Display (OSD)Yes
- HDMI ports quantity3
Overview
- Display
- 124.5 cm (49")
- Resolution
- 1920 x 1080 pixels
- Energy class
- G
- Colour
- Titanium
- On Screen Display (OSD)
- Yes
- HDMI ports quantity
- 3
- Brand
- Samsung
- Category
- Hospitality TV
- Model
- HG49EE690
- Part number
- HG49EE690DBXEN
- Also known as
- Samsung HG49EE690 124.5 cm (49") Full HD Titanium 20 W
Specifications
84 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 124.5 cm (49") |
| HD type | Full HD |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Display diagonal (metric) | 123 cm |
| Picture processing technology | Samsung HyperReal Engine |
| Smart modes | Game, Movie, Sports |
Design
| Specification | Value |
|---|---|
| Product colour | Titanium |
| On/off switch | Yes |
Performance
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Voice control | Yes |
| Auto power off | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Game mode | Yes |
| Energy saving mode | Yes |
| Power on mode | Yes |
| Picture-in-Picture | Yes |
| Teletext function | Yes |
| Lifestyle apps | Samsung Smart View |
Hospitality features
| Specification | Value |
|---|---|
| Hospitality home menu | Yes |
| Hospitality Plug and Play | Yes |
| Welcome message | Yes |
| External clock compatibility | Yes |
| Clock back up supply | Yes |
| My Channel function | Yes |
| Software clock | Yes |
| Multi-code remote control | Yes |
| Screwed battery cover | Yes |
| Music mode backlight on/off | Yes |
| USB cloning | Yes |
| Smoovie compatibility | Yes |
| Subtitles function | Yes |
| Auto source mode | Yes |
| Soundbar compatibility | Yes |
| Logo display with time-out setting (BMP/movie) | Yes |
| LYNK REACH version | 4.0 |
| Security mode | Yes |

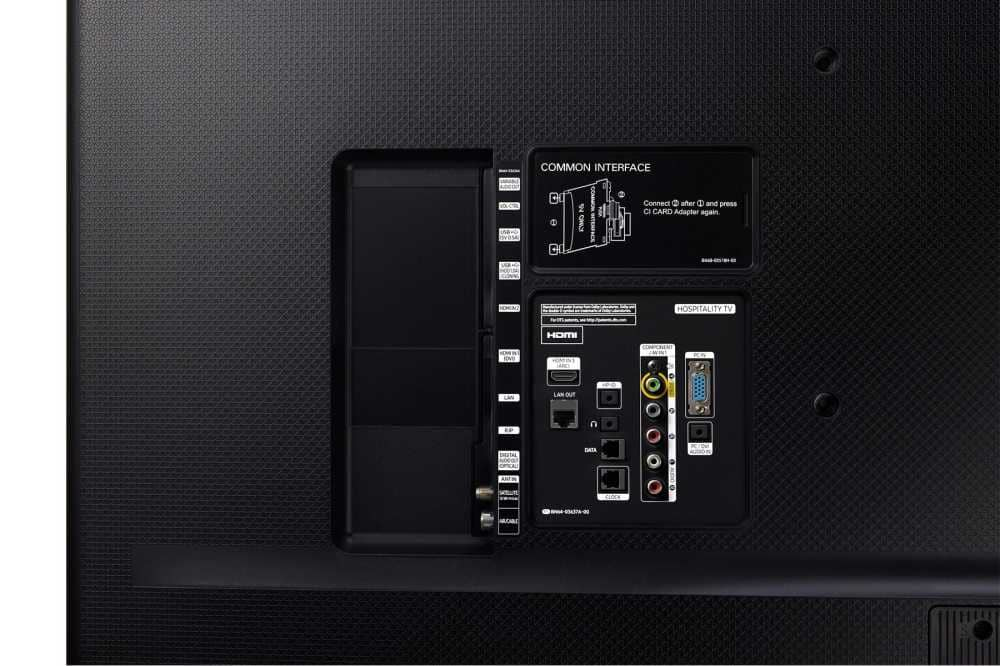

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| DVI port | No |
| DVI-D ports quantity | 0 |
| S-Video inputs quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Digital audio optical out | 1 |
| PC in (D-Sub) | Yes |
| RF ports quantity | 1 |
| PC Audio in | Yes |
| RJ-12 ports quantity | 1 |
| Consumer Electronics Control (CEC) | Anynet+ |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.3 |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Audio decoders | DTS, Dolby Digital, Dolby Digital Plus |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 50 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 70 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1105.8 mm |
| Depth (with stand) | 226.5 mm |
| Height (with stand) | 697.4 mm |
| Width (without stand) | 1105.8 mm |
| Depth (without stand) | 54.7 mm |
| Height (without stand) | 639.2 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | TM1240A |
| Cables included | AC |
| Mounting kit | Yes |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
