HG32EJ690FU 81.3 cm (32") 4K Ultra HD Smart TV Black 20 W
Model HG32EJ690FUPart no. HG32EJ690FUXXUEAN 8806092586819
80 specifications
- Display81.3 cm (32")
- Resolution1920 x 1080 pixels
- Energy classG
- ColourBlack
- Smart TVYes
- Ethernet LAN (RJ-45) ports1
Overview
- Display
- 81.3 cm (32")
- Resolution
- 1920 x 1080 pixels
- Energy class
- G
- Colour
- Black
- Smart TV
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Samsung
- Category
- Hospitality TV
- Model
- HG32EJ690FU
- Part numbers
- HG32EJ690FUXXU, HG32EJ690FUXEN
- EAN / UPC
- 8806092586819, 8806092656864
- Also known as
- Samsung HG32EJ690FU 81.3 cm (32") 4K Ultra HD Smart TV Black 20 W
Specifications
80 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 81.3 cm (32") |
| HD type | 4K Ultra HD |
| Display resolution | 1920 x 1080 pixels |
| Display technology | QLED |
| Native aspect ratio | 16:9 |
| Display diagonal (metric) | 80 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
Performance
| Specification | Value |
|---|---|
| Smart TV | Yes |
| On Screen Display (OSD) | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Auto power off | Yes |
| Sleep timer | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |
| Energy saving mode | Yes |
| Power on mode | Yes |
| Picture-in-Picture | No |
| Teletext function | Yes |
Hospitality features
| Specification | Value |
|---|---|
| Hospitality home menu | Yes |
| Hotel channel list | Yes |
| Hospitality Plug and Play | Yes |
| Welcome message | Yes |
| Clock back up supply | Yes |
| My Channel function | Yes |
| Software clock | No |
| Music mode backlight on/off | No |
| USB cloning | Yes |
| Smoovie compatibility | Yes |
| Alarm clock | Yes |
| Content management solution | Samsung LYNK REACH |
| LYNK REACH version | 4.0 |
| Security mode | Yes |

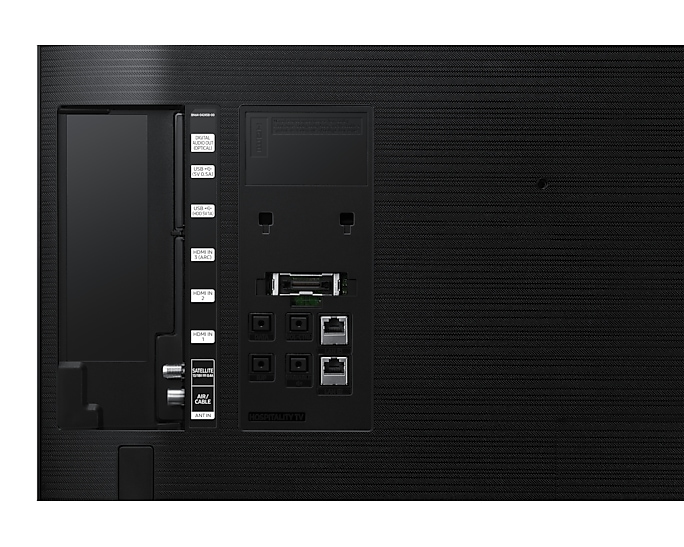

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| Audio (L/R) out | 0 |
| Digital audio optical out | 1 |
| RF ports quantity | 1 |
| RJ-12 ports quantity | 1 |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.4 |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Built-in subwoofer | No |
| Audio decoders | Dolby Digital Plus |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 33 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 80 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 33 kWh |
| Energy consumption (HDR) per 1000 hours | 46 kWh |
| AC input voltage | 220-240 V |
| AC input frequency | 50-60 Hz |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 723.3 mm |
| Depth (with stand) | 154.2 mm |
| Height (with stand) | 477.7 mm |
| Weight (with stand) | 5.4 kg |
| Width (without stand) | 723.3 mm |
| Depth (without stand) | 30.3 mm |
| Height (without stand) | 425.6 mm |
| Weight (without stand) | 5.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 811 mm |
| Package depth | 120 mm |
| Package height | 530 mm |
| Package weight | 7.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | TM1240A |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85287280 |
