Samsung HG28ED690AB 71.1 cm (28") HD 250 cd/m² Black 10 W
Model HG28ED690ABPart no. HG28ED690ABXXUEAN 8806086853903
94 specifications
- Display71.1 cm (28")
- Resolution1366 x 768 pixels
- Energy classA+
- ColourBlack
- On Screen Display (OSD)Yes
- HDMI ports quantity3
Overview
- Display
- 71.1 cm (28")
- Resolution
- 1366 x 768 pixels
- Energy class
- A+
- Colour
- Black
- On Screen Display (OSD)
- Yes
- HDMI ports quantity
- 3
- Brand
- Samsung
- Category
- Hospitality TV
- Model
- HG28ED690AB
- Part number
- HG28ED690ABXXU
- EAN / UPC
- 8806086853903
- Also known as
- Samsung HG28ED690AB 71.1 cm (28") HD 250 cd/m² Black 10 W
Specifications
94 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 71.1 cm (28") |
| HD type | HD |
| Display resolution | 1366 x 768 pixels |
| Display technology | LED |
| Screen shape | Flat |
| Display brightness | 250 cd/m² |
| Response time | 6.5 ms |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 70 cm |
| Picture processing technology | Samsung HyperReal Engine, Samsung Wide Color Enhancer, Samsung Wide Color Enhancer Plus |
| Smart modes | Game, Movie, Music, Sports |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On/off switch | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Auto power off | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Game mode | Yes |
| Energy saving mode | Yes |
| Power on mode | Yes |
| Picture-in-Picture | Yes |
| Teletext function | Yes |
| Lifestyle apps | Samsung Smart View |
Hospitality features
| Specification | Value |
|---|---|
| Hospitality home menu | Yes |
| Hospitality Plug and Play | Yes |
| Welcome message | Yes |
| External clock compatibility | Yes |
| Clock back up supply | Yes |
| My Channel function | Yes |
| Software clock | Yes |
| Multi-code remote control | Yes |
| Screwed battery cover | Yes |
| Music mode backlight on/off | Yes |
| USB cloning | Yes |
| Smoovie compatibility | Yes |
| Subtitles function | Yes |
| Auto source mode | Yes |
| Soundbar compatibility | Yes |
| Logo display with time-out setting (BMP/movie) | Yes |

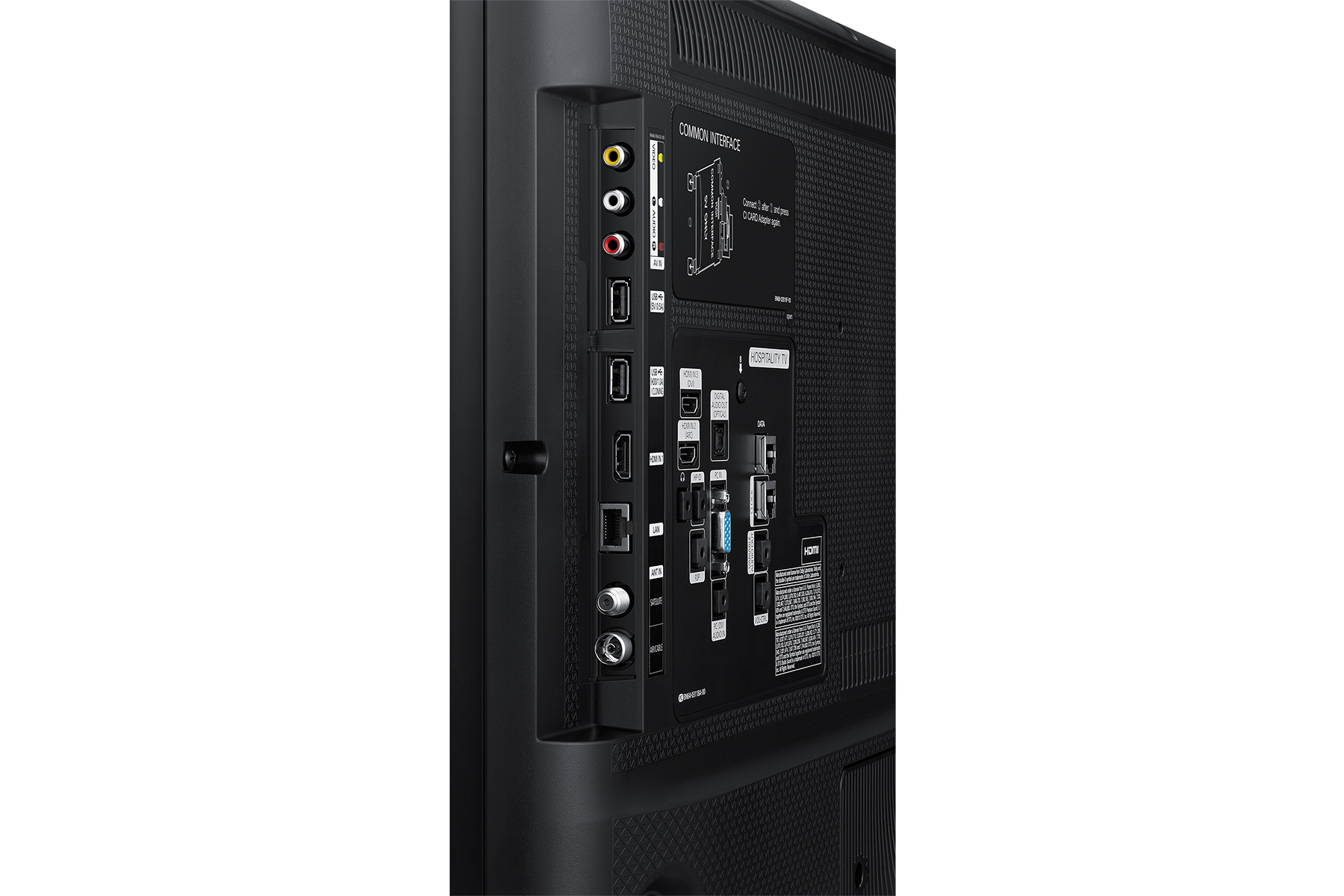

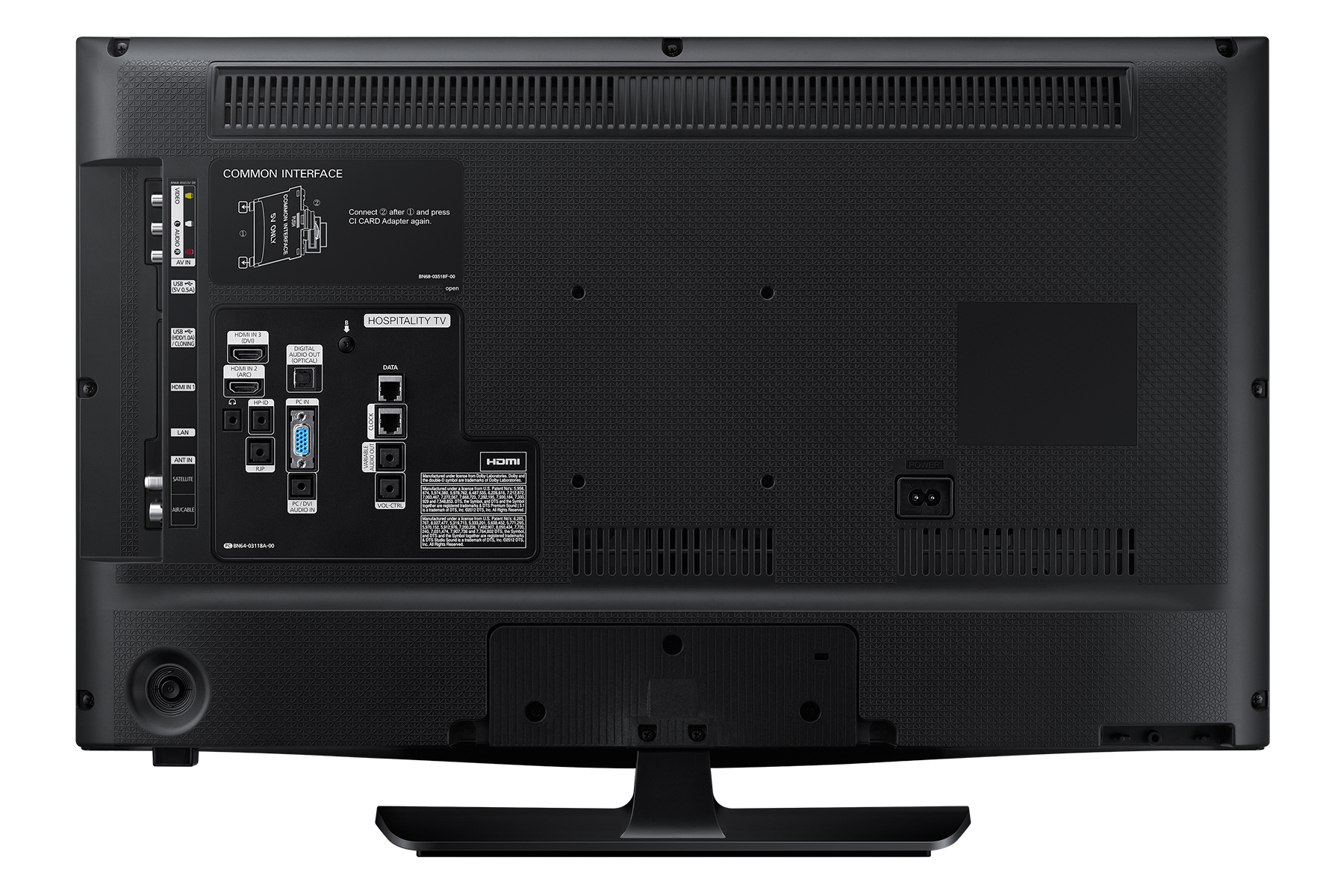

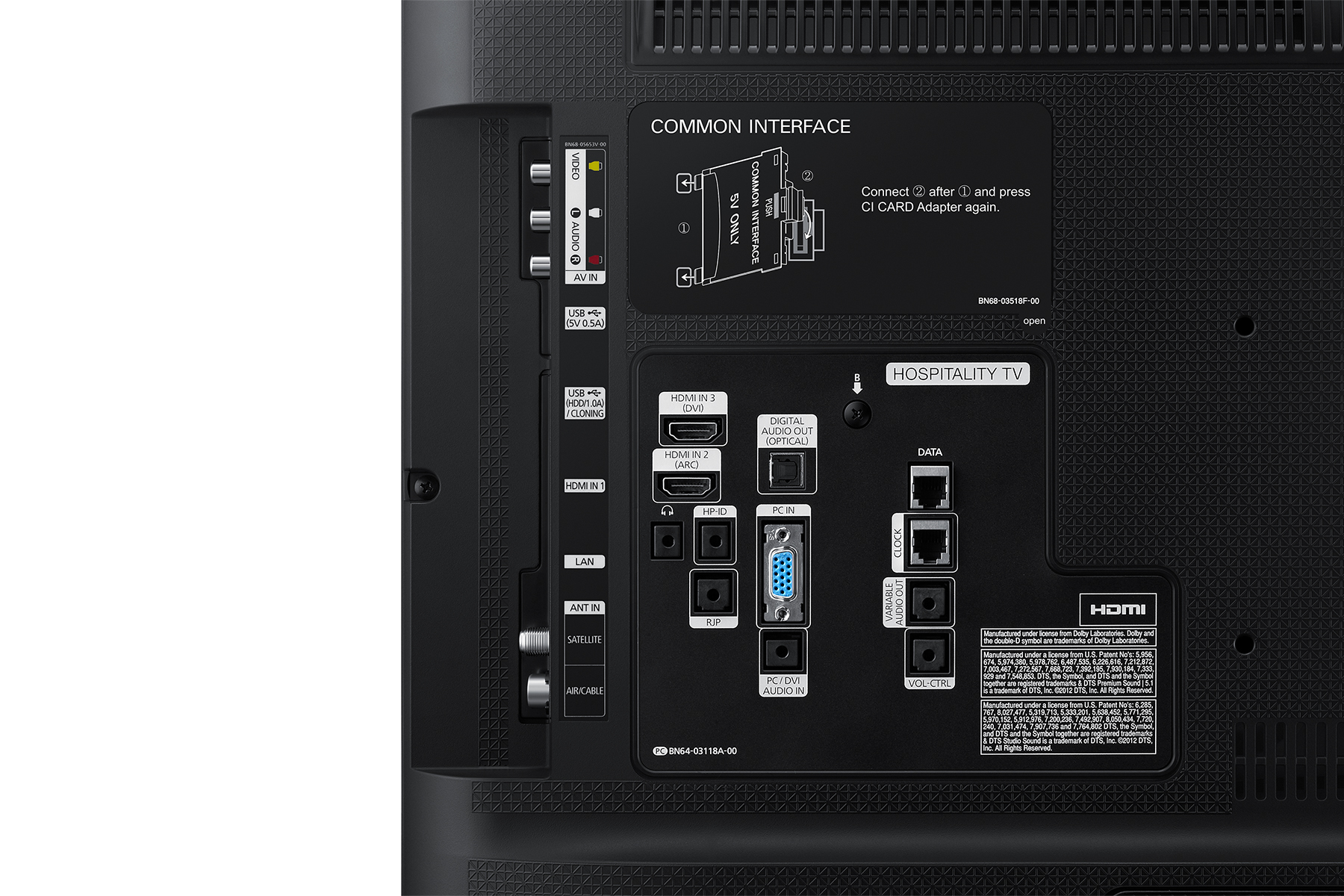

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 1.4a |
| DVI port | No |
| DVI-D ports quantity | 0 |
| S-Video inputs quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Composite video in | 1 |
| Digital audio optical out | 1 |
| PC in (D-Sub) | Yes |
| RF ports quantity | 2 |
| PC Audio in | Yes |
| RJ-12 ports quantity | 1 |
| Consumer Electronics Control (CEC) | Anynet+ |
| Common interface (CI) | Yes |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Audio decoders | DTS, Dolby Digital, DTS Premium Sound 5.1, DTS Studio Sound, Dolby Digital Plus |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Web browser | Yes |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 21 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 57 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 643.4 mm |
| Depth (with stand) | 163.4 mm |
| Height (with stand) | 435 mm |
| Weight (with stand) | 4.1 kg |
| Width (without stand) | 643.4 mm |
| Depth (without stand) | 62.9 mm |
| Height (without stand) | 396.5 mm |
| Weight (without stand) | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | TM1240 |
| Cables included | AC |
| Mounting kit | Yes |
| Batteries included | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| External clock dimming control | Yes |
| LYNK SINC server compatibility | Yes |
| LYNK REACH server compatibility | Yes |
| H.Browser compatibility | Yes |
| Built-in speaker(s) | Yes |
| Annual energy consumption | 31 kWh |
| Energy efficiency class (legacy scale) | A+ |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-T2 |
| Auto channel search | Yes |
