Samsung HG24ED690AB 61 cm (24") HD 250 cd/m² Black 10 W
Model HG24ED690ABPart no. HG24ED690ABXXUEAN 8806086829168
88 specifications
- Display61 cm (24")
- Resolution1366 x 768 pixels
- Energy classA+
- ColourBlack
- On Screen Display (OSD)Yes
- HDMI ports quantity2
Overview
- Display
- 61 cm (24")
- Resolution
- 1366 x 768 pixels
- Energy class
- A+
- Colour
- Black
- On Screen Display (OSD)
- Yes
- HDMI ports quantity
- 2
- Brand
- Samsung
- Category
- Hospitality TV
- Model
- HG24ED690AB
- Part numbers
- HG24ED690ABXXU, HG24ED690ABXEN
- EAN / UPC
- 8806086829168
- Also known as
- Samsung HG24ED690AB 61 cm (24") HD 250 cd/m² Black 10 W
Specifications
88 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| HD type | HD |
| Display resolution | 1366 x 768 pixels |
| Display technology | LED |
| Screen shape | Flat |
| Display brightness | 250 cd/m² |
| Response time | 8.5 ms |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 59 cm |
| Picture processing technology | Samsung HyperReal Engine, Samsung Wide Color Enhancer, Samsung Wide Color Enhancer Plus |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| On/off switch | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Auto power off | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Game mode | Yes |
| Energy saving mode | Yes |
| Power on mode | Yes |
| Picture-in-Picture | Yes |
| Teletext function | Yes |
| Lifestyle apps | Samsung Smart View |
Hospitality features
| Specification | Value |
|---|---|
| Hospitality home menu | Yes |
| Hospitality Plug and Play | Yes |
| Welcome message | Yes |
| Clock back up supply | Yes |
| My Channel function | Yes |
| Software clock | Yes |
| Multi-code remote control | Yes |
| Screwed battery cover | Yes |
| Music mode backlight on/off | Yes |
| USB cloning | Yes |
| Smoovie compatibility | Yes |
| Subtitles function | Yes |
| Soundbar compatibility | Yes |
| Logo display with time-out setting (BMP/movie) | Yes |

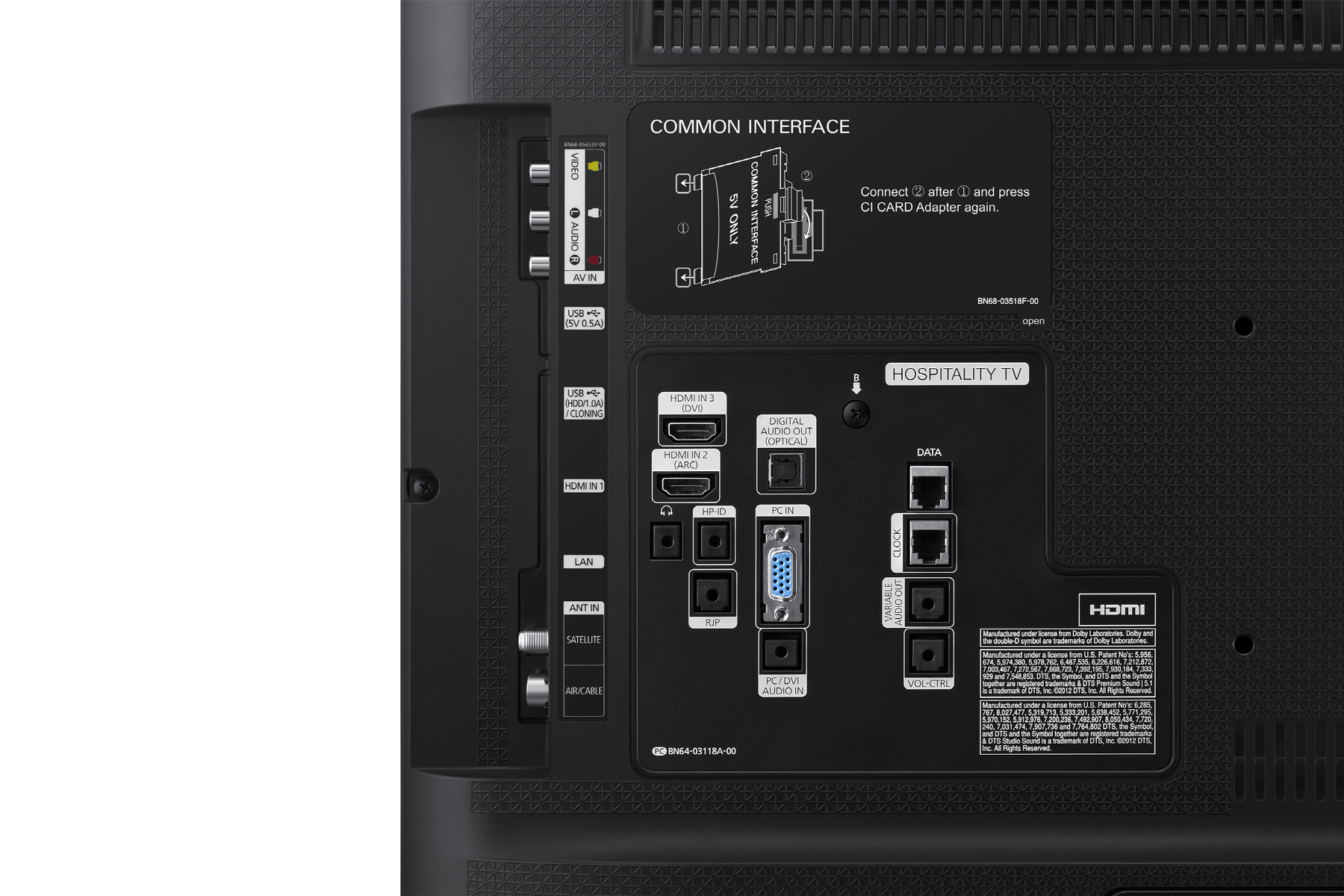

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| DVI port | No |
| DVI-D ports quantity | 0 |
| S-Video inputs quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Digital audio optical out | 1 |
| PC in (D-Sub) | Yes |
| RF ports quantity | 2 |
| PC Audio in | Yes |
| RJ-12 ports quantity | 1 |
| Consumer Electronics Control (CEC) | Anynet+ |
| Common interface (CI) | Yes |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Audio decoders | DTS, Dolby Digital, DTS Premium Sound 5.1, DTS Studio Sound, Dolby Digital Plus |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Web browser | Yes |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 50 W |
| AC input voltage | 220 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 561.8 mm |
| Depth (with stand) | 163.8 mm |
| Height (with stand) | 384.2 mm |
| Weight (with stand) | 4.1 kg |
| Width (without stand) | 516.8 mm |
| Depth (without stand) | 65.2 mm |
| Height (without stand) | 349.1 mm |
| Weight (without stand) | 3.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | TM1240 |
| Cables included | AC |
| Mounting kit | Yes |
| Batteries included | Yes |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
Other features
| Specification | Value |
|---|---|
| LYNK REACH server compatibility | Yes |
| H.Browser compatibility | Yes |
| Built-in speaker(s) | Yes |
| Annual energy consumption | 29 kWh |
| Energy efficiency class (legacy scale) | A+ |
