PianoCraft 332
Model PianoCraft 332Part no. MCR-332 SB
89 specifications
- TypeHome audio micro system
- Weight3 kg
- ColourSilver
- RMS rated power40 W
- Supported radio bandsFM
- Display typeFLT
Overview
- Type
- Home audio micro system
- Weight
- 3 kg
- Colour
- Silver
- RMS rated power
- 40 W
- Supported radio bands
- FM
- Display type
- FLT
- Brand
- Yamaha
- Category
- Home Audio System
- Model
- PianoCraft 332
- Part numbers
- MCR-332 SB, MCR-332
- Also known as
- Yamaha PianoCraft 332 Home audio micro system 40 W Silver
Specifications
89 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Type | Home audio micro system |
| Product colour | Silver |
| Optical disc player | Yes |
| Cassette deck | No |
| Number of decks | 1 deck(s) |
| Number of optical discs | 1 discs |
| CD changer | No |
| Disc loading type | Tray |
Multimedia
| Specification | Value |
|---|---|
| RMS rated power | 40 W |
| Speaker type | 2-way |
| Number of speakers | 2 |
| Speakers connectivity type | Banana connector/Binding posts |
| Built-in speaker(s) | No |
| Woofer diameter | 11 cm |
| Tweeter diameter | 2.5 cm |
| Impedance | 6 Ω |
| Total Harmonic Distortion (THD) | 0.04% |
| Frequency range | 60 - 38000 Hz |
| Audio D/A Converter (DAC) | 24-bit/44.1kHz |
| Bass reflex | Yes |
| Karaoke | No |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | FM |
| Tuner type | Digital |
| FM band range | 87.5 - 108 MHz |
| Internet radio | No |
Display
| Specification | Value |
|---|---|
| Display type | FLT |
| Backlight colour | White |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Microphone in | No |
| Digital audio optical out | 0 |
| Digital audio coaxial out | 0 |
| Audio (L/R) out | 0 |
| Line-in | No |
| Audio (L/R) in | 0 |
| AUX in | Yes |
| HDMI ports quantity | 0 |
| Composite video out | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Subwoofer out | Yes |
| Digital audio coaxial in | 0 |
| Digital audio optical in | 0 |
| Wireless connection | No |
| DC-in jack | No |
Performance
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| Card reader integrated | No |
| Disc types supported | CD, CD-R, CD-RW |
| Playback disc formats | CD audio |
| Audio formats supported | CD-A, MP3, WMA |
| Record playback | No |
Ergonomics
| Specification | Value |
|---|---|
| Integrated clock | No |
| Volume control | Digital |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 32 W |
| Power consumption (standby) | 0.3 W |
| Input frequency | 50 - 60 Hz |
| Input voltage | 220-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 118 mm |
| Height | 318 mm |
| Weight | 3 kg |
| Net weight | 7.6 kg |
Packaging content
| Specification | Value |
|---|---|

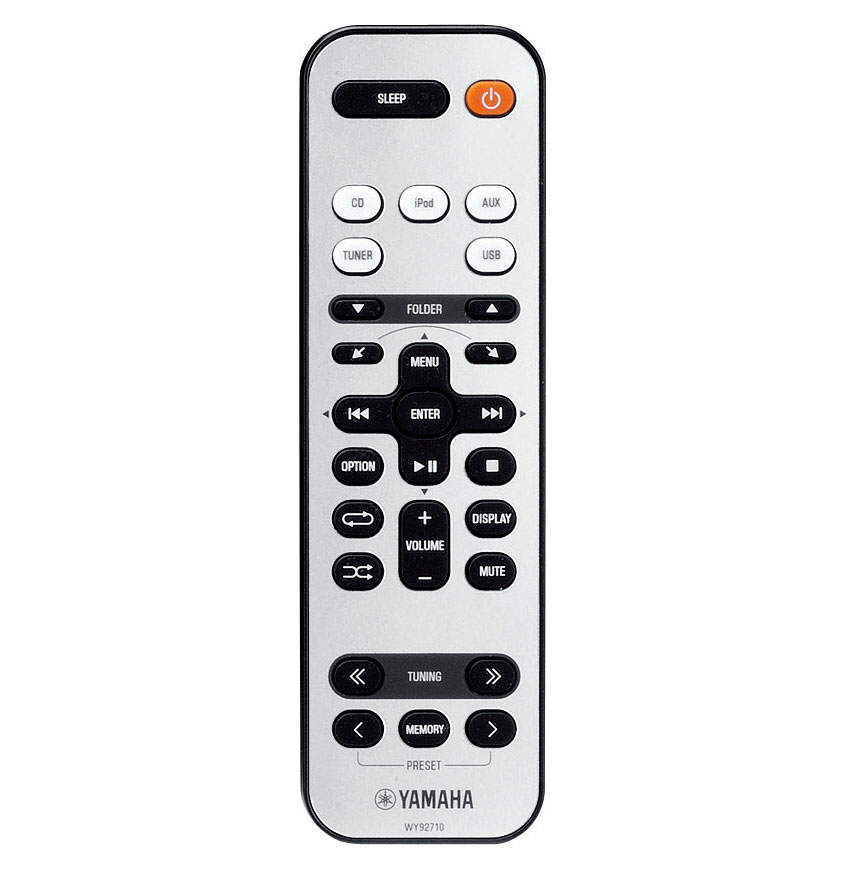

| Remote control included | Yes |
| Car kit | No |
| FM antenna | Yes |
Other features
| Specification | Value |
|---|---|
| Apple docking compatibility | iPad, iPhone, iPod |
| Audio recorder | 0 |
| Video recording | No |
| Video in | 0 |
| Video out | 0 |
| SCART ports quantity | 0 |
| Speaker width | 12.3 cm |
| Speaker depth | 20 cm |
| Speaker height | 29.9 cm |
| CD Text | Yes |
| Antenna type | 75 Ohm |
| Audio cinch in | 1 |
| Audio system | 2.1 |
| CD capacity | 1 discs |
| CD-R playback | Yes |
| CD-RW playback | Yes |
| DVD Audio playback | No |
| GPS (satellite) | No |
| Gross weight | 7.6 kg |
| Memory card included | No |
| Microphone mute | No |
| Speakers | 2 |
