VPC37-W55-G1 embedded computer Intel® Core™ i7
512 GB SSD 16 GB
Model VPC37-W55-G1EAN 766907028478
48 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- OSWindows 11 Pro
- Weight600 g
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- OS
- Windows 11 Pro
- Weight
- 600 g
- Processor manufacturer
- Intel
- Brand
- Viewsonic
- Category
- Embedded Computer
- Model
- VPC37-W55-G1
- Part number
- VPC37-W55-G1
- EAN / UPC
- 766907028478
- Also known as
- Viewsonic VPC37-W55-G1 embedded computer Intel® Core™ i7 512 GB SSD 16 GB
Specifications
48 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-1260P |
| Processor cores | 12 |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 28 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card dynamic frequency (max) | 1400 MHz |
| On-board graphics card OpenGL version | 4.6 |
| On-board graphics card 4K support | Yes |
| Discrete graphics card | No |
| Graphics card Open GL support | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |

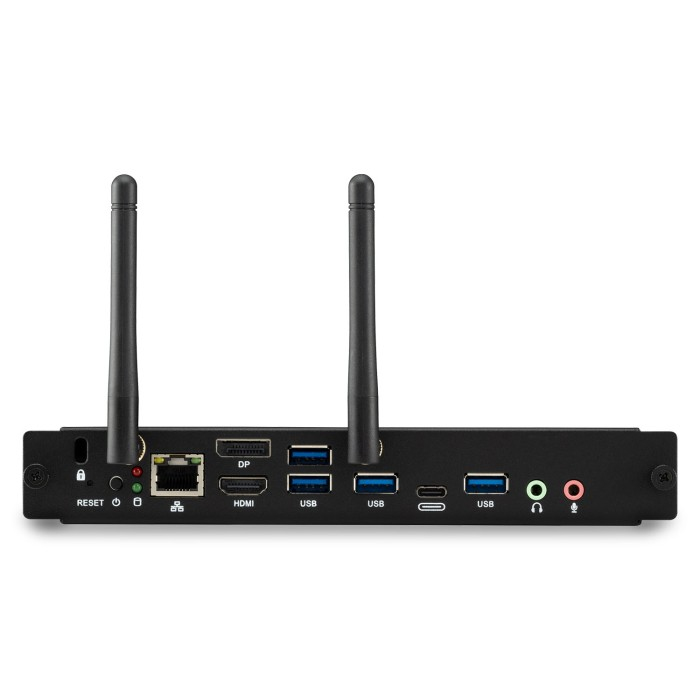

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
Performance
| Specification | Value |
|---|---|
| Number of antenna connectors | 2 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12-19 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 202 mm |
| Depth | 122.6 mm |
| Height | 30 mm |
| Weight | 600 g |
| Package width | 267 mm |
| Package depth | 192 mm |
| Package height | 72 mm |
| Package weight | 970 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), cTUVus |
