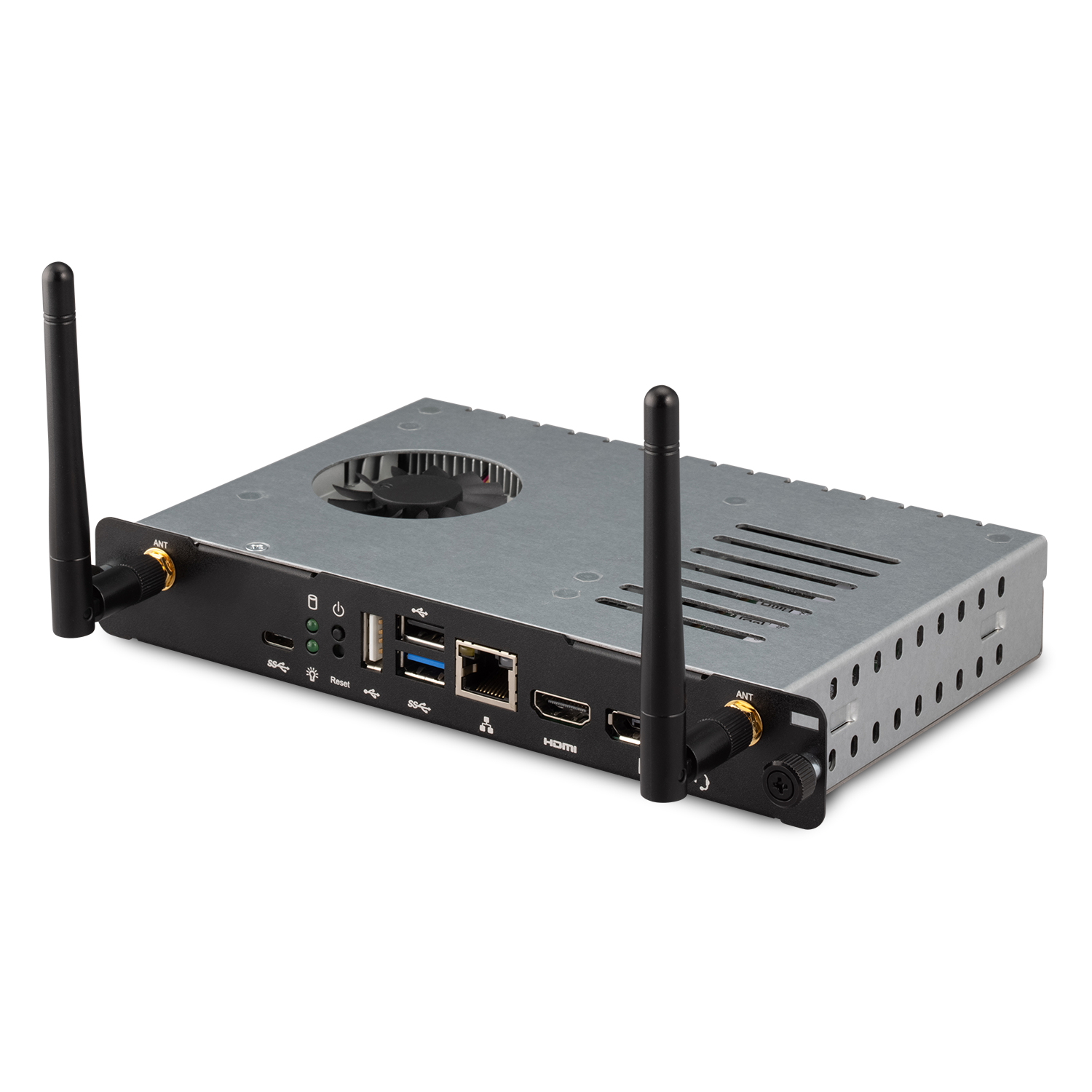

VPC2C-W33-O1 embedded computer
3.2 GHz Intel® Celeron® 256 GB SSD 8 GB
Model VPC2C-W33-O1EAN 766907011852
38 specifications
- ProcessorIntel® Celeron®
- Memory8 GB
- Storage256 GB
- Processor frequency3.2 GHz
- On-board graphics cardYes
- USB 2.0 ports quantity2
Overview
- Processor
- Intel® Celeron®
- Memory
- 8 GB
- Storage
- 256 GB
- Processor frequency
- 3.2 GHz
- On-board graphics card
- Yes
- USB 2.0 ports quantity
- 2
- Brand
- Viewsonic
- Category
- Embedded Computer
- Model
- VPC2C-W33-O1
- Part number
- VPC2C-W33-O1
- EAN / UPC
- 766907011852
- Also known as
- Viewsonic VPC2C-W33-O1 embedded computer 3.2 GHz Intel® Celeron® 256 GB SSD 8 GB
Specifications
38 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 3.2 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor cores | 2 |
| Processor cache | 2 MB |
| System bus rate | 8 GT/s |
| Processor threads | 2 |
| Processor lithography | 14 nm |
| PCI Express configurations | 1x8+2x4, 1x16, 2x8 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | LPDDR4 |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| NVMe | Yes |
| SSD interface | NVMe |
| SSD capacity | 256 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 630 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| USB ports quantity | 4 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 65 W |
| Power supply input voltage | 100 - 120 V |
| Power supply input frequency | 50 - 60 Hz |
| DC input voltage | 19 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80% |
