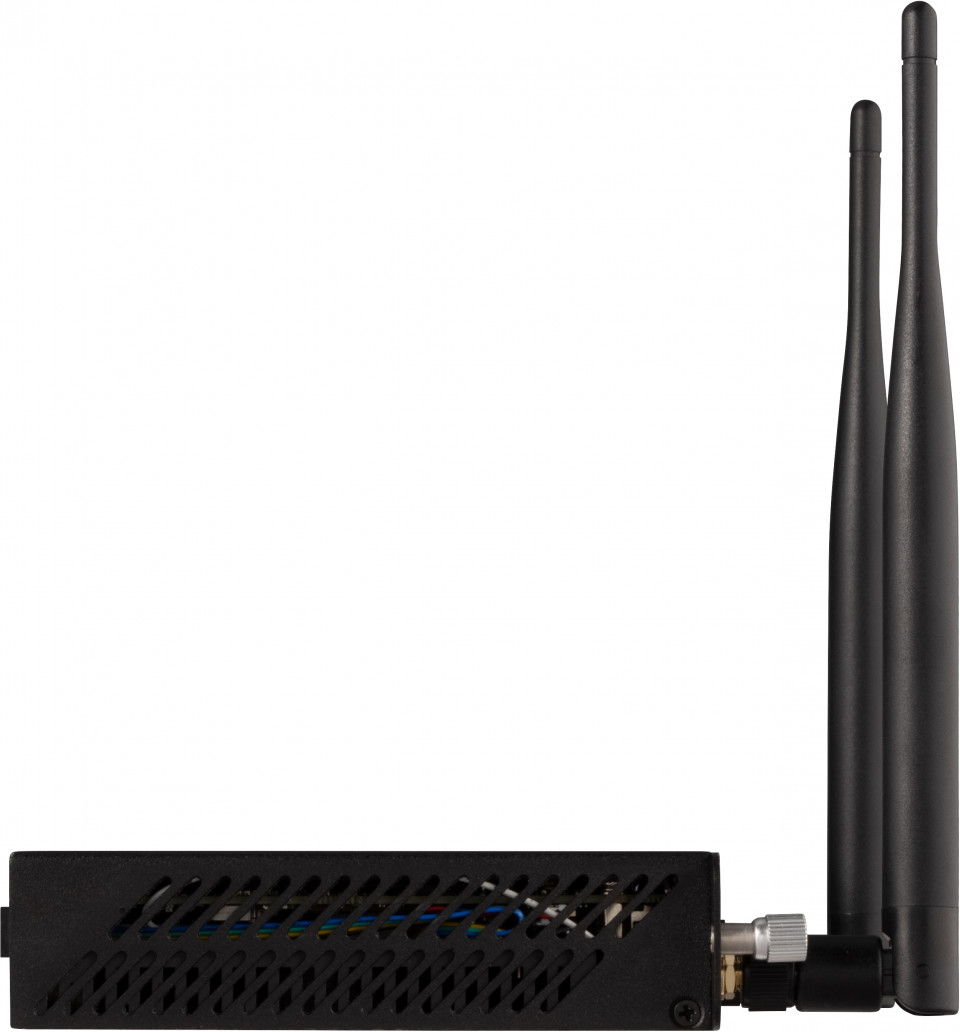

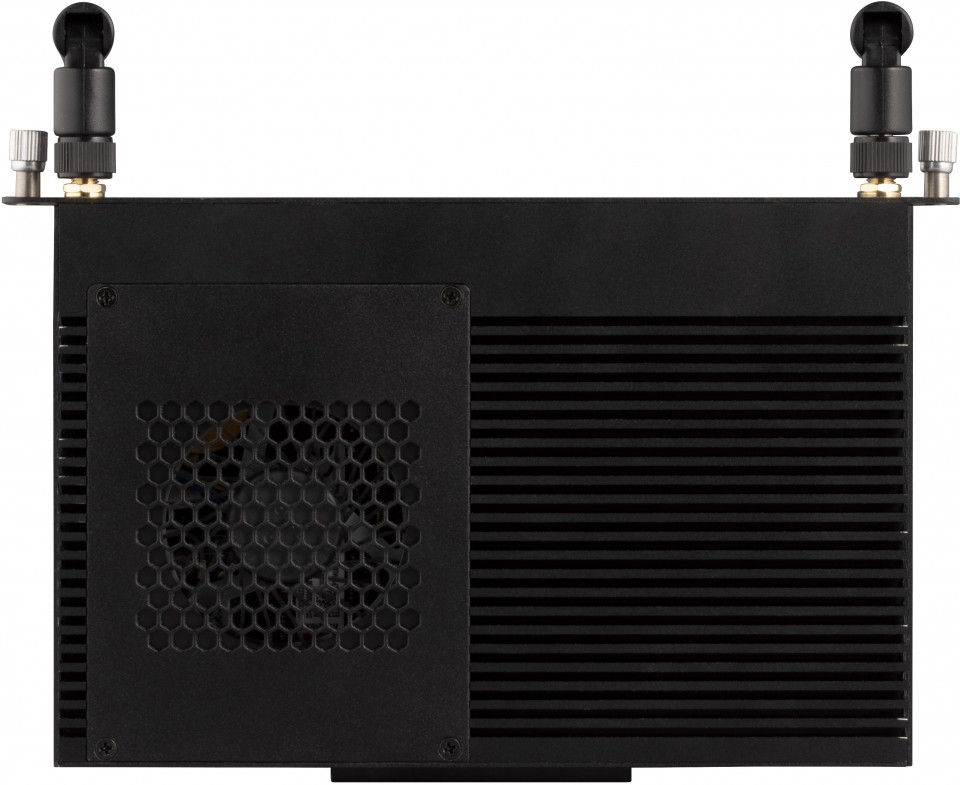

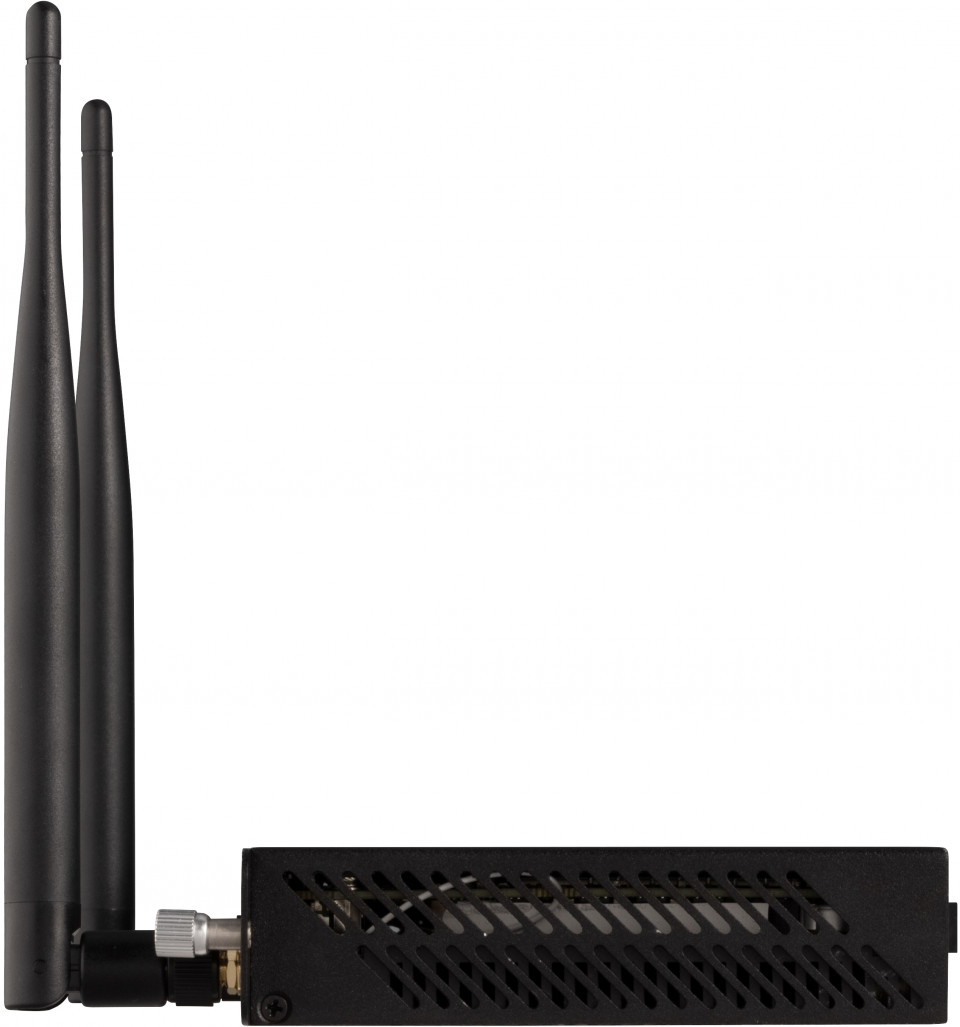

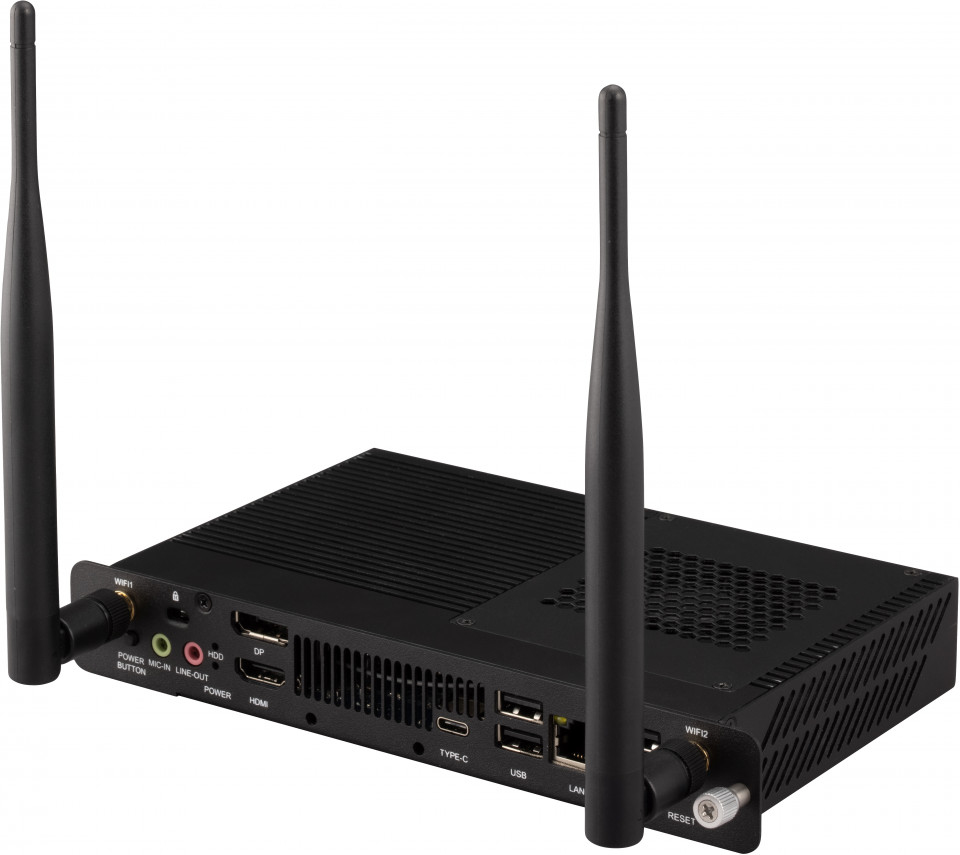

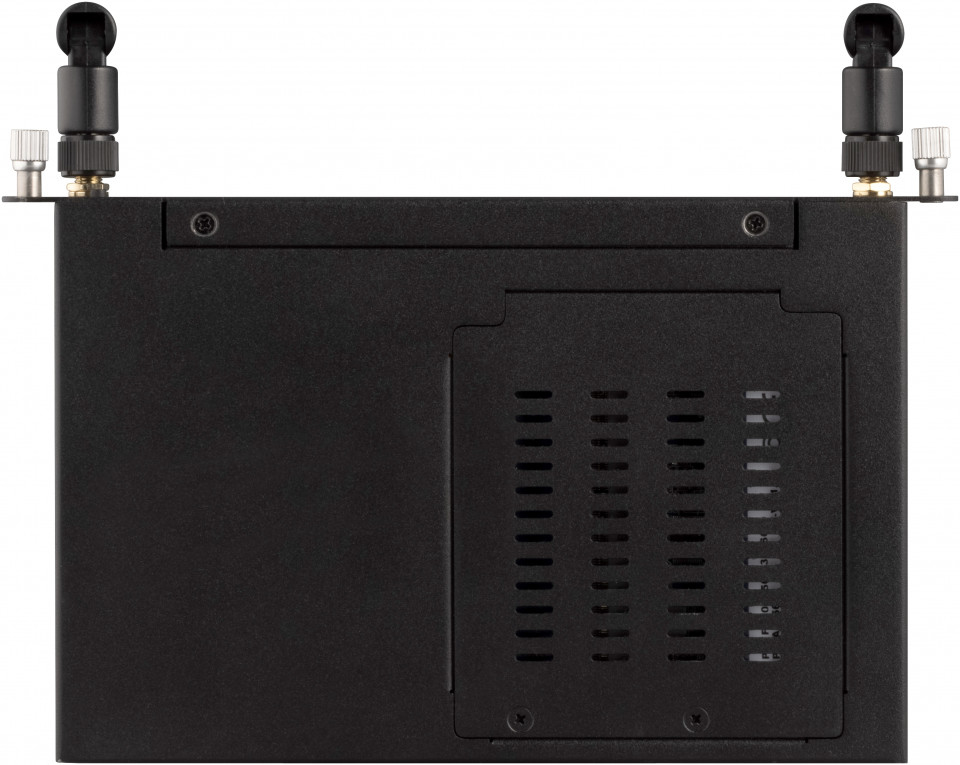

VPC25-W53-O1-1B embedded computer
2 GHz Intel® Core™ i5 256 GB SSD 16 GB
Model VPC25-W53-O1-1BEAN 766907013696
65 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage256 GB
- Weight1 kg
- Processor frequency2 GHz
- On-board graphics cardYes
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 256 GB
- Weight
- 1 kg
- Processor frequency
- 2 GHz
- On-board graphics card
- Yes
- Brand
- Viewsonic
- Category
- Embedded Computer
- Model
- VPC25-W53-O1-1B
- Part number
- VPC25-W53-O1-1B
- EAN / UPC
- 766907013696
- Also known as
- Viewsonic VPC25-W53-O1-1B embedded computer 2 GHz Intel® Core™ i5 256 GB SSD 16 GB
Specifications
65 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10400T |
| Processor cores | 6 |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 12 MB |
| System bus rate | 8 GT/s |
| Processor threads | 12 |
| PCI Express slots version | 3.0 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 35 W |
| Configurable TDP-down frequency | 1.3 GHz |
| Configurable TDP-down | 25 W |
| PCI Express configurations | 1x8+2x4, 1x16, 2x8 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| SSD interface | M.2 |
| SSD capacity | 256 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 630 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 65 W |
| DC input voltage | 12 - 19 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 202 mm |
| Depth | 30 mm |
| Height | 119 mm |
| Weight | 1 kg |
| Package width | 256 mm |
| Package depth | 196 mm |
| Package height | 77 mm |
| Package weight | 1.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 180 cm |
| Pallet gross length | 81 cm |
| Pallet gross width | 110 cm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 8471410000 |
