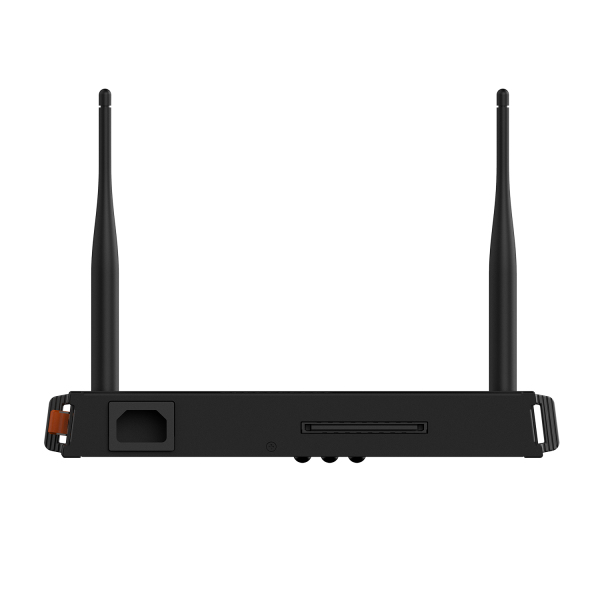

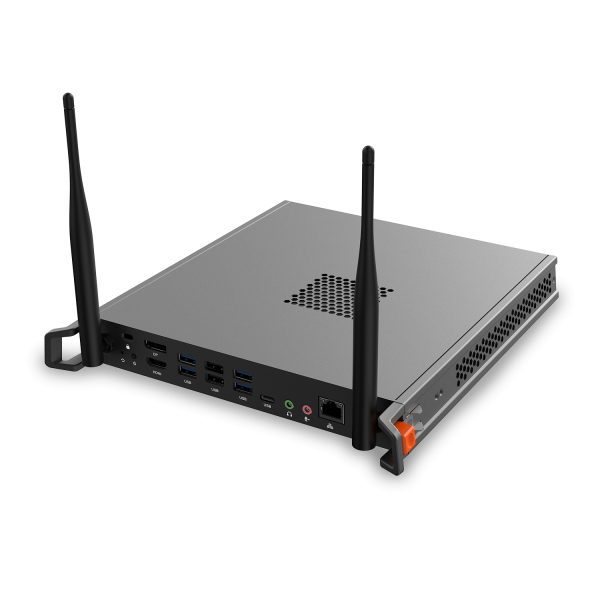

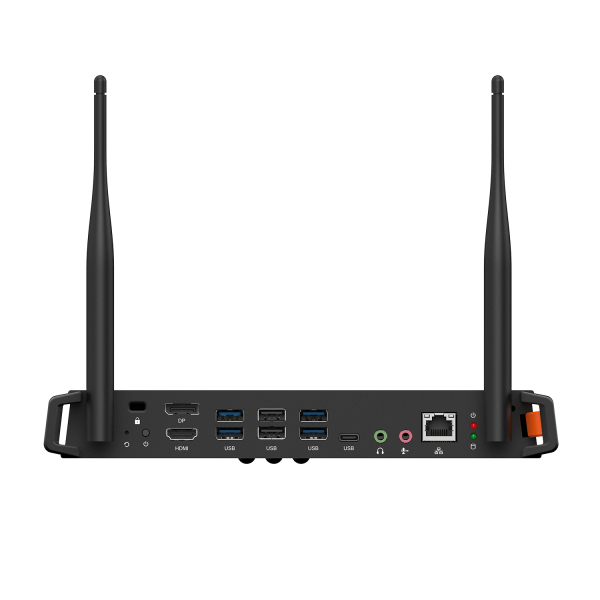

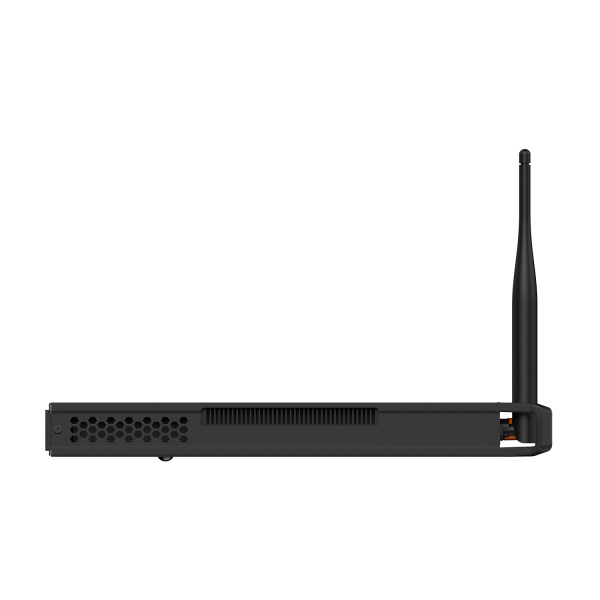

VPC25-W33-P1 embedded computer
2 GHz 256 GB SSD 8 GB
Model VPC25-W33-P1EAN 766907011999
42 specifications
- Memory8 GB
- Storage256 GB
- OSWindows 10 Pro
- Weight2 kg
- Processor frequency2 GHz
- On-board graphics cardYes
Overview
- Memory
- 8 GB
- Storage
- 256 GB
- OS
- Windows 10 Pro
- Weight
- 2 kg
- Processor frequency
- 2 GHz
- On-board graphics card
- Yes
- Brand
- Viewsonic
- Category
- Embedded Computer
- Model
- VPC25-W33-P1
- Part number
- VPC25-W33-P1
- EAN / UPC
- 766907011999
- Also known as
- Viewsonic VPC25-W33-P1 embedded computer 2 GHz 256 GB SSD 8 GB
Specifications
42 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2 GHz |
| Processor manufacturer | Intel |
| Processor cores | 6 |
| Processor boost frequency | 3.66 GHz |
| Processor cache | 12 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| NVMe | Yes |
| SSD interface | M.2, NVMe |
| SSD capacity | 256 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 630 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Processor special features
| Specification | Value |
|---|---|
| Intel Secure Boot | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 65 W |
| Power supply input voltage | 100 - 120 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 246.2 mm |
| Depth | 263.4 mm |
| Height | 32.2 mm |
| Weight | 2 kg |
| Package width | 350 mm |
| Package depth | 310 mm |
| Package height | 90 mm |
| Package weight | 2.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
