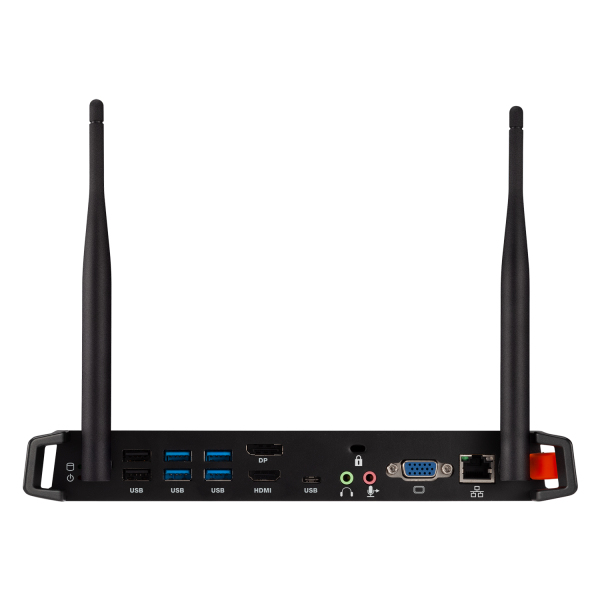

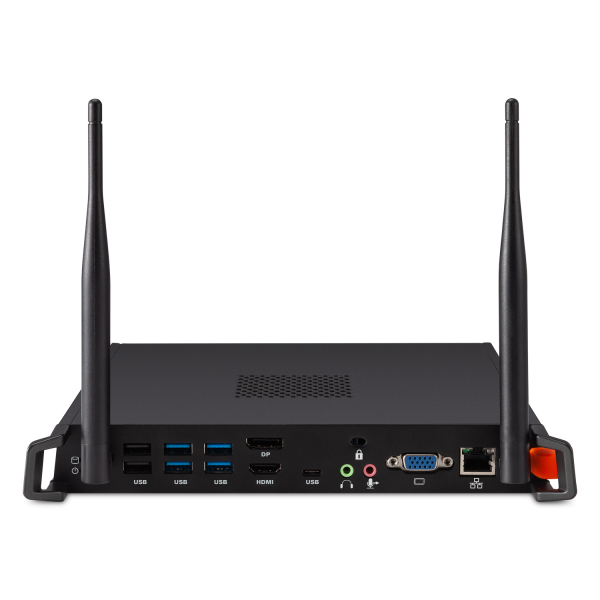

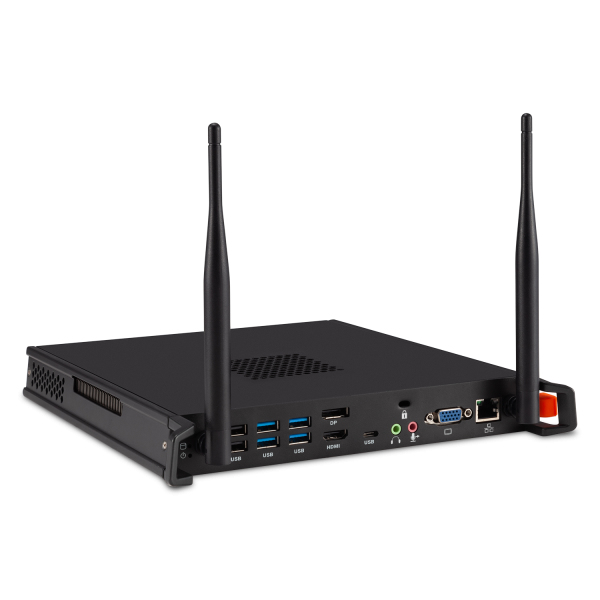

VPC15-WP-6 embedded computer
2.8 GHz Intel® Core™ i5 256 GB SSD 16 GB
Model VPC15-WP-6EAN 766907003185
77 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage256 GB
- OSWindows 10 Pro
- Weight1.9 kg
- ColourBlack
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 256 GB
- OS
- Windows 10 Pro
- Weight
- 1.9 kg
- Colour
- Black
- Brand
- Viewsonic
- Category
- Embedded Computer
- Model
- VPC15-WP-6
- Part number
- VPC15-WP-6
- EAN / UPC
- 766907003185
- Also known as
- Viewsonic VPC15-WP-6 embedded computer 2.8 GHz Intel® Core™ i5 256 GB SSD 16 GB
Specifications
77 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.8 GHz |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8400 |
| Processor cores | 6 |
| Processor boost frequency | 4 GHz |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor threads | 6 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Bus type | DMI3 |
| Thermal Design Power (TDP) | 65 W |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| SSD interface | M.2 |
| SSD capacity | 256 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card family | Intel® UHD Graphics |
| Discrete graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 110 - 240 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 23 - 113 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, FCC ID, IC ID, cTUVus, CE, CB, BSMI, NCC, PSB, iDA, RCM, SDPPI, EAC, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 246 mm |
| Depth | 265 mm |
| Height | 32 mm |
| Weight | 1.9 kg |
| Package width | 353 mm |
| Package depth | 91 mm |
| Package height | 312 mm |
| Package weight | 2.4 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
