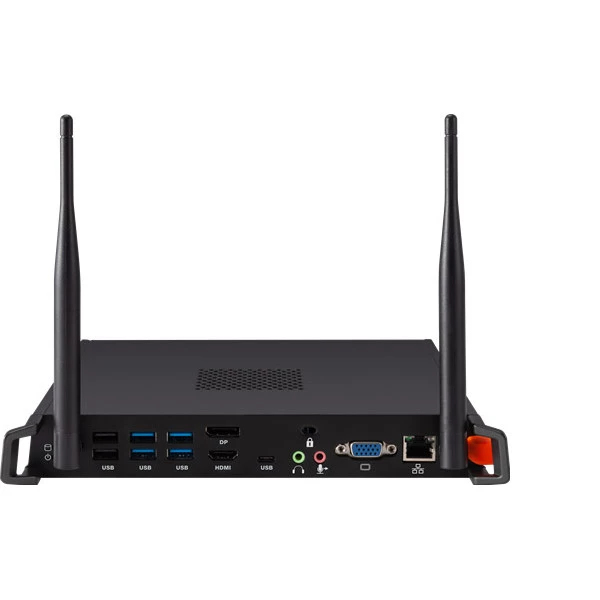

VPC15-WP embedded computer
2.8 GHz Intel® Core™ i5 128 GB SSD 8 GB
Model VPC15-WPEAN 766907001532
77 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage128 GB
- OSWindows 10 Pro
- Weight1.95 kg
- Processor frequency2.8 GHz
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 128 GB
- OS
- Windows 10 Pro
- Weight
- 1.95 kg
- Processor frequency
- 2.8 GHz
- Brand
- Viewsonic
- Category
- Embedded Computer
- Model
- VPC15-WP
- Part number
- VPC15-WP
- EAN / UPC
- 766907001532
- Also known as
- Viewsonic VPC15-WP embedded computer 2.8 GHz Intel® Core™ i5 128 GB SSD 8 GB
Specifications
77 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.8 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8400 |
| Processor cores | 6 |
| Processor boost frequency | 4 GHz |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor threads | 6 |
| Processor lithography | 14 nm |
| Bus type | DMI3 |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 65 W |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Card reader integrated | No |
| SSD capacity | 128 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 95 W |
| Power supply input voltage | 110 - 240 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | cTUVus, FCC, FCC ID/IC, NOM, NOM(RF), CE, RED, CB, BSMI, NCC(refer VPC10), Indonesia(locally apply), BIS(India), WPC(India), ICT(Vietnam), NTC(Philippine), CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 246.2 mm |
| Depth | 32.2 mm |
| Height | 265.4 mm |
| Weight | 1.95 kg |
| Package width | 350 mm |
| Package depth | 90 mm |
| Package height | 310 mm |
| Package weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
