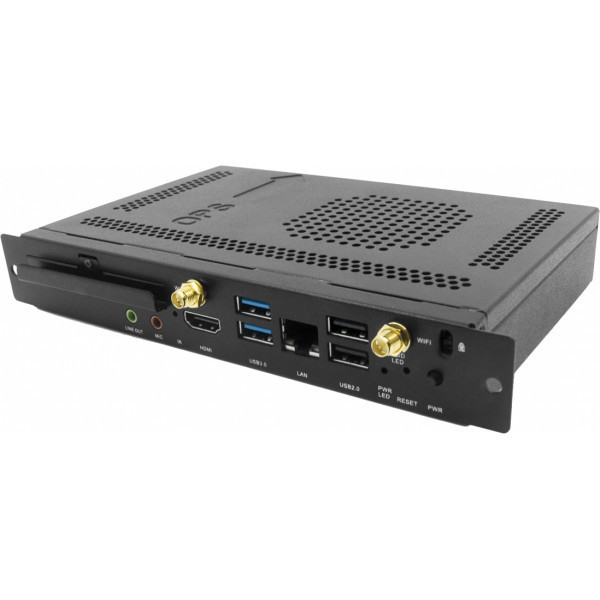

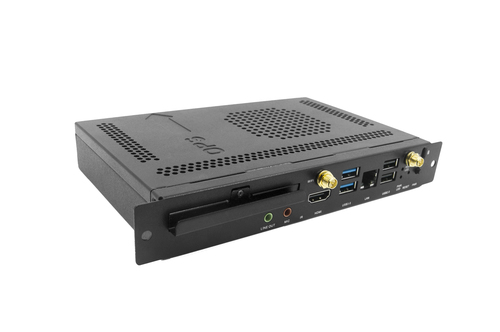

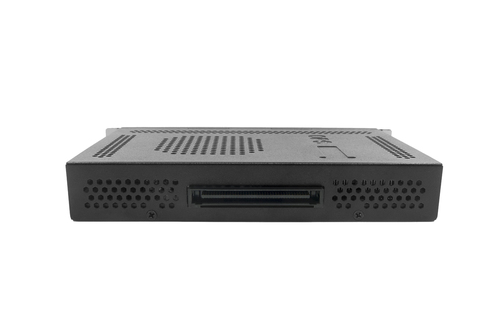

VPC12-WPO-7 embedded computer
2.5 GHz Intel® Core™ i5 128 GB SSD 8 GB
Model VPC12-WPO-7EAN 766907005158
99 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage128 GB
- OSNo
- Weight840 g
- Processor frequency2.5 GHz
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 128 GB
- OS
- No
- Weight
- 840 g
- Processor frequency
- 2.5 GHz
- Brand
- Viewsonic
- Category
- Embedded Computer
- Model
- VPC12-WPO-7
- Part number
- VPC12-WPO-7
- EAN / UPC
- 766907005158
- Also known as
- Viewsonic VPC12-WPO-7 embedded computer 2.5 GHz Intel® Core™ i5 128 GB SSD 8 GB
Specifications
99 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.5 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 7th gen Intel® Core™ i5 |
| Processor model | i5-7200U |
| Processor cores | 2 |
| Processor boost frequency | 3.1 GHz |
| Processor socket | BGA 1356 |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor threads | 4 |
| PCI Express slots version | 3.0 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2.7 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Configurable TDP-down | 7.5 W |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| Tjunction | 100 °C |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Card reader integrated | No |
| SSD interface | Serial ATA III |
| SSD capacity | 128 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 620 |
| On-board graphics card family | Intel® HD Graphics |
| Maximum on-board graphics card memory | 64 GB |
| Discrete graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| DC-in jack | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| Intel Flex Memory Access | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel® vPro™ Platform Eligibility | No |
Power
| Specification | Value |
|---|---|
| Power supply | 60 W |
| DC input voltage | 12/19 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, cTUVus |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 30 mm |
| Height | 119 mm |
| Weight | 840 g |
| Package width | 254 mm |
| Package depth | 77 mm |
| Package height | 196 mm |
| Package weight | 1.05 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
