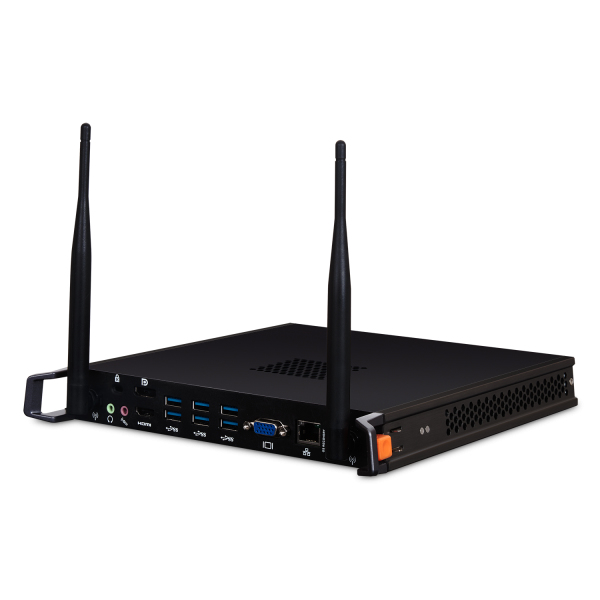

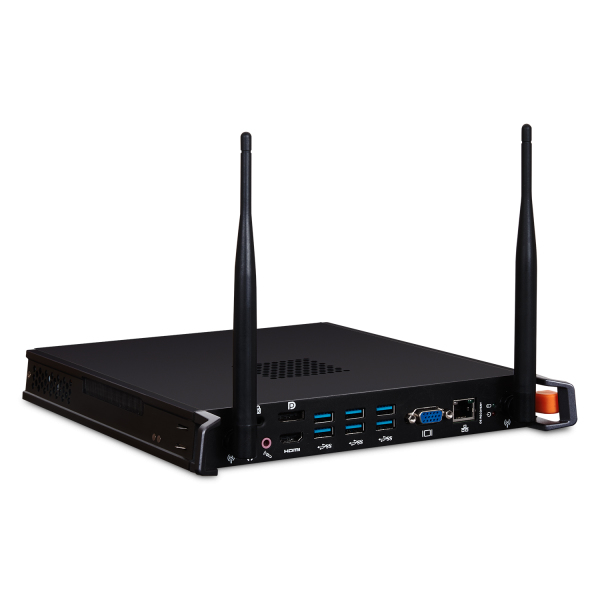

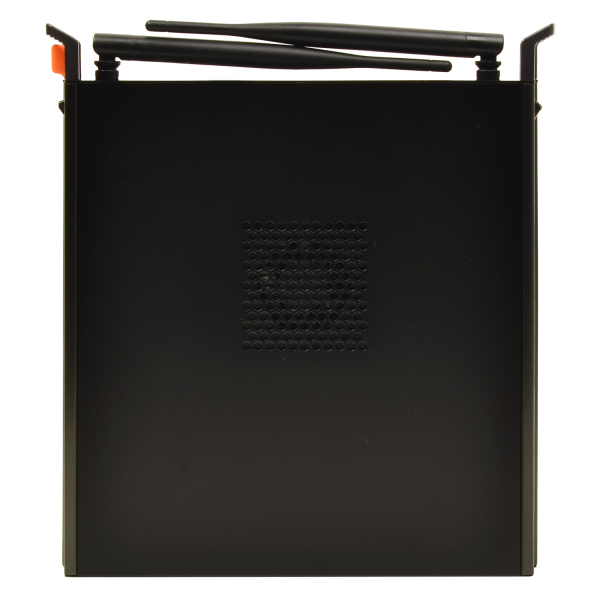

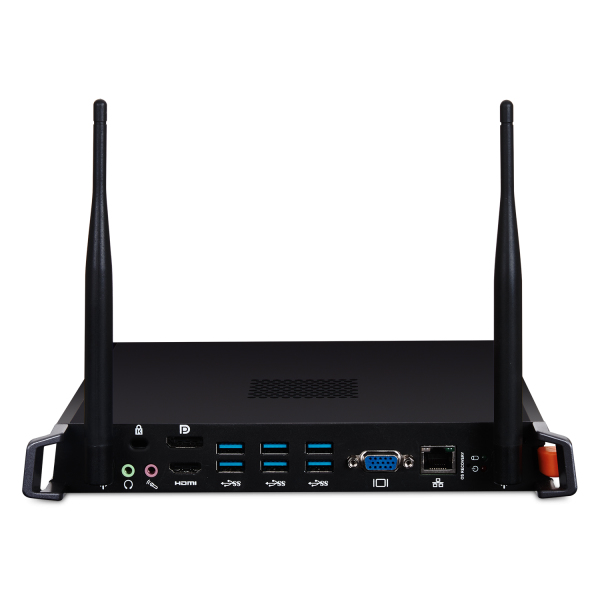

VPC10-WP-8 embedded computer
2.7 GHz Intel® Core™ i5 256 GB SSD 8 GB
Model VPC10-WP-8EAN 766907003178
64 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- Weight1.9 kg
- ColourBlack
- Processor frequency2.7 GHz
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- Weight
- 1.9 kg
- Colour
- Black
- Processor frequency
- 2.7 GHz
- Brand
- Viewsonic
- Category
- Embedded Computer
- Model
- VPC10-WP-8
- Part number
- VPC10-WP-8
- EAN / UPC
- 766907003178
- Also known as
- Viewsonic VPC10-WP-8 embedded computer 2.7 GHz Intel® Core™ i5 256 GB SSD 8 GB
Specifications
64 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.7 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor model | i5-6400 |
| Processor cores | 4 |
| Processor boost frequency | 3.3 GHz |
| Processor socket | LGA 1151 (Socket H4) |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor threads | 4 |
| PCI Express slots version | 3.0 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Bus type | DMI3 |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| SSD capacity | 256 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 530 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in display | No |
| Product colour | Black |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 265 mm |
| Depth | 246 mm |
| Height | 32 mm |
| Weight | 1.9 kg |
| Package weight | 2.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
