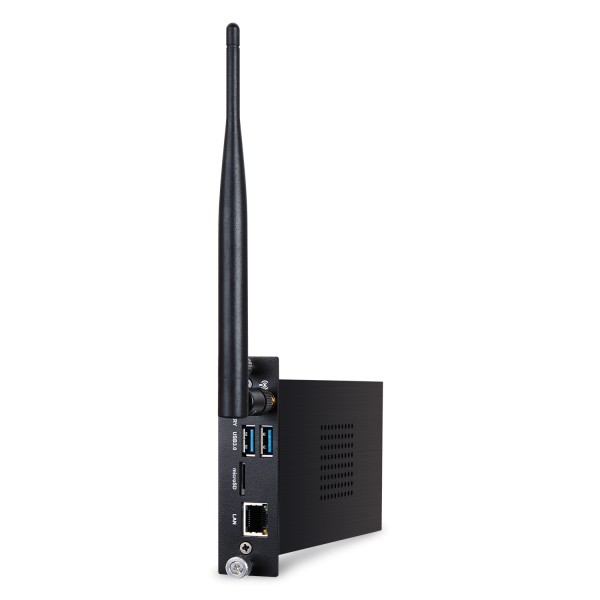

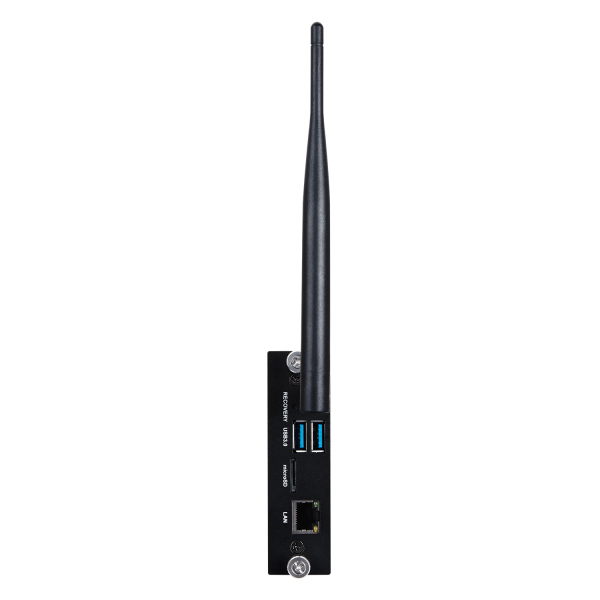

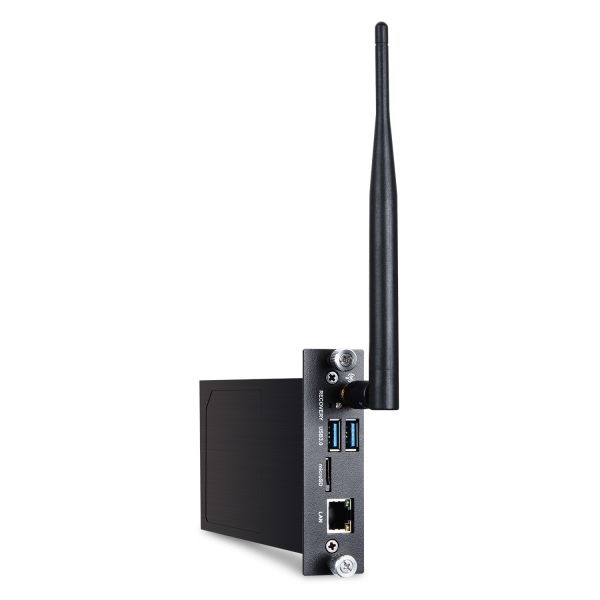

VPC01-AN embedded computer
1.8 GHz ARM 32 GB Flash 4 GB
Model VPC01-ANEAN 766907909814
36 specifications
- ProcessorARM
- Memory4 GB
- Storage32 GB
- OSAndroid 7.1
- Weight300 g
- Processor frequency1.8 GHz
Overview
- Processor
- ARM
- Memory
- 4 GB
- Storage
- 32 GB
- OS
- Android 7.1
- Weight
- 300 g
- Processor frequency
- 1.8 GHz
- Brand
- Viewsonic
- Category
- Embedded Computer
- Model
- VPC01-AN
- Part number
- VPC01-AN
- EAN / UPC
- 766907909814
- Also known as
- Viewsonic VPC01-AN embedded computer 1.8 GHz ARM 32 GB Flash 4 GB
Specifications
36 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.8 GHz |
| Processor family | ARM |
| Processor model | RK3399 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | Flash |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Mali-T860 |
| On-board graphics card family | ARM Mali |
| Discrete graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android 7.1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, FCC ID, IC ID, CE, CB, BSMI, NCC, PSB, iDA, RCM, SDPPI, EAC, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 103 mm |
| Depth | 29 mm |
| Height | 168 mm |
| Weight | 300 g |
| Package width | 246 mm |
| Package depth | 55 mm |
| Package height | 130 mm |
| Package weight | 400 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
