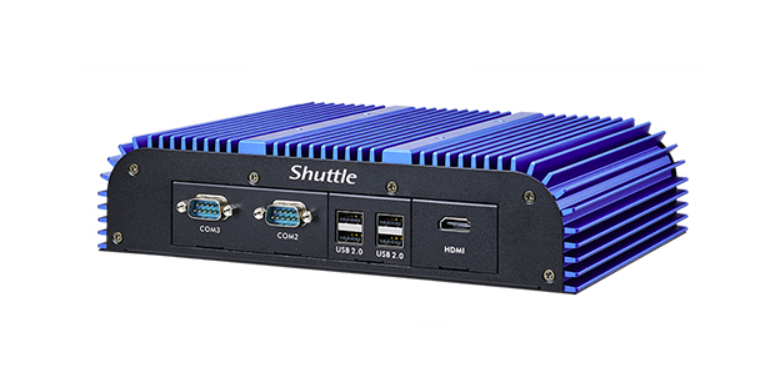

BPCWL03 embedded computer SSD
64 GB
Model BPCWL03
38 specifications
- Resolution4096 x 2160 pixels
- Memory64 GB
- Weight2.85 kg
- Processor manufacturerIntel
- Storage mediaSSD
- On-board graphics cardYes
Overview
- Resolution
- 4096 x 2160 pixels
- Memory
- 64 GB
- Weight
- 2.85 kg
- Processor manufacturer
- Intel
- Storage media
- SSD
- On-board graphics card
- Yes
- Brand
- Shuttle
- Category
- Embedded Computer
- Model
- BPCWL03
- Part number
- BPCWL03
- Also known as
- Shuttle BPCWL03 embedded computer SSD 64 GB
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Storage media | SSD |
| Number of storage drives installed | 1 |
| NVMe | Yes |
| SSD interface | M.2, NVMe, SATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Discrete graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 2 |
| Line-out | Yes |
| Microphone in | Yes |
Performance
| Specification | Value |
|---|---|
| Display resolution | 4096 x 2160 pixels |
| BIOS memory size | 64 Mbit |
| BIOS type | UEFI |
| VESA mounting | Yes |
| Audio chip | Realtek ALC662 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 10 Embedded 64bit Linux 64bit |
Power
| Specification | Value |
|---|---|
| Power supply | 150 W |
| Power supply input voltage | 19 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 169 mm |
| Height | 57 mm |
| Weight | 2.85 kg |
