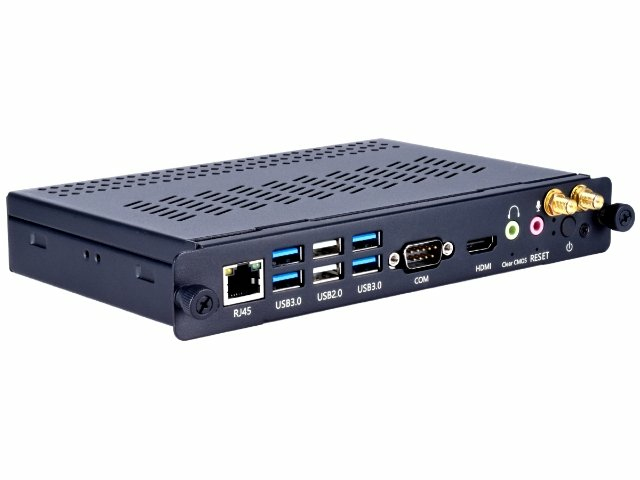

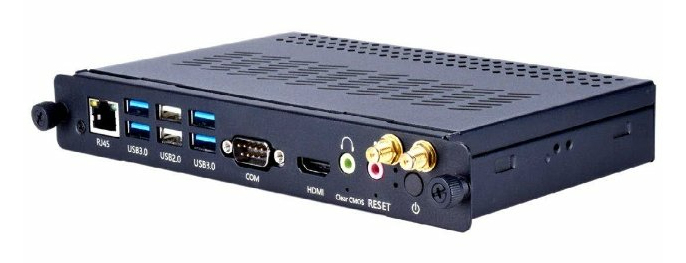

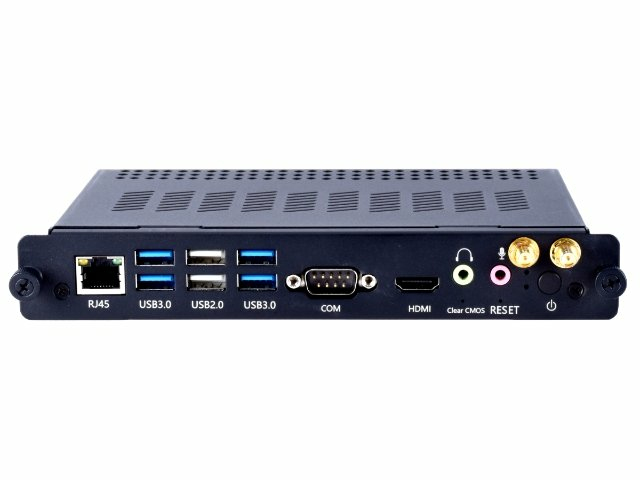

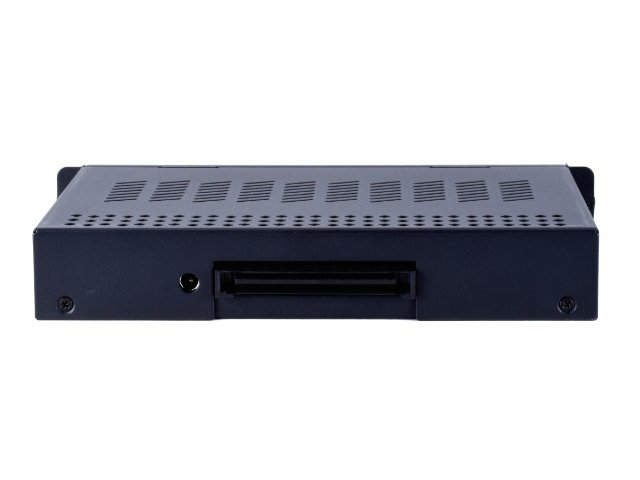

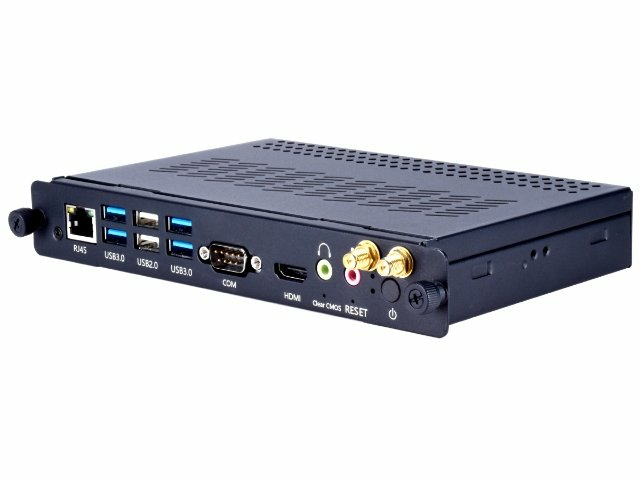

100016113 embedded computer
2.1 GHz Intel® Core™ i3 128 GB SSD 4 GB
Model 100016113EAN 5070002125204
44 specifications
- ProcessorIntel® Core™ i3
- Memory4 GB
- Storage128 GB
- Weight800 g
- ColourBlack
- Processor frequency2.1 GHz
Overview
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Storage
- 128 GB
- Weight
- 800 g
- Colour
- Black
- Processor frequency
- 2.1 GHz
- Brand
- Sharp
- Category
- Embedded Computer
- Model
- 100016113
- Part number
- 100016113
- EAN / UPC
- 5070002125204
- Also known as
- Sharp 100016113 embedded computer 2.1 GHz Intel® Core™ i3 128 GB SSD 4 GB
Specifications
44 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.1 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 8th gen Intel® Core™ i3 |
| Processor model | 8145U |
| Processor cores | 2 |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor threads | 4 |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| SSD interface | M.2 |
| SSD capacity | 128 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 620 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Headphone outputs | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Microsoft Windows 10 IoT Enterprise |
| Operating system architecture | 64-bit |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 118 mm |
| Height | 30 mm |
| Weight | 800 g |
| Package width | 325 mm |
| Package depth | 245 mm |
| Package height | 75 mm |
| Package weight | 1.2 kg |
