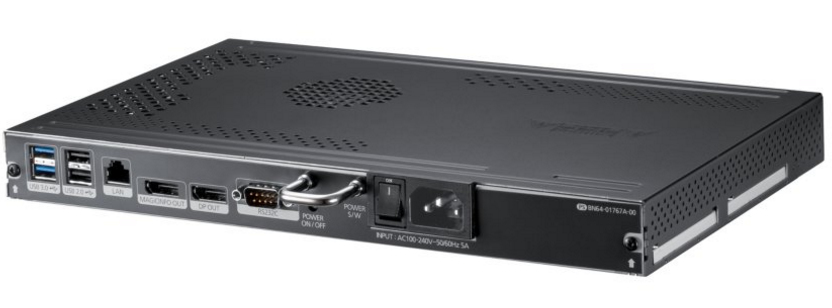

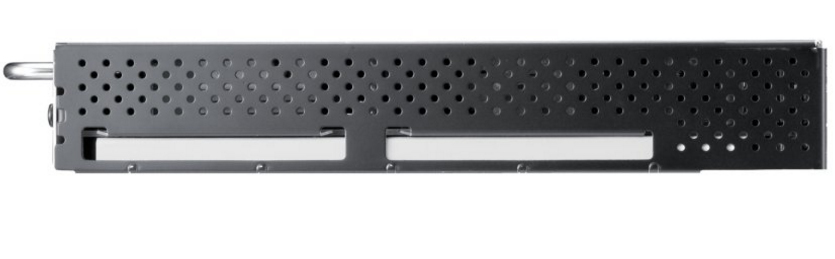

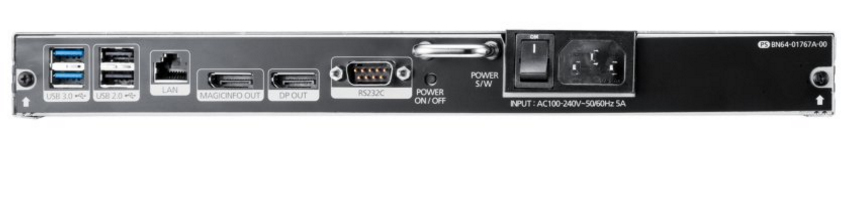

SBB-B32D 2.5 GHz AMD Embedded R-Series SoC 32 GB SSD 4 GB
Model SBB-B32DPart no. SBB-B32DV4
33 specifications
- ProcessorAMD Embedded R-Series SoC
- Memory4 GB
- Storage32 GB
- OSWindows Embedded Standard 7
- Weight1.8 kg
- ColourBlack
Overview
- Processor
- AMD Embedded R-Series SoC
- Memory
- 4 GB
- Storage
- 32 GB
- OS
- Windows Embedded Standard 7
- Weight
- 1.8 kg
- Colour
- Black
- Brand
- Samsung
- Category
- Embedded Computer
- Model
- SBB-B32D
- Part number
- SBB-B32DV4
- Also known as
- Samsung SBB-B32D 2.5 GHz AMD Embedded R-Series SoC 32 GB SSD 4 GB
Specifications
33 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.5 GHz |
| Processor family | AMD Embedded R-Series SoC |
| Processor model | RX-425BB |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | SSD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | AMD Radeon R6 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Standard 7 |
| Operating system architecture | 32-bit |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 321.6 mm |
| Depth | 224.7 mm |
| Height | 40.3 mm |
| Weight | 1.8 kg |
| Package width | 432 mm |
| Package depth | 269 mm |
| Package height | 95 mm |
| Package weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DVI, DisplayPort |
