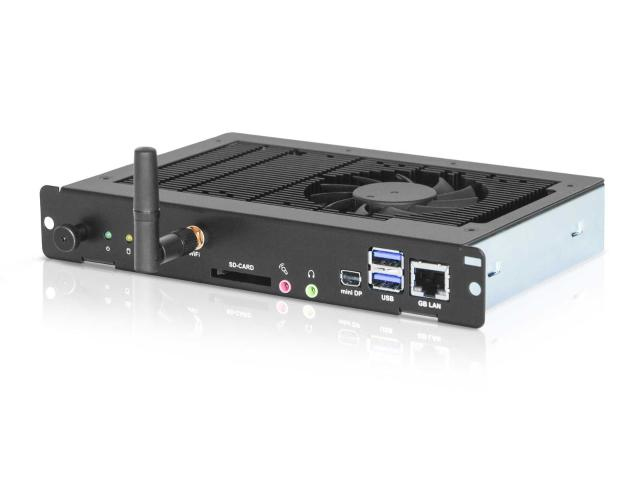

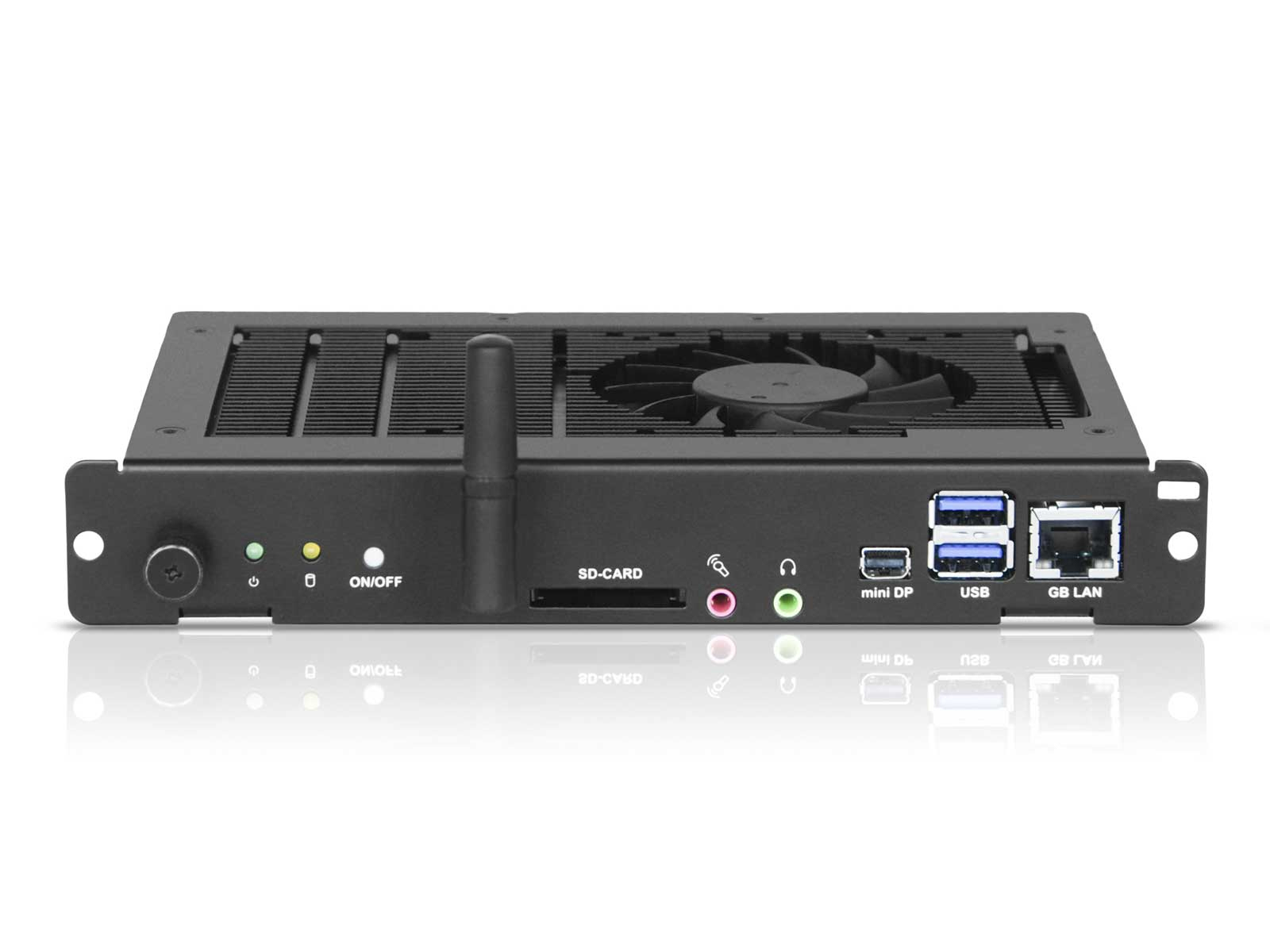

OPS-Sky-i7v-s4/64/W7e B
Model OPS-Sky-i7v-s4/64/W7e BPart no. 100014212EAN 4260400611770
114 specifications
- ProcessorIntel® Core™ i7
- Memory4 GB
- Storage64 GB
- GraphicsNot available
- OSWindows Embedded Standard 7
- Weight900 g
Overview
- Processor
- Intel® Core™ i7
- Memory
- 4 GB
- Storage
- 64 GB
- Graphics
- Not available
- OS
- Windows Embedded Standard 7
- Weight
- 900 g
- Brand
- NEC
- Category
- Embedded Computer
- Model
- OPS-Sky-i7v-s4/64/W7e B
- Part number
- 100014212
- EAN / UPC
- 4260400611770
- Also known as
- NEC OPS-Sky-i7v-s4/64/W7e B 2.8 GHz Intel® Core™ i7 64 GB SSD 4 GB
Specifications
114 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.8 GHz |
| Processor family | Intel® Core™ i7 |
| Processor generation | 6th gen Intel® Core™ i7 |
| Processor model | i7-6820EQ |
| Processor cores | 4 |
| Processor boost frequency | 3.5 GHz |
| Processor socket | BGA 1440 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor threads | 8 |
| PCI Express slots version | 3.0 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Stepping | R0 |
| Bus type | DMI3 |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 45 W |
| Processor series | Intel Core i7-6800 Mobile Series |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 64 GB |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2133 MHz |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
| Storage media | SSD |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| SSD interface | Micro Serial ATA III |
| SSD capacity | 64 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 530 |
| On-board graphics card family | Intel® HD Graphics |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x191B |
| Discrete graphics card model | Not available |
| Number of displays supported (on-board graphics) | 3 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |

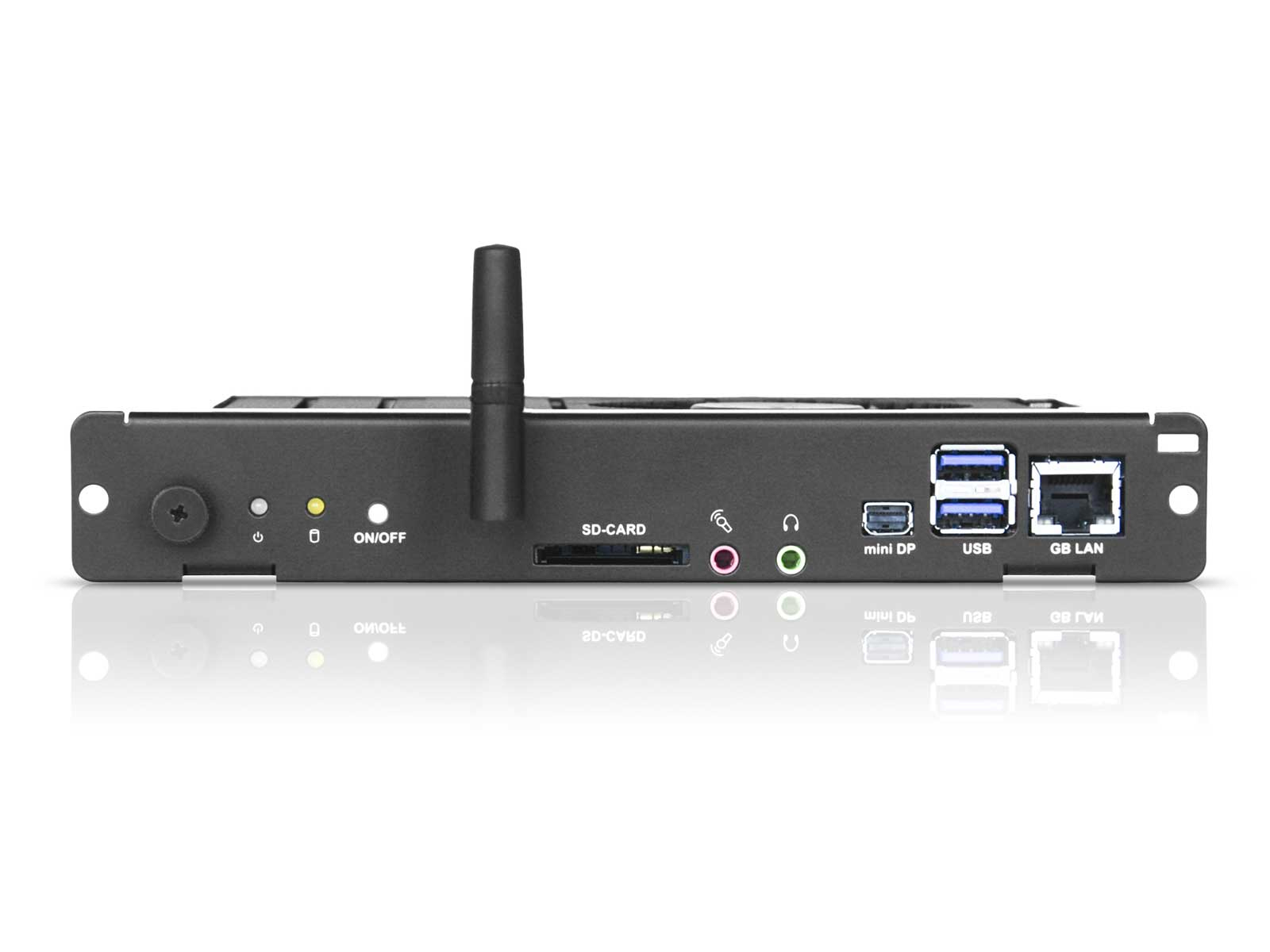

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Standard 7 |
Processor special features
| Specification | Value |
|---|---|
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Processor code | SR2DT |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Insider™ | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Graphics & IMC lithography | 14 nm |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel 64 | Yes |
| Intel® OS Guard | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Processor package size | 42 x 28 mm |
| Processor ARK ID | 90426 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 45 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 120 mm |
| Height | 30 mm |
| Weight | 900 g |
| Package width | 260 mm |
| Package depth | 200 mm |
| Package height | 60 mm |
| Package weight | 1 kg |
