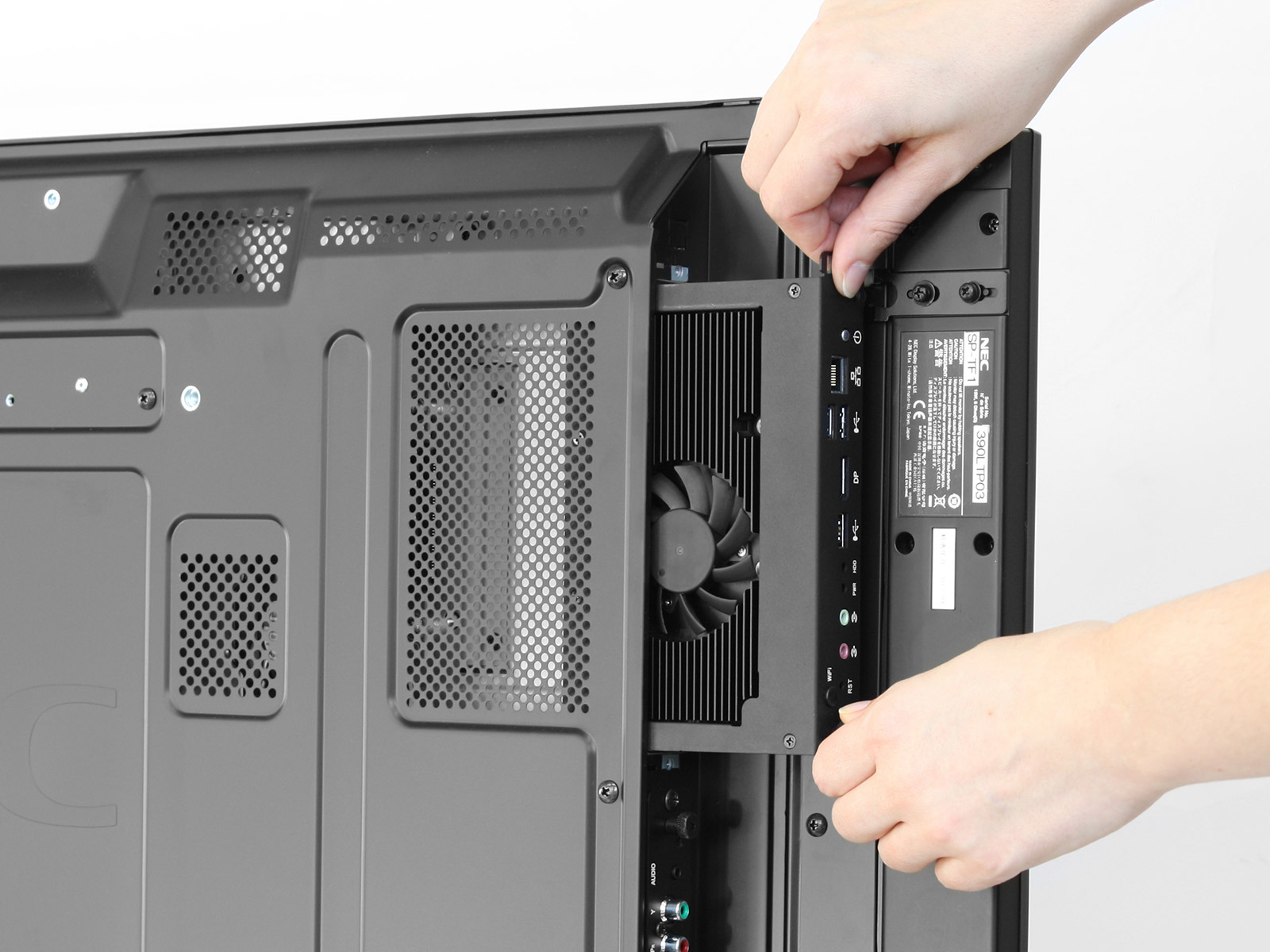

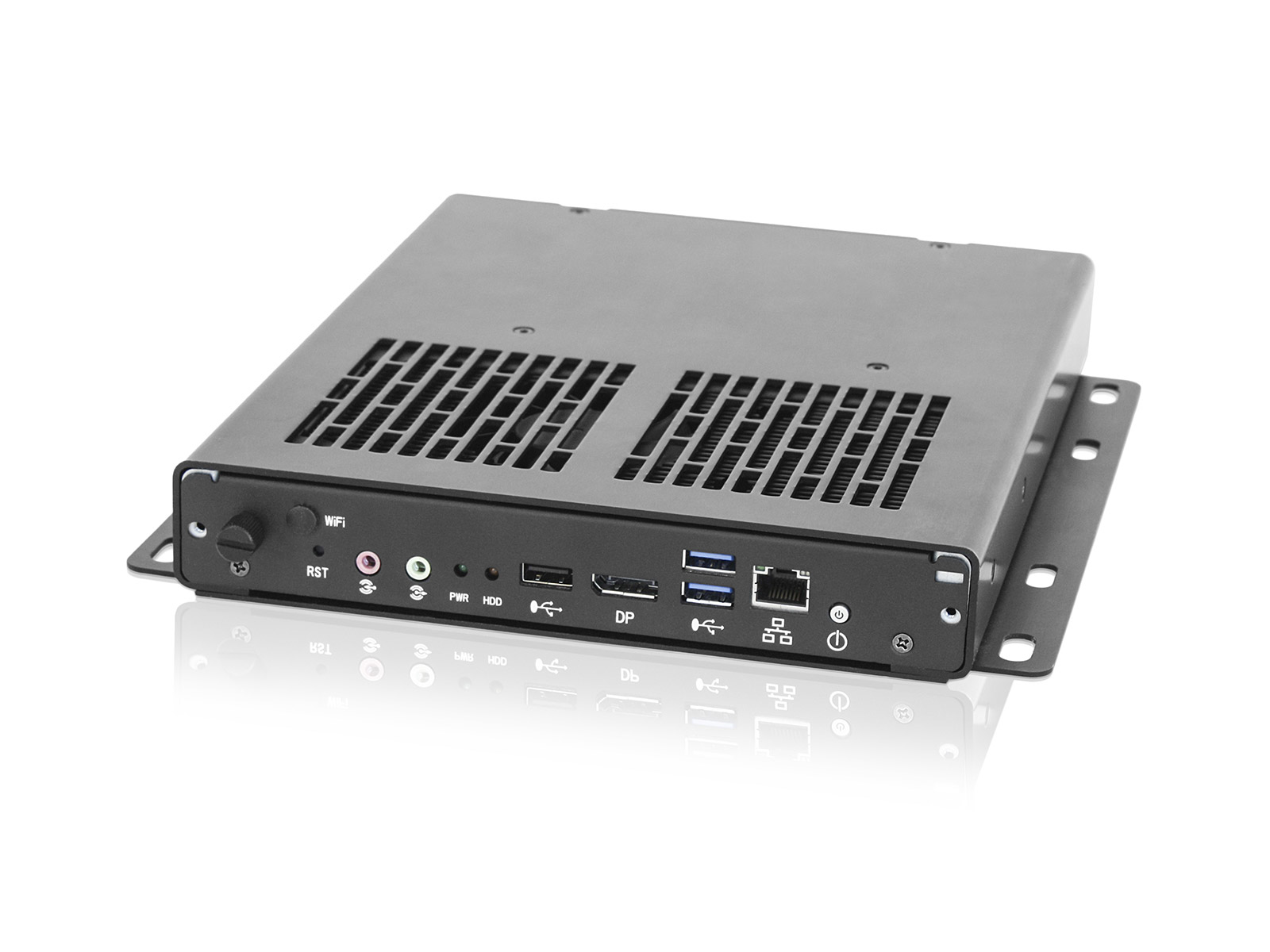

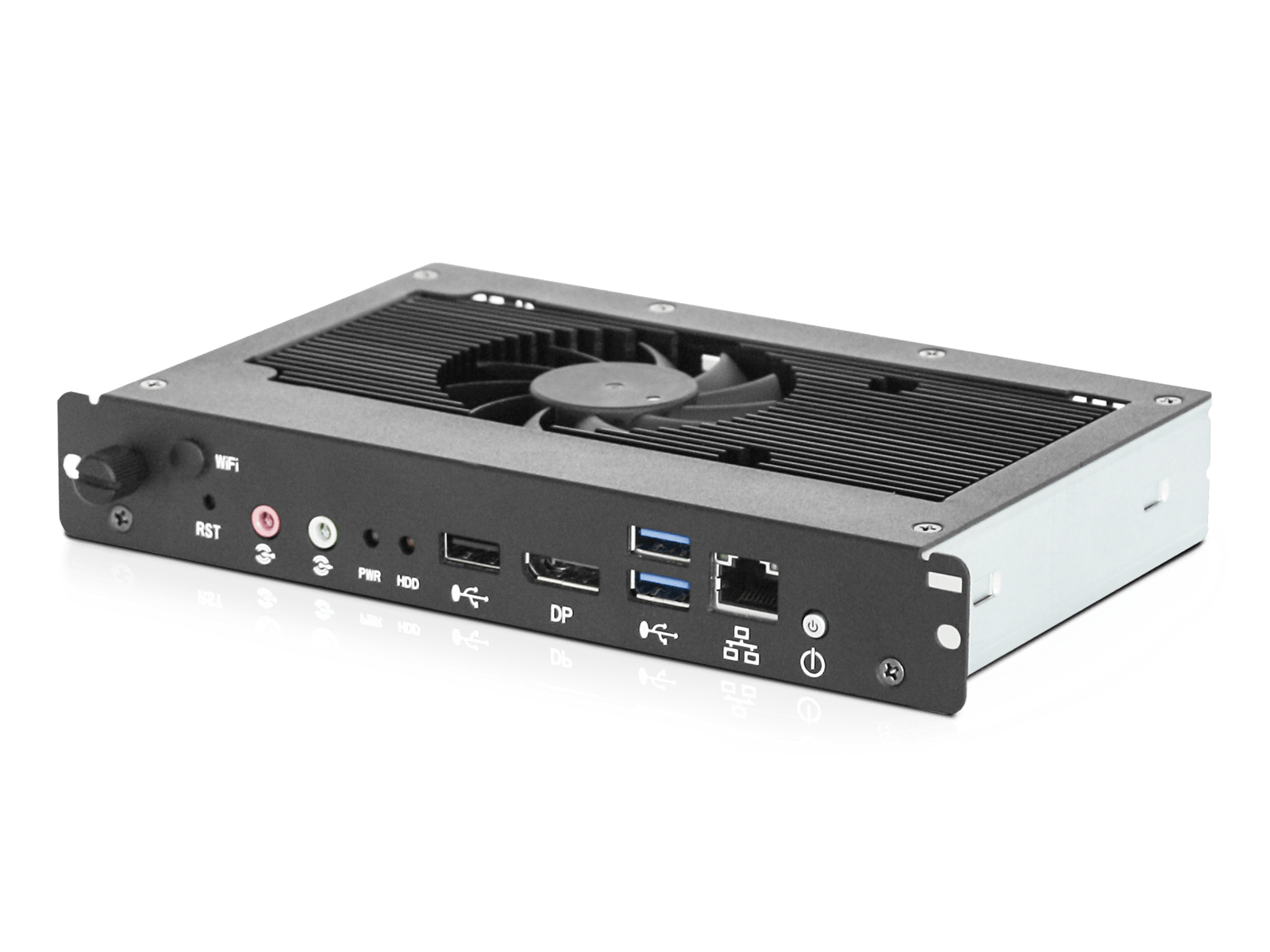

100013896 embedded computer
2.2 GHz Intel® Celeron® 32 GB SSD 4 GB
Model 100013896EAN 4716659960577
93 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage32 GB
- GraphicsNot available
- OSWindows Embedded Standard 7
- Weight900 g
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 32 GB
- Graphics
- Not available
- OS
- Windows Embedded Standard 7
- Weight
- 900 g
- Brand
- NEC
- Category
- Embedded Computer
- Model
- 100013896
- Part number
- 100013896
- EAN / UPC
- 4716659960577
- Also known as
- NEC 100013896 embedded computer 2.2 GHz Intel® Celeron® 32 GB SSD 4 GB
Specifications
93 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.2 GHz |
| Processor family | Intel® Celeron® |
| Processor model | 2000E |
| Processor cores | 2 |
| Processor socket | BGA 1364 |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Processor threads | 2 |
| PCI Express slots version | 2.0 |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Stepping | C0 |
| Bus type | DMI2 |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 37 W |
| Processor series | Intel Celeron Processor 2000 Series for Mobile |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 32 GB |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | SSD |
| SSD capacity | 32 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card family | Intel® HD Graphics |
| Maximum on-board graphics card memory | 1.024 GB |
| On-board graphics card base frequency | 400 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| Discrete graphics card model | Not available |
| Number of displays supported (on-board graphics) | 3 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

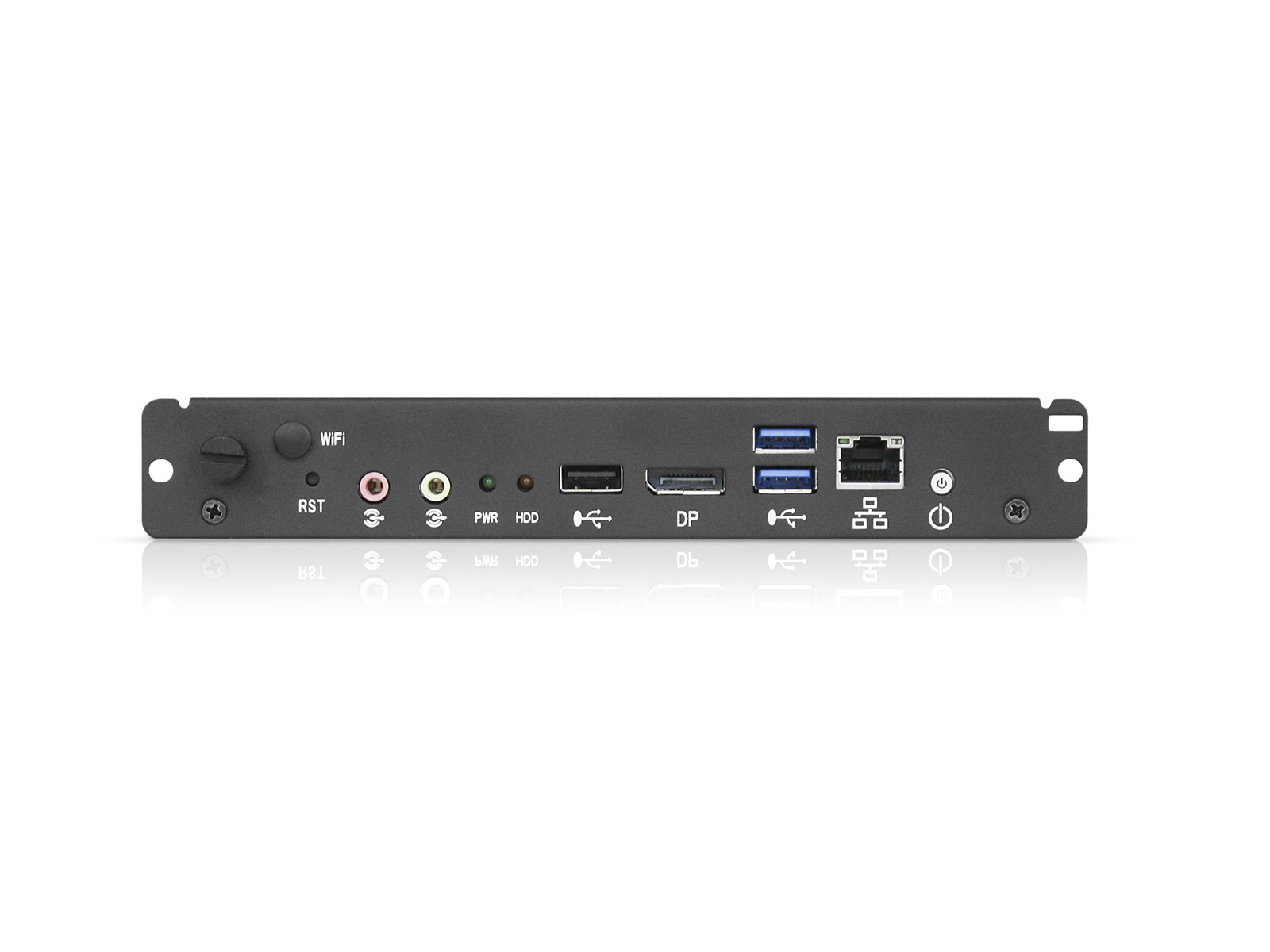

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® HM86 |
| Product colour | Black, Grey |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Standard 7 |
Processor special features
| Specification | Value |
|---|---|
| Supported instruction sets | SSE4.1, SSE4.2 |
| Processor code | SR17S |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel FDI Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Trusted Execution Technology | No |
| Scalability | 1S |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Graphics & IMC lithography | 22 nm |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Processor package size | 37.5 mm |
| Processor ARK ID | 76295 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 27 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 70 mm |
| Height | 260 mm |
| Weight | 900 g |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
