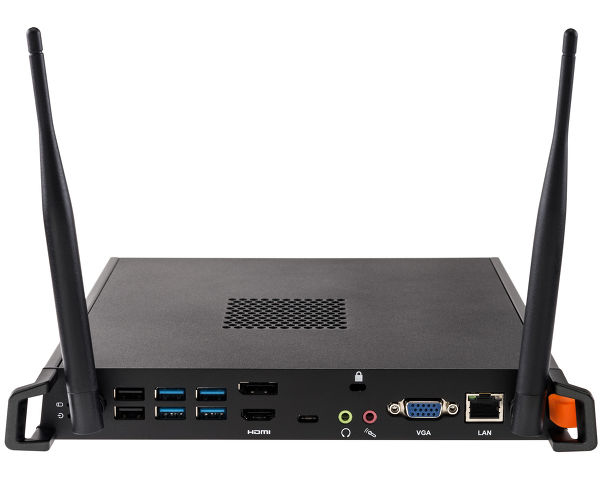

SPC5802BC embedded computer Intel® Core™ i5
256 GB SSD 8 GB
Model SPC5802BCEAN 4948570032624
66 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- OSWindows 10 IoT Enterprise
- Weight1.9 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- OS
- Windows 10 IoT Enterprise
- Weight
- 1.9 kg
- Processor manufacturer
- Intel
- Brand
- iiyama
- Category
- Embedded Computer
- Model
- SPC5802BC
- Part number
- SPC5802BC
- EAN / UPC
- 4948570032624
- Also known as
- iiyama SPC5802BC embedded computer Intel® Core™ i5 256 GB SSD 8 GB
Specifications
66 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8500 |
| Bus type | DMI3 |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Card reader integrated | No |
| SSD capacity | 256 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 630 |
| Discrete graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 95 W |
| Power consumption (standby) | 1.35 W |
| Power supply input voltage | 100-240 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 263.4 mm |
| Depth | 246.1 mm |
| Height | 32.2 mm |
| Weight | 1.9 kg |
| Package width | 312 mm |
| Package depth | 353 mm |
| Package height | 91 mm |
