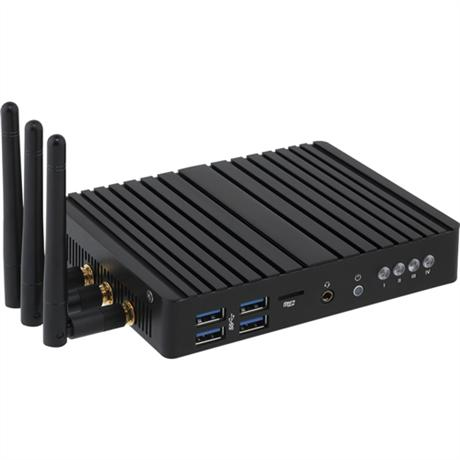

EL-20-3050-32GB embedded computer
1.6 GHz Intel® Celeron® Flash
Model EL-20-3050-32GBEAN 813567022732
116 specifications
- ProcessorIntel® Celeron®
- Storage32 GB
- OSNo
- Weight560 g
- ColourBlack
- Processor frequency1.6 GHz
Overview
- Processor
- Intel® Celeron®
- Storage
- 32 GB
- OS
- No
- Weight
- 560 g
- Colour
- Black
- Processor frequency
- 1.6 GHz
- Brand
- GIGABYTE
- Category
- Embedded Computer
- Model
- EL-20-3050-32GB
- Part number
- EL-20-3050-32GB
- EAN / UPC
- 813567022732
- Also known as
- GIGABYTE EL-20-3050-32GB embedded computer 1.6 GHz Intel® Celeron® Flash
Specifications
116 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.6 GHz |
| Processor family | Intel® Celeron® |
| Processor model | N3060 |
| Processor cores | 2 |
| Processor boost frequency | 2.48 GHz |
| Processor socket | BGA 1170 |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| System bus rate | 5 GT/s |
| Processor threads | 2 |
| PCI Express slots version | 2.0 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Stepping | D1 |
| Processor codename | Braswell |
| Thermal Design Power (TDP) | 6 W |
| Processor series | Intel Celeron N3000 series |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| Tjunction | 90 °C |
| Scenario Design Power (SDP) | 4 W |
| Integrated 4G WiMAX | No |
| Maximum internal memory supported by processor | 8 GB |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory type | DDR3L-SDRAM |
| Maximum internal memory | 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | Flash |
| Card reader integrated | Yes |
| Compatible memory cards | SDHC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 400 |
| Maximum on-board graphics card memory | 8 GB |
| On-board graphics card base frequency | 320 MHz |
| On-board graphics card burst frequency | 600 MHz |
| On-board graphics card DirectX version | 12.0 |
| Discrete graphics card | No |
| Number of execution units | 12 |
| Number of displays supported (on-board graphics) | 3 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

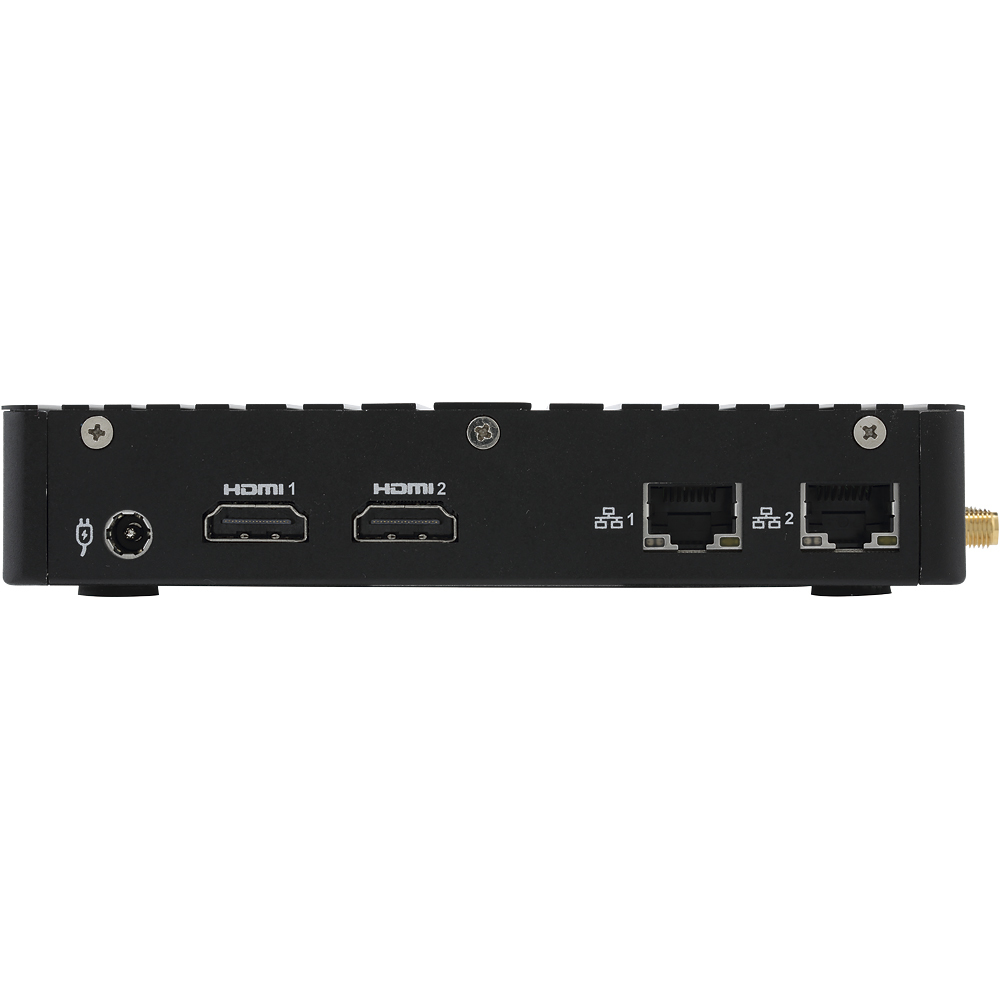

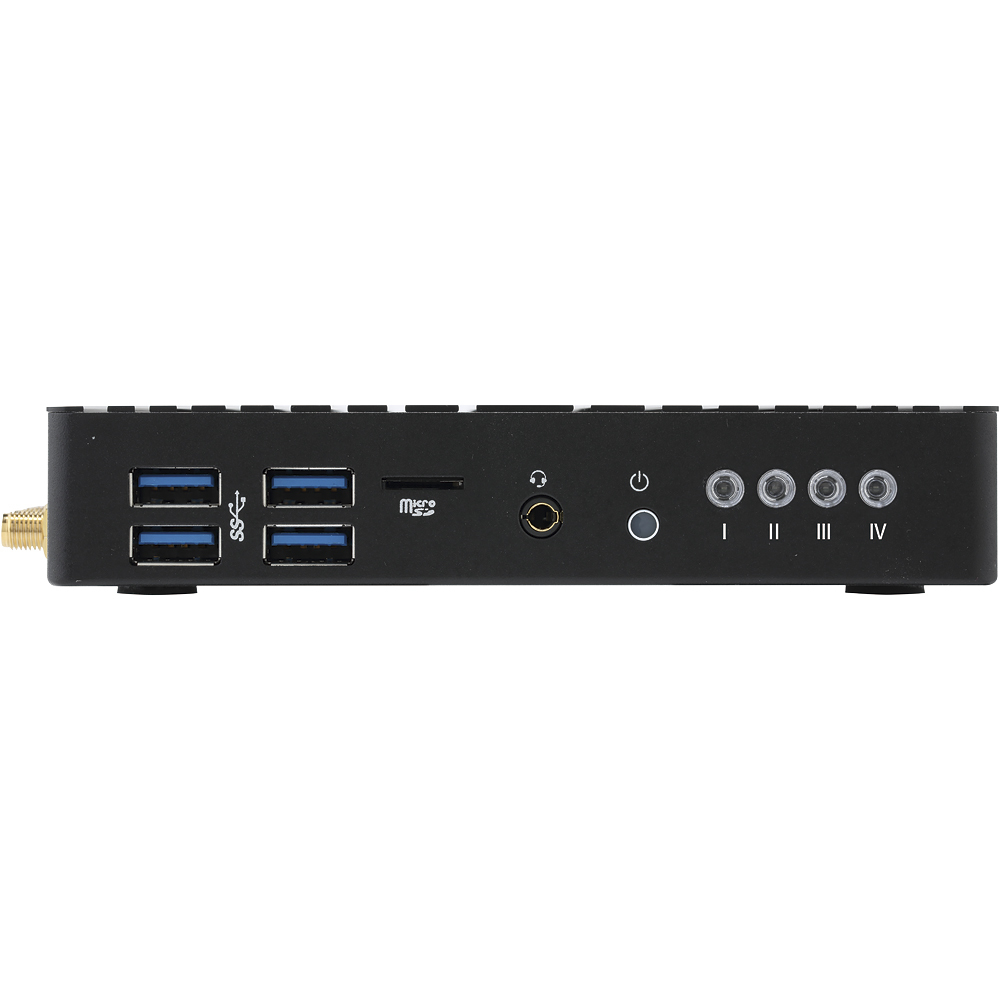

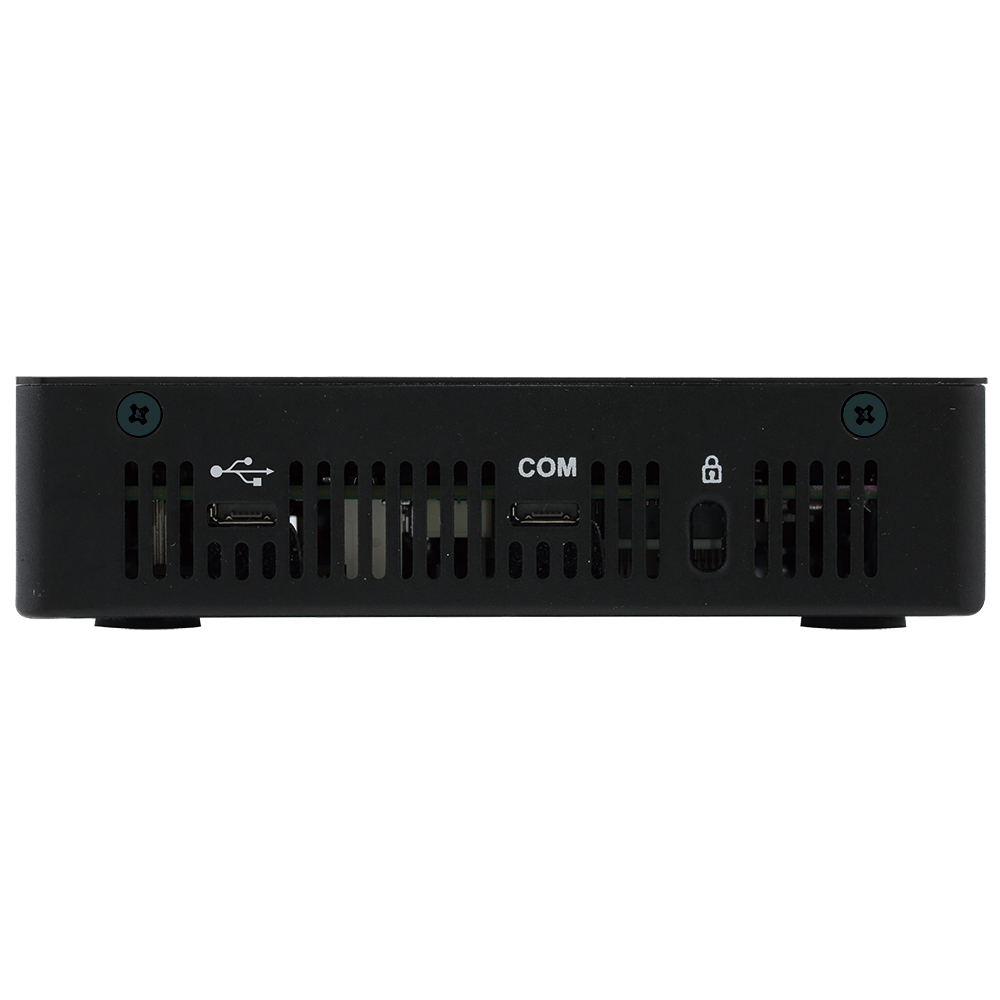

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| RS‐232/422 port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 2 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Audio chip | Realtek ALC255 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| Processor code | SR2KN |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Smart Response Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Insider™ | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Intel Rapid Storage Technology | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Secure Key | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | No |
| UART | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Secure Boot | Yes |
| Intel Clear Video Technology | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Smart Connect Technology version | 0.00 |
| Processor package size | 25 x 27 mm |
| Processor ARK ID | 91832 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 16 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140.8 mm |
| Depth | 107.5 mm |
| Height | 27 mm |
| Weight | 560 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
