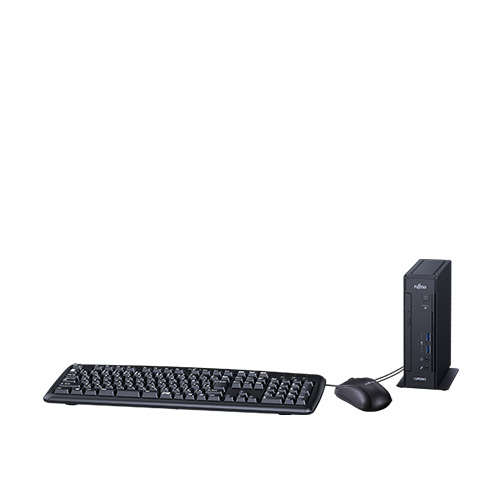

WD1/X embedded computer
2.6 GHz Intel® Celeron® 500 GB HDD 4 GB
Model WD1/X
93 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage500 GB
- GraphicsNot available
- OSWindows 10 Home
- ColourBlack
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- OS
- Windows 10 Home
- Colour
- Black
- Brand
- Fujitsu
- Category
- Embedded Computer
- Model
- WD1/X
- Part number
- WD1/X
- Also known as
- Fujitsu WD1/X embedded computer 2.6 GHz Intel® Celeron® 500 GB HDD 4 GB
Specifications
93 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.6 GHz |
| Processor family | Intel® Celeron® |
| Processor model | G3900T |
| Processor cores | 2 |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor threads | 2 |
| PCI Express slots version | 3.0 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Bus type | DMI3 |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 35 W |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Maximum internal memory supported by processor | 64 GB |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | Yes |
| Memory voltage supported by processor | 1.35 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 510 |
| On-board graphics card family | Intel® HD Graphics |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x1902 |
| Discrete graphics card model | Not available |
| Graphics card Open GL support | Yes |
| Number of displays supported (on-board graphics) | 3 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 0 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 0 |
| Headphone outputs | 0 |
| Microphone in | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Supported instruction sets | SSE4.1, SSE4.2 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Insider™ | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Trusted Execution Technology | No |
| Scalability | 1S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Thermal solution specification | PCG 2015A |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Built-in Visuals Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel HD Graphics | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Processor ARK ID | 90738 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 191 mm |
| Height | 186 mm |
