PC 5000
Model PC 5000Part no. EBPC5000SAMPLE
108 specifications
- ProcessorIntel® Celeron® G
- Memory4 GB
- Storage32 GB
- GraphicsNot available
- OSUbuntu Linux
- Weight5.8 kg
Overview
- Processor
- Intel® Celeron® G
- Memory
- 4 GB
- Storage
- 32 GB
- Graphics
- Not available
- OS
- Ubuntu Linux
- Weight
- 5.8 kg
- Brand
- Dell
- Category
- Embedded Computer
- Model
- PC 5000
- Part numbers
- EBPC5000SAMPLE, BR_CTOI5000STD, CTOI5000STDUSCA
- Also known as
- DELL PC 5000 2.4 GHz Intel® Celeron® G 32 GB SSD 4 GB
Specifications
108 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.4 GHz |
| Processor family | Intel® Celeron® G |
| Processor model | G3900E |
| Processor cores | 2 |
| Processor socket | BGA 1440 |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor threads | 2 |
| PCI Express slots version | 3.0 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Stepping | R0 |
| Bus type | DMI3 |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 35 W |
| Processor series | Intel Celeron Processor G3000 series for Desktop |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 64 GB |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | Yes |
| Memory voltage supported by processor | 1.35 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory clock speed | 2133 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | SSD |
| Card reader integrated | No |
| SSD interface | M.2 |
| SSD capacity | 32 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 510 |
| On-board graphics card family | Intel® HD Graphics |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x1902 |
| Discrete graphics card model | Not available |
| Graphics card DisplayPorts quantity | 1 |
| Graphics card HDMI ports quantity | 1 |
| Graphics card VGA (D-Sub) ports quantity | 1 |
| Number of displays supported (on-board graphics) | 3 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

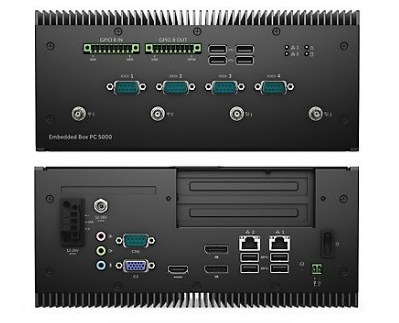

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 4 |
| Headphone outputs | 0 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Ubuntu Linux |
Processor special features
| Specification | Value |
|---|---|
| Supported instruction sets | SSE4.1, SSE4.2 |
| Processor code | SR2GH |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Insider™ | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Trusted Execution Technology | No |
| Scalability | 1S |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Graphics & IMC lithography | 14 nm |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Processor package size | 42 x 28 mm |
| Processor ARK ID | 90713 |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 249 mm |
| Depth | 107 mm |
| Height | 270 mm |
| Weight | 5.8 kg |
