PC 3000
Model PC 3000Part no. EBPC3000SAMPLE
107 specifications
- ProcessorIntel Atom®
- Memory4 GB
- Storage32 GB
- GraphicsNot available
- OSUbuntu Linux
- Weight2.8 kg
Overview
- Processor
- Intel Atom®
- Memory
- 4 GB
- Storage
- 32 GB
- Graphics
- Not available
- OS
- Ubuntu Linux
- Weight
- 2.8 kg
- Brand
- Dell
- Category
- Embedded Computer
- Model
- PC 3000
- Part numbers
- EBPC3000SAMPLE, LA_CTOI3000STD, BR_CTOI3000STD
- Also known as
- DELL PC 3000 1.33 GHz Intel Atom® 32 GB SSD 4 GB
Specifications
107 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.33 GHz |
| Processor family | Intel Atom® |
| Processor model | E3825 |
| Processor cores | 2 |
| Processor socket | BGA 1170 |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor threads | 2 |
| PCI Express slots version | 2.0 |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Stepping | D0 |
| Processor codename | Bay Trail |
| Thermal Design Power (TDP) | 6 W |
| Processor series | Intel Atom E3800 Series |
| FSB Parity | No |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x1, 1x4, 2x1 |
| Tjunction | 110 °C |
| Maximum internal memory supported by processor | 8 GB |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1066 MHz |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory clock speed | 1600 MHz |
| Memory channels | Single-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | SSD |
| Card reader integrated | No |
| SSD interface | M.2 |
| SSD capacity | 32 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 533 MHz |
| On-board graphics card burst frequency | 533 MHz |
| Discrete graphics card model | Not available |
| Graphics card DisplayPorts quantity | 1 |
| Graphics card VGA (D-Sub) ports quantity | 1 |
| Number of displays supported (on-board graphics) | 2 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

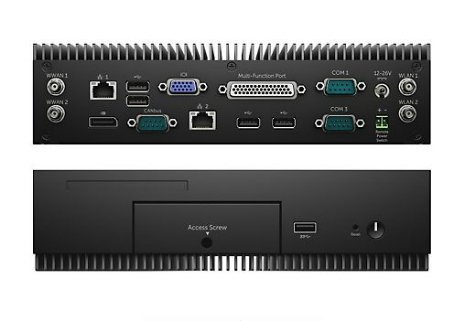

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
| Headphone outputs | 0 |
| DC-in jack | Yes |
| RS‐232/422 port | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Antenna connector type | SMA |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | BIOS |
| Password protection | Yes |
| VESA mounting | Yes |
| Number of antenna connectors | 2 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Ubuntu Linux |
Processor special features
| Specification | Value |
|---|---|
| Processor code | SR1X9 |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel FDI Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Dual Display Capable Technology | No |
| Intel® Insider™ | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Thermal Monitoring Technologies | No |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Intel Demand Based Switching | No |
| Intel Rapid Storage Technology | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Graphics & IMC lithography | 22 nm |
| Intel 64 | Yes |
| UART | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Secure Boot | Yes |
| Intel Clear Video Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor package size | 25 mm |
| Processor ARK ID | 78474 |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 60 mm |
| Height | 161 mm |
| Weight | 2.8 kg |
