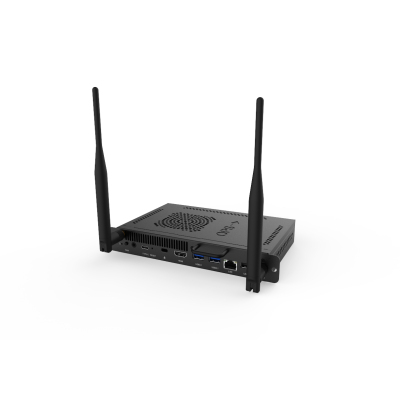

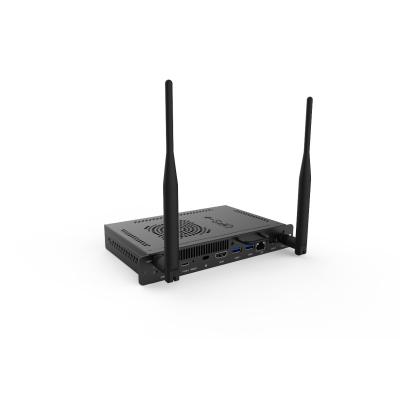

SP-PI5B72IS 3.2 GHz Intel® Core™ i5 16 GB
Model SP-PI5B72ISPart no. DHI-SP-PI5B72IS-ZW
71 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Weight750 g
- ColourBlack
- Processor frequency3.2 GHz
- On-board graphics cardYes
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Weight
- 750 g
- Colour
- Black
- Processor frequency
- 3.2 GHz
- On-board graphics card
- Yes
- Brand
- Dahua Technology
- Category
- Embedded Computer
- Model
- SP-PI5B72IS
- Part number
- DHI-SP-PI5B72IS-ZW
- Also known as
- Dahua Technology SP-PI5B72IS 3.2 GHz Intel® Core™ i5 16 GB
Specifications
71 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 3.2 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor cores | 4 |
| Processor boost frequency | 4.5 GHz |
| Processor socket | BGA 1449 |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Processor threads | 8 |
| Configurable TDP-up frequency | 3.2 GHz |
| Configurable TDP-up | 35 W |
| Configurable TDP-down frequency | 2.5 GHz |
| Configurable TDP-down | 28 W |
| Tjunction | 100 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 2400 MHz |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card DirectX version | 12.1 |
| On-board graphics card OpenGL version | 4.6 |
| Discrete graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in display | No |
| Product colour | Black |
| BIOS type | UEFI AMI |
| Housing material | SGCC |
| Number of antenna connectors | 2 |
Processor special features
| Specification | Value |
|---|---|
| Supported instruction sets | AVX 2.0, AVX-512, SSE4.1, SSE4.2 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® OS Guard | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Optane™ Memory Ready | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.8 W |
| DC input voltage | 12 - 19 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119 mm |
| Depth | 180 mm |
| Height | 30 mm |
| Weight | 750 g |
| Package width | 254 mm |
| Package depth | 196 mm |
| Package height | 77 mm |
| Package weight | 950 g |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
