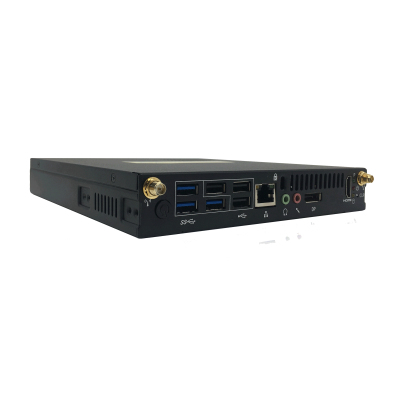

MC-PI5682IL 2.8 GHz Intel® Core™ i5 256 GB SSD 8 GB
Model MC-PI5682ILPart no. DHI-MC-PI5682IL
68 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- OSWindows 10
- Weight1.24 kg
- ColourBlack
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- OS
- Windows 10
- Weight
- 1.24 kg
- Colour
- Black
- Brand
- Dahua Technology
- Category
- Embedded Computer
- Model
- MC-PI5682IL
- Part number
- DHI-MC-PI5682IL
- Also known as
- Dahua Technology MC-PI5682IL 2.8 GHz Intel® Core™ i5 256 GB SSD 8 GB
Specifications
68 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.8 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor model | i5-6400T |
| Processor cores | 4 |
| Processor boost frequency | 2.8 GHz |
| Processor socket | LGA 1151 (Socket H4) |
| Processor cache | 6 MB |
| Bus type | DMI3 |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| SSD interface | M.2 |
| SSD capacity | 256 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 530 |
| Discrete graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Line-out | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel H310C |
| Product colour | Black |
| Number of antenna connectors | 2 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
Power
| Specification | Value |
|---|---|
| Power supply | 95 W |
| Power consumption (standby) | 0.5 W |
| DC input voltage | 12-19 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 194 mm |
| Depth | 180 mm |
| Height | 30 mm |
| Weight | 1.24 kg |
