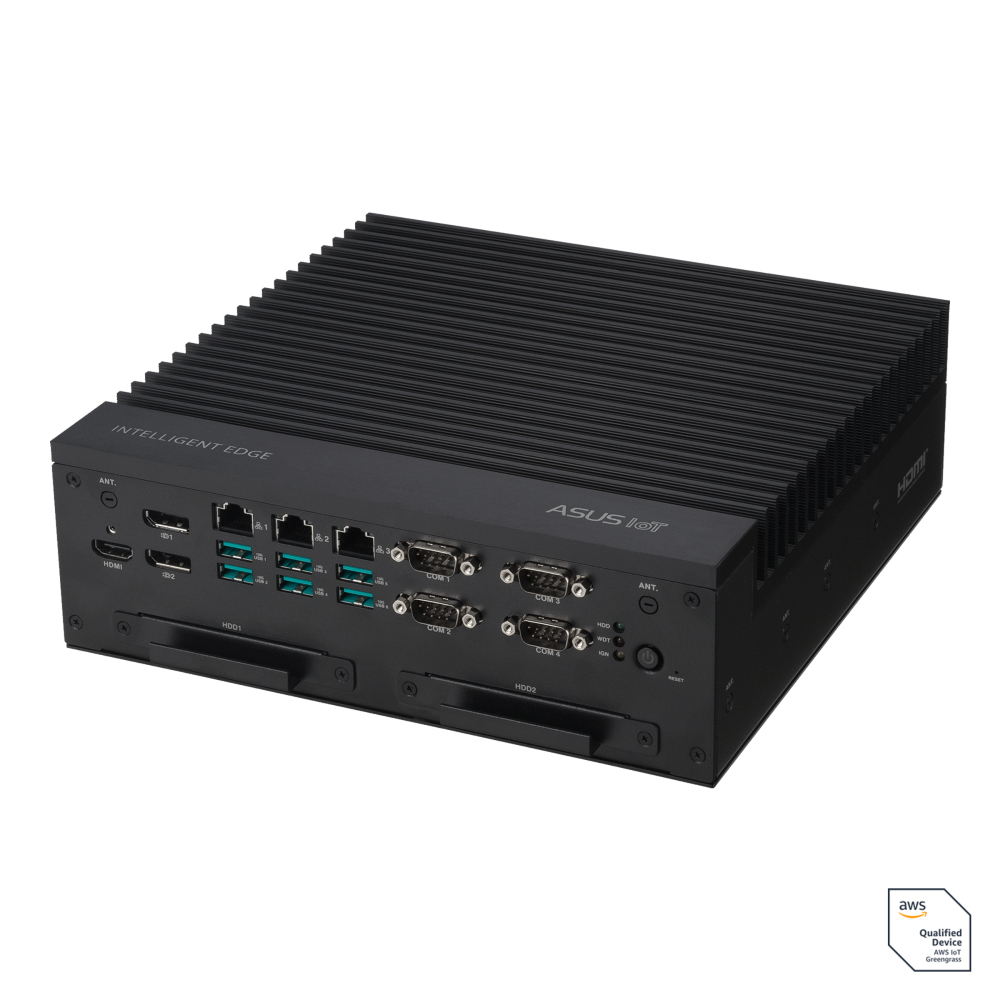

PE5100D-i5-14500T Intel® Core™ i5 HDD+SSD
Model PE5100D-i5-14500TPart no. 90AE01H1-M000S0EAN 199291055490
39 specifications
- ProcessorIntel® Core™ i5
- Processor manufacturerIntel
- Maximum internal memory64 GB
- Storage mediaHDD+SSD
- On-board graphics cardYes
- Wi-FiNo
Overview
- Processor
- Intel® Core™ i5
- Processor manufacturer
- Intel
- Maximum internal memory
- 64 GB
- Storage media
- HDD+SSD
- On-board graphics card
- Yes
- Wi-Fi
- No
- Brand
- ASUS
- Category
- Embedded Computer
- Model
- PE5100D-i5-14500T
- Part number
- 90AE01H1-M000S0
- EAN / UPC
- 199291055490, 4711636055499
- Also known as
- ASUS PE5100D-i5-14500T Intel® Core™ i5 HDD+SSD
Specifications
39 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14500T |
| Processor cores | 14 |
| Processor boost frequency | 4.8 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage media | HDD+SSD |
| Number of storage drives supported | 3 |
| HDD size | 2.5" |
| SSD interface | M.2, PCI Express 4.0 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics 770 |
| Discrete graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| RS‐232/422 port | Yes |
Power
| Specification | Value |
|---|---|
| DC input voltage | 8 - 48 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC; ISED; CE; UKCA; BSMI; CB; CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 242 mm |
| Depth | 241.4 mm |
| Height | 79 mm |
