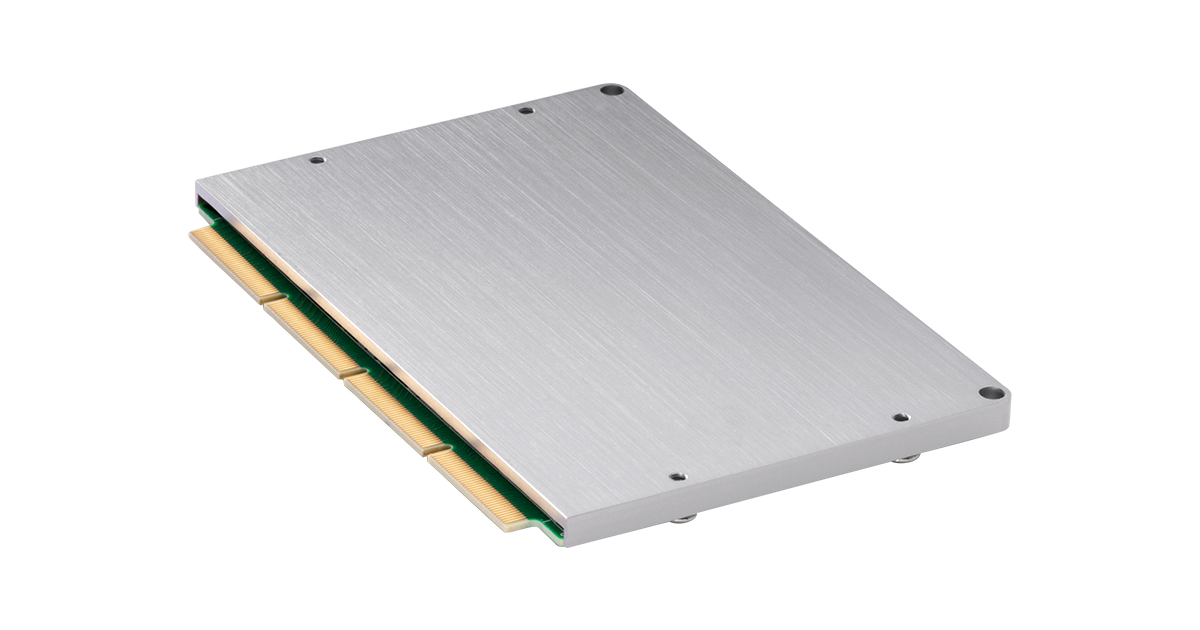

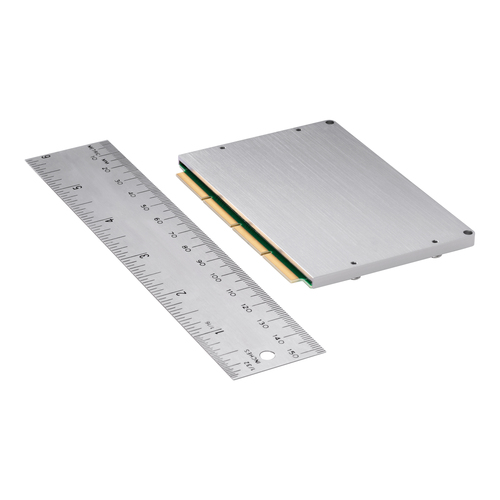

NUC 11 Compute Element CM11EBi38W
Model NUC 11 Compute Element CM11EBi38WPart no. 90AB1EBB-MB4T00
44 specifications
- ProcessorIntel® Core™ i3
- Memory8 GB
- ColourSilver
- Processor manufacturerIntel
- On-board graphics cardNo
- Wi-FiYes
Overview
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Colour
- Silver
- Processor manufacturer
- Intel
- On-board graphics card
- No
- Wi-Fi
- Yes
- Brand
- ASUS
- Category
- Embedded Computer
- Model
- NUC 11 Compute Element CM11EBi38W
- Part number
- 90AB1EBB-MB4T00
- Also known as
- ASUS NUC 11 Compute Element CM11EBi38W Intel® Core™ i3 8 GB
Specifications
44 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 11th gen Intel® Core™ i3 |
| Processor model | i3-1115G4 |
| Processor cores | 2 |
| Processor boost frequency | 4.1 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor threads | 4 |
| Processor lithography | 10 nm |
| Configurable TDP-up frequency | 3 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down frequency | 1.7 GHz |
| Configurable TDP-down | 12 W |
| Memory types supported by processor | LPDDR4x-SDRAM |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | LPDDR4x |
| Memory clock speed | 3733 MHz |
| ECC | No |
| Memory channels | Dual-channel |
| Supported memory types | LPDDR4x-SDRAM |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
| Discrete graphics card | No |
| Number of displays supported | 4 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Thunderbolt 4 ports quantity | 1 |
| DisplayPorts quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 11 | 64-bit* | Windows 10 | 64-bit* | Windows 10 IoT Enterprise* | Red Hat Linux* | Ubuntu 20.04 LTS* |
Processor special features
| Specification | Value |
|---|---|
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel ME Firmware Version | 15 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
