N305S-IM-AA Intel® Core™ i3 SSD
Model N305S-IM-AAPart no. 90ME0701-M0UCY0EAN 4711387285428
29 specifications
- ProcessorIntel® Core™ i3
- Processor manufacturerIntel
- Maximum internal memory16 GB
- Storage mediaSSD
- On-board graphics cardYes
- Wi-FiNo
Overview
- Processor
- Intel® Core™ i3
- Processor manufacturer
- Intel
- Maximum internal memory
- 16 GB
- Storage media
- SSD
- On-board graphics card
- Yes
- Wi-Fi
- No
- Brand
- ASUS
- Category
- Embedded Computer
- Model
- N305S-IM-AA
- Part number
- 90ME0701-M0UCY0
- EAN / UPC
- 4711387285428
- Also known as
- ASUS N305S-IM-AA Intel® Core™ i3 SSD
Specifications
29 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor model | i3-N305 |
| Processor cores | 8 |
| Processor boost frequency | 3.8 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor threads | 8 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 16 GB |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage media | SSD |
| Number of storage drives supported | 2 |
| SSD interface | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card 4K support | Yes |
| Discrete graphics card | No |
| Number of displays supported (on-board graphics) | 3 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |

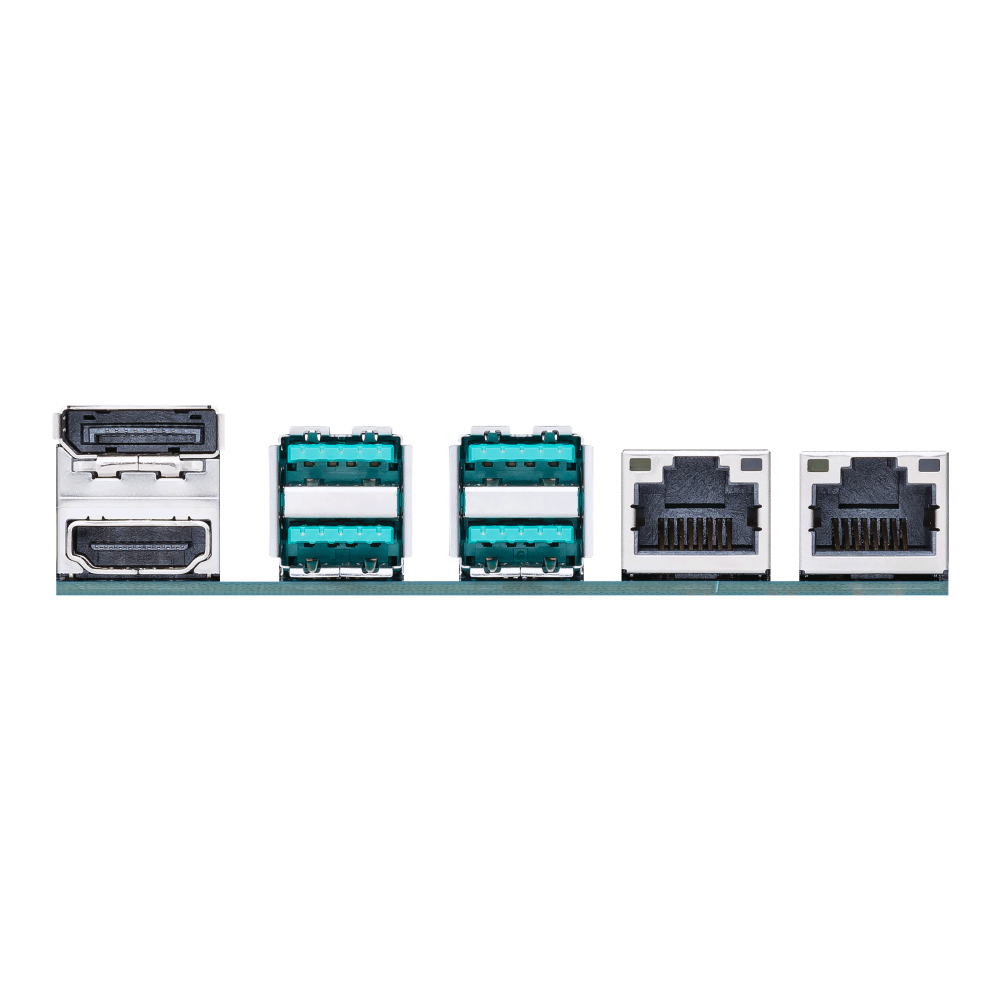

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| DC input voltage | 9 - 36 V |
