C7136ES-IM-AA
1.7 GHz Intel® Core™ i7 HDD+SSD
Model C7136ES-IM-AAPart no. 90ME06Q2-M0UCY0EAN 197105311053
32 specifications
- ProcessorIntel® Core™ i7
- Processor frequency1.7 GHz
- Maximum internal memory64 GB
- Storage mediaHDD+SSD
- On-board graphics cardYes
- Wi-FiNo
Overview
- Processor
- Intel® Core™ i7
- Processor frequency
- 1.7 GHz
- Maximum internal memory
- 64 GB
- Storage media
- HDD+SSD
- On-board graphics card
- Yes
- Wi-Fi
- No
- Brand
- ASUS
- Category
- Embedded Computer
- Model
- C7136ES-IM-AA
- Part number
- 90ME06Q2-M0UCY0
- EAN / UPC
- 197105311053, 4711387311059
- Also known as
- ASUS C7136ES-IM-AA 1.7 GHz Intel® Core™ i7 HDD+SSD
Specifications
32 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.7 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-1365UE |
| Processor cores | 10 |
| Processor boost frequency | 4.9 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor threads | 12 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage media | HDD+SSD |
| Number of storage drives supported | 2 |
| SSD interface | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card 4K support | Yes |
| Discrete graphics card | No |
| Number of displays supported (on-board graphics) | 4 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |

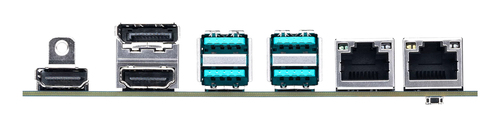

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| DC input voltage | 9 - 36 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
