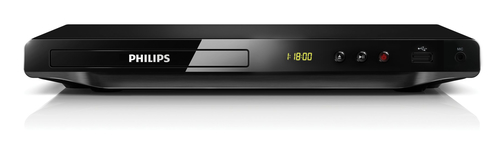

DVD player DVP3680KX/78
Model DVP3680KX/78EAN 8712581643485
70 specifications
- Weight1.05 kg
- ColourBlack
- Progressive scan outputYes
- Audio decodersDolby Digital
- Audio formats supportedMP3, PCM, WMA
- HDMI ports quantity1
Overview
- Weight
- 1.05 kg
- Colour
- Black
- Progressive scan output
- Yes
- Audio decoders
- Dolby Digital
- Audio formats supported
- MP3, PCM, WMA
- HDMI ports quantity
- 1
- Brand
- Philips
- Category
- DVD/Blu-Ray Players
- Model
- DVP3680KX/78
- Part number
- DVP3680KX/78
- EAN / UPC
- 8712581643485
- Also known as
- Philips DVD player DVP3680KX/78
Specifications
70 specifications in 15 groups
Video
| Specification | Value |
|---|---|
| Progressive scan output | Yes |
| Analog signal format system | NTSC, PAL |
| Supported video modes | 720p, 1080i, 1080p |
| Video upscaling | Yes |
| Video D/A Converter (DAC) | 12-bit/108MHz |
Audio
| Specification | Value |
|---|---|
| Audio decoders | Dolby Digital |
| Signal-to-Noise Ratio (SNR) | 90 dB |
| MP3 bit rates | 32 - 320 Kbit/s |
| Crosstalk (1kHz) | 70 dB |
| Distortion and noise (1kHz) | 65 dB |
| Dynamic range (1kHz) | 80 dB |
| Sound enhancement technology | Night Mode |
| Audio D/A Converter (DAC) | 24-bit/192kHz |
File formats
| Specification | Value |
|---|---|
| Video formats supported | AVI, DIVX, MPEG, MPEG1, MPEG2, MPG, XVID |
| Audio formats supported | MP3, PCM, WMA |
| Image formats supported | JPG |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Composite video out | 1 |
| Digital audio optical out | 0 |
| Digital audio coaxial out | 1 |
| Audio (L/R) out | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Microphone in | Yes |
Storage
| Specification | Value |
|---|---|
| Playback disc formats | SVCD, VCD |
| Playback disc types | CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Card reader integrated | No |
Technical details
| Specification | Value |
|---|---|
| Device type | DVD player |
| 3D | No |
| Product colour | Black |
| Karaoke | Yes |
| Consumer Electronics Control (CEC) | EasyLink |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | English, Spanish, Portuguese |
| Gross weight of outer carton | 1.55 kg |
| Height (cm) outer carton | 8 cm |
| Length (cm) outer carton | 36 cm |
| Net weight of outer carton | 1.2 kg |
| Packaging net weight | 1.2 kg |
| Packaging tare weight | 0.35 kg |
| Quantity outer carton | 1 pc(s) |
| Tare weight outer carton | 0.35 kg |
| Width (cm) outer carton | 28.2 cm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 310 mm |
| Depth | 226 mm |
| Height | 40.5 mm |
| Weight | 1.05 kg |
Hard drive
| Specification | Value |
|---|---|
| Built-in HDD | No |
TV tuner
| Specification | Value |
|---|---|
| TV tuner integrated | No |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, AV, HDMI |
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 360 mm |
| Package depth | 80 mm |
| Package height | 282 mm |
| Package weight | 1.55 kg |
| Package dimensions (WxDxH) | 36 x 8 x 28.2 mm |
Other features
| Specification | Value |
|---|---|
| Compatible battery sizes | AAA |
| Dimensions (WxDxH) | 31 x 22.6 x 4.05 mm |
| Number of batteries supported | 1 |
Security
| Specification | Value |
|---|---|
| Child lock | Yes |
| Parental control | Yes |
