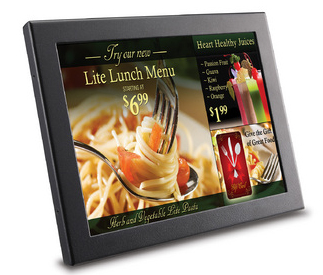

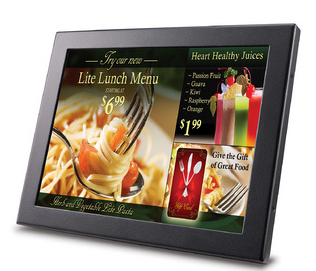

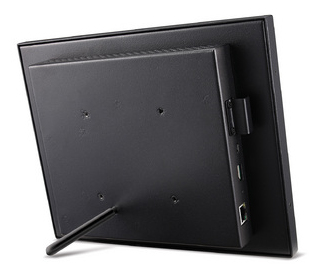

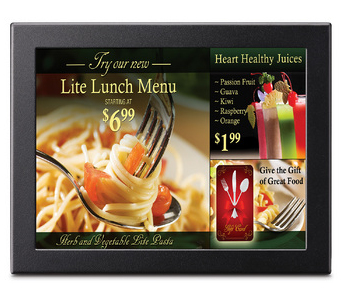

EP1020r digital photo frame Black
26.4 cm (10.4")
Model EP1020rPart no. EP1020REAN 151903100059
45 specifications
- Display26.4 cm (10.4")
- Resolution800 x 600 pixels
- ConnectivityUSB 1.1
- Weight1.8 kg
- ColourBlack
- Image formats supportedBMP, JPG
Overview
- Display
- 26.4 cm (10.4")
- Resolution
- 800 x 600 pixels
- Connectivity
- USB 1.1
- Weight
- 1.8 kg
- Colour
- Black
- Image formats supported
- BMP, JPG
- Brand
- Viewsonic
- Category
- Digital Photo Frame
- Model
- EP1020r
- Part number
- EP1020R
- EAN / UPC
- 151903100059, 172302679410, 766907476019
- Also known as
- Viewsonic EP1020r digital photo frame Black 26.4 cm (10.4")
Specifications
45 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 26.4 cm (10.4") |
| Display resolution | 800 x 600 pixels |
| Display | LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 400:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Aspect ratio | 4:3 |
| Display number of colours | 16.78 million colours |
| Response time | 8 ms |
File formats
| Specification | Value |
|---|---|
| Image formats supported | BMP, JPG |
| Video formats supported | DIVX, MPEG1, MPEG4 |
| Audio formats supported | LPCM |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | CF |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 1.1 |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Headphone outputs | 1 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 6 W |
Features
| Specification | Value |
|---|---|
| Video playback | Yes |
| Product colour | Black |
| Adjustable stand | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (typical) | 24 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3.2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 251 mm |
| Depth | 43 mm |
| Height | 198 mm |
| Weight | 1.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.4 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, ICES 003, CE |
Other features
| Specification | Value |
|---|---|
| Built-in memory capacity | 2 GB |
| Networking features | Fast Ethernet |
| USB ports quantity | 1 |
