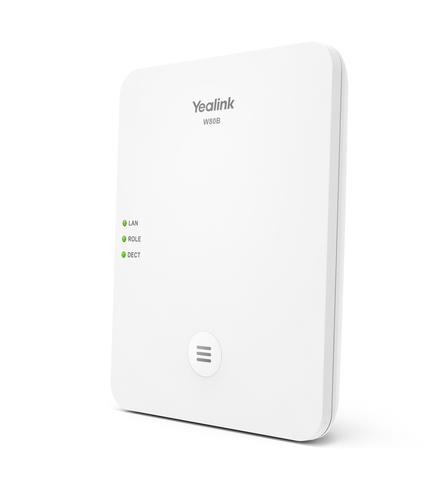

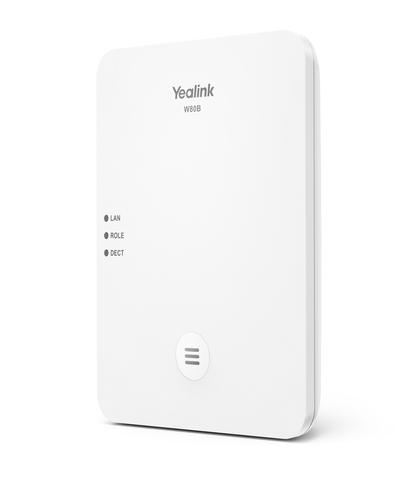

W80B-DM DECT base station White
Model W80B-DM
65 specifications
- Weight2.56 kg
- ColourWhite
- Number of handsets supported (max)30
- Conference callYes
- Input voltage100 - 240 V
- Operating relative humidity (H-H)10 - 95%
Overview
- Weight
- 2.56 kg
- Colour
- White
- Number of handsets supported (max)
- 30
- Conference call
- Yes
- Input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 10 - 95%
- Brand
- Yealink
- Category
- DECT Base Station
- Model
- W80B-DM
- Part number
- W80B-DM
- Also known as
- Yealink W80B-DM DECT base station White
Specifications
65 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Number of handsets supported (max) | 30 |
| Frequency range | 1.8 - 1.9 GHz |
| Maximum range | 300 m |
| Comfort noise generation (CNG) | Yes |
| Voice activity detection | Yes |
| CAT-iq | 2.0 |
| Number of VoIP accounts | 100 |
| Supported network protocols | SNTP/NTP, VLAN, SIP v1, SIP v2, UDP/TCP/TLS, DHCP |
| Security algorithms | HTTPS, SHA-256, SRTP, SSL/TLS |
| DECT standards | CAT-iq2.0 |
| Voice codecs | AJB, CNG, G.726, G.729, PLC, VAD, iLBC |
| Hearing aid compatibility | Yes |
| Dual-Tone Multi-Frequency (DTMF) | Yes |
| Auto-provision | Yes |
| IPUI registration | Yes |
| Keypad lock | Yes |
| Music on hold function | Yes |
| Over the Air Updates (OTA) | Yes |
| User access level | Yes |
| XML browser | Yes |
Call management
| Specification | Value |
|---|---|
| Conference call | Yes |
| Number of parallel conferences | 3 |
| Phonebook capacity (per handset) | 100 entries |
| Number of simultaneous calls (max) | 100 |
| Number of NB calls per base supported (max) | 8 |
| Number of WB calls per base supported (max) | 8 |
| Number of simultaneous calls per handset | 2 |
| Anonymous call | Yes |
| Anonymous call rejection | Yes |
| Call waiting | Yes |
| Call forwarding | Yes |
| Caller ID | Yes |
| Remote phonebook | Yes |
| Call transfer | Yes |
| Call hold | Yes |
| Switching between calls | Yes |
| Speed dialling | Yes |
| Message Waiting Indication (MWI) function | Yes |
| Phonebook search/import/export function | Yes |
| Call history | Yes |
| Reset function | Yes |
| Emergency call | Yes |
| Shared Call Appearance (SCA) | Yes |
| System log export | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Full duplex | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Output current | 1.2 A |
| Output voltage | 5 V |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 100 x 25.1 x 130 mm |
| Weight | 2.56 kg |
| Package width | 174 mm |
| Package depth | 63 mm |
| Package height | 180 mm |
| Package weight | 3.13 kg |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Quick start guide | Yes |
| Power adapter included | Yes |
