OU5PE40SM + HE604070FB

Model OU5PE40SM + HE604070FBPart no. 801418970EAN 7332543938568

92 specifications

Overview

Brand: AEG
Category: Cooking Appliance Set
Model: OU5PE40SM + HE604070FB
Part number: 801418970
EAN / UPC: 7332543938568
Also known as: AEG OU5PE40SM + HE604070FB cooking appliance set Ceramic hob Electric

92 specifications in 5 groups

Specification	Value

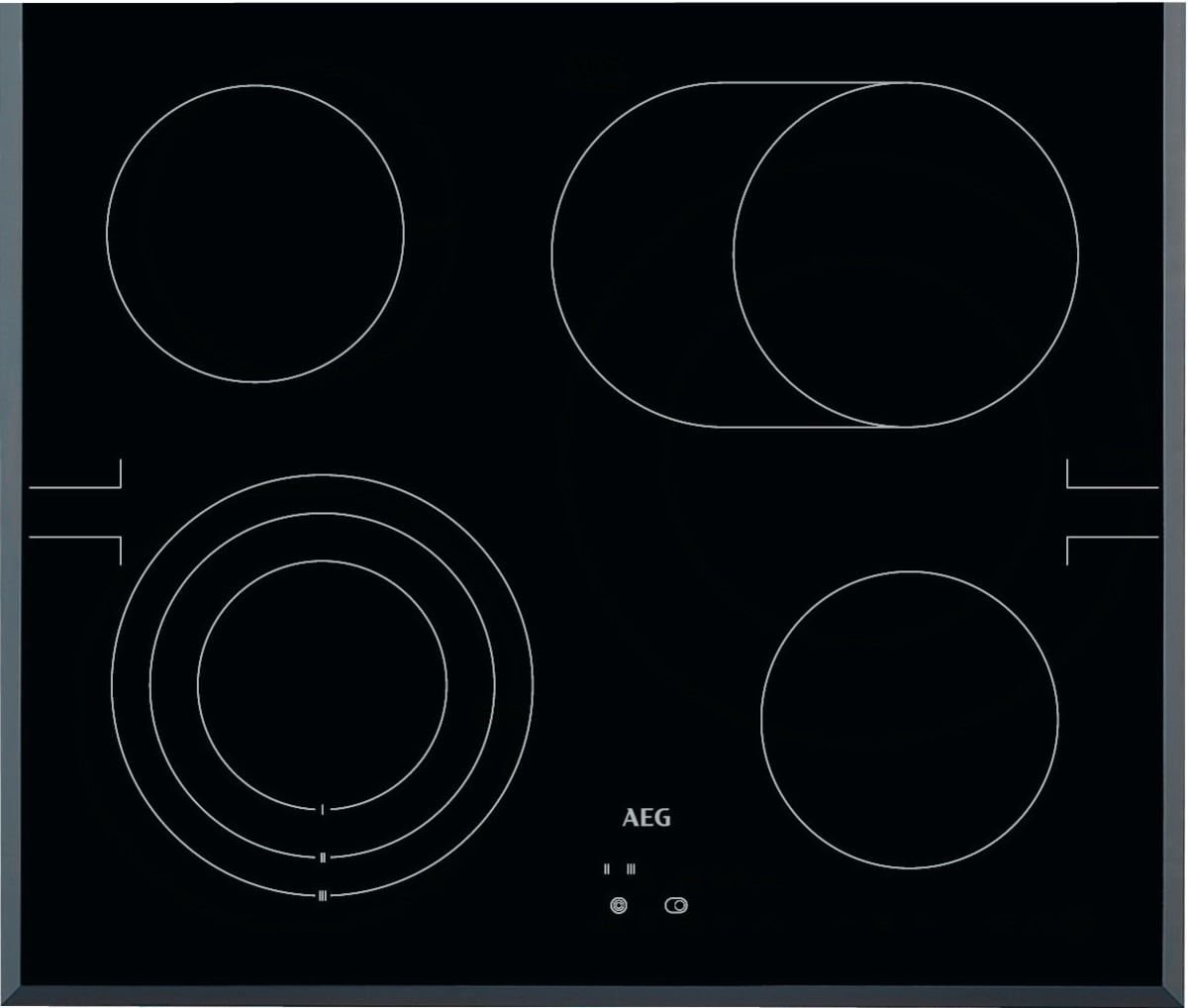

Hob type	Ceramic hob
Number of cooking zones	4 zone(s)
Top surface type	Glass
Hob colour	Black
Number of electric cooking zones	4 zone(s)
Cooking zone 1 type	Large
Cooking zone 1 shape	Round
Cooking zone 1 position	Central front left
Cooking zone 1 diameter	120 mm
Cooking zone 1 size (W x D)	175 x 210 mm
Cooking zone 1 power	800 W
Cooking zone 1 boost	2300 W
Cooking zone 2 type	Small
Cooking zone 2 shape	Round
Cooking zone 2 position	Left rear
Cooking zone 2 diameter	145 mm
Cooking zone 2 power	1200 W
Cooking zone 3 type	Small
Cooking zone 3 shape	Round
Cooking zone 3 position	Right front
Cooking zone 3 diameter	145 mm
Cooking zone 3 power	1200 W
Cooking zone 4 type	Dual zone
Cooking zone 4 shape	Round
Cooking zone 4 position	Right rear
Cooking zone 4 size (W x D)	170 x 265 mm
Cooking zone 4 power	1500 W
Cooking zone 4 boost	2400 W
Hob display	Yes
Hob control type	Touch
Hob control position	Top / Front
Residual heat indicator	Yes
Frame form	Full trim
Frame colour	Black
Hob connected load (electric)	7100 W
Hob input voltage	220 - 240 V
Hob width	62 cm
Hob depth	52 cm
Hob height	3.8 cm
Hob weight	7.2 kg
Hob installation compartment width	56 cm
Hob installation compartment depth	49 cm
Hob installation compartment height	3.8 cm
Hob package width	67.8 cm
Hob package depth	60 cm
Hob package height	11.8 cm
Hob package weight	8.06 kg

Specification	Value
Oven type	Electric
Oven net capacity	72 L
Oven colour	Stainless steel
Oven control type	Rotary, Touch
Oven display	Yes
Integrated clock	Yes
Clock type	Electronic
Timer	Yes
Timer type	Digital
Self-cleaning	Yes
Cleaning type	Pyrolytic
Temperature (min)	30 °C
Temperature (max)	300 °C
Door hinge	Down
Interior light	Yes
Lamp type	Halogen
Lamps quantity	1 lamp(s)
Bulb power	40 W
Child lock	Yes
Energy efficiency class (oven)	A++
Energy efficiency scale (oven)	A+++ to D
Energy consumption (forced convection)	0.52 kWh
Energy consumption (conventional)	0.93 kWh
Connected load	11090 W
Oven power	3480 W
Top and bottom heating	Yes
Bottom heating	Yes
Grill	Yes
Grill power	2300 W
Defrost function	Yes
Number of auto cooking programs	45
Cooling fan	Yes
Interior material	Enamel
Effective tray surface area	1424 cm²
Oven width	59.4 cm
Oven depth	56.8 cm
Oven height	59.4 cm
Oven weight	30.5 kg
Oven installation compartment width	56 cm
Oven installation compartment depth	55 cm
Oven installation compartment height	60 cm
Oven package weight	31.5 kg

Specification	Value
AEG technologies (cooking)	Automatic programmes, EXPlore LED Display, Hot air, SurroundCook

Specification	Value
Country of origin	Germany

Specification	Value
Baking tray	Yes
